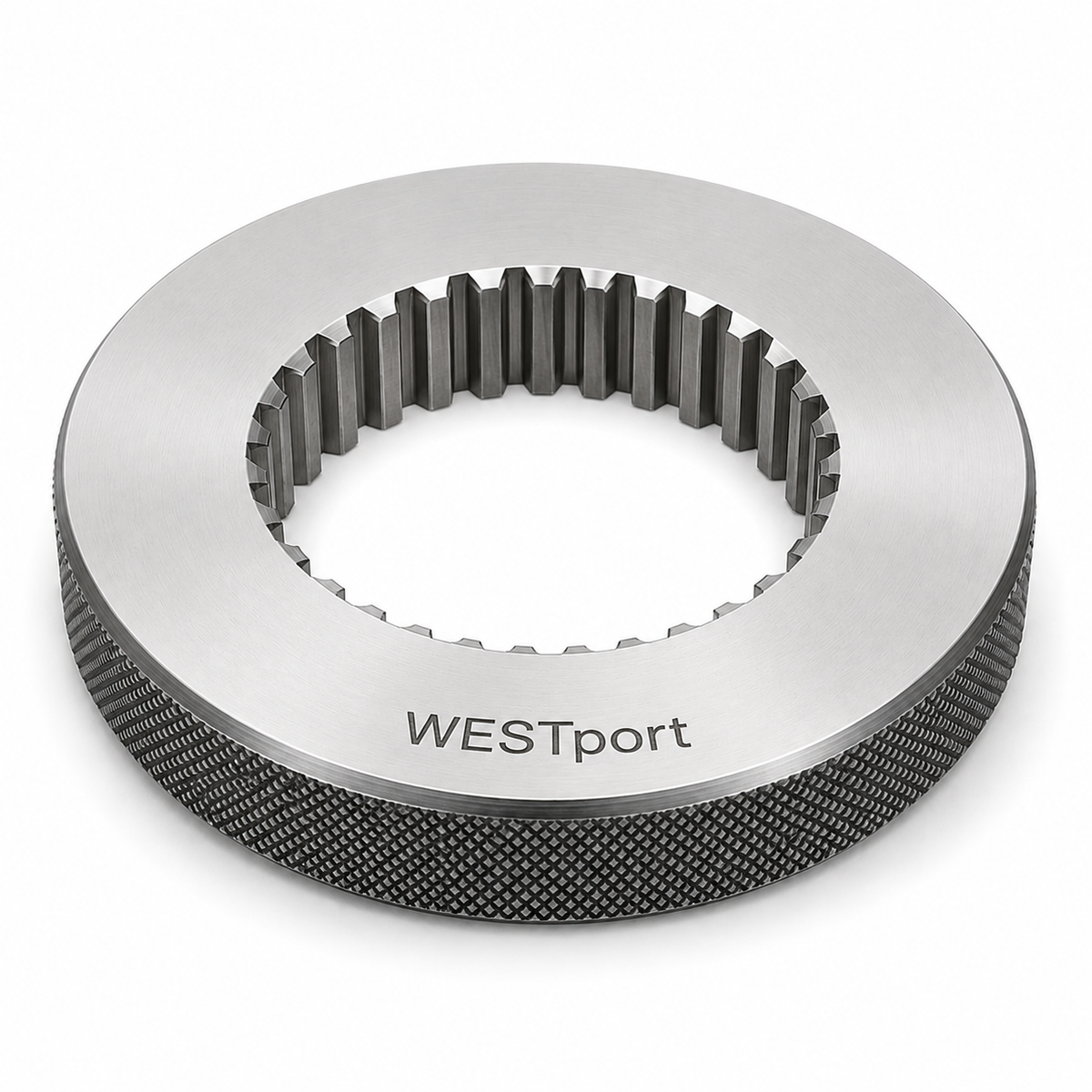

Serration Spline Ring Gage
Serration Spline Ring Gage
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Quantity
Couldn't load pickup availability
WESTport serration ring gages inspect external serrations on shafts and fittings, confirming that the serrated form will engage its mating component correctly. Serrations use multiple equally spaced teeth for positive engagement, and the ring gage verifies the whole form in one functional check.
Standards & setup
Built to SAE J498 and DIN serration standards, or to your drawing. Provide the engineering specification, number of teeth, tooth dimensions and class of fit. Compatible with taper master plug gages for setup, and with spline master gears where a functional master is required.
Certification & quality
- Designed, ground, and hand lapped in-house for accuracy and long service life
- Certificate of Accuracy, NIST-traceable — included with every gage
- Calibrated in our ISO/IEC 17025 accredited laboratory; Long Form Certificate available on a 5–7 business day turnaround
Request a quote, or inspect internal serrations with the Serration Spline Plug Gage.
Specifications
| Gage Type | Serration ring gage |
|---|---|
| Measurement Mode | GO / NO GO |
| Spline Profile | Serration |
| Diameter Range | 5 mm–500 mm (3/16"–20") |
| Number of Teeth | Up to 550 |
| What It Inspects | External serrations — functional fit |
| Material | Gage steel 62/63C (HSS or tungsten carbide optional) |
| Hardness | 62–63 HRC |
| Certification | NIST-traceable Certificate of Accuracy included with every gage. |
| Standards | SAE J498, DIN serration standards, or customer print |
| Lead Time | 2–4 weeks typical |
