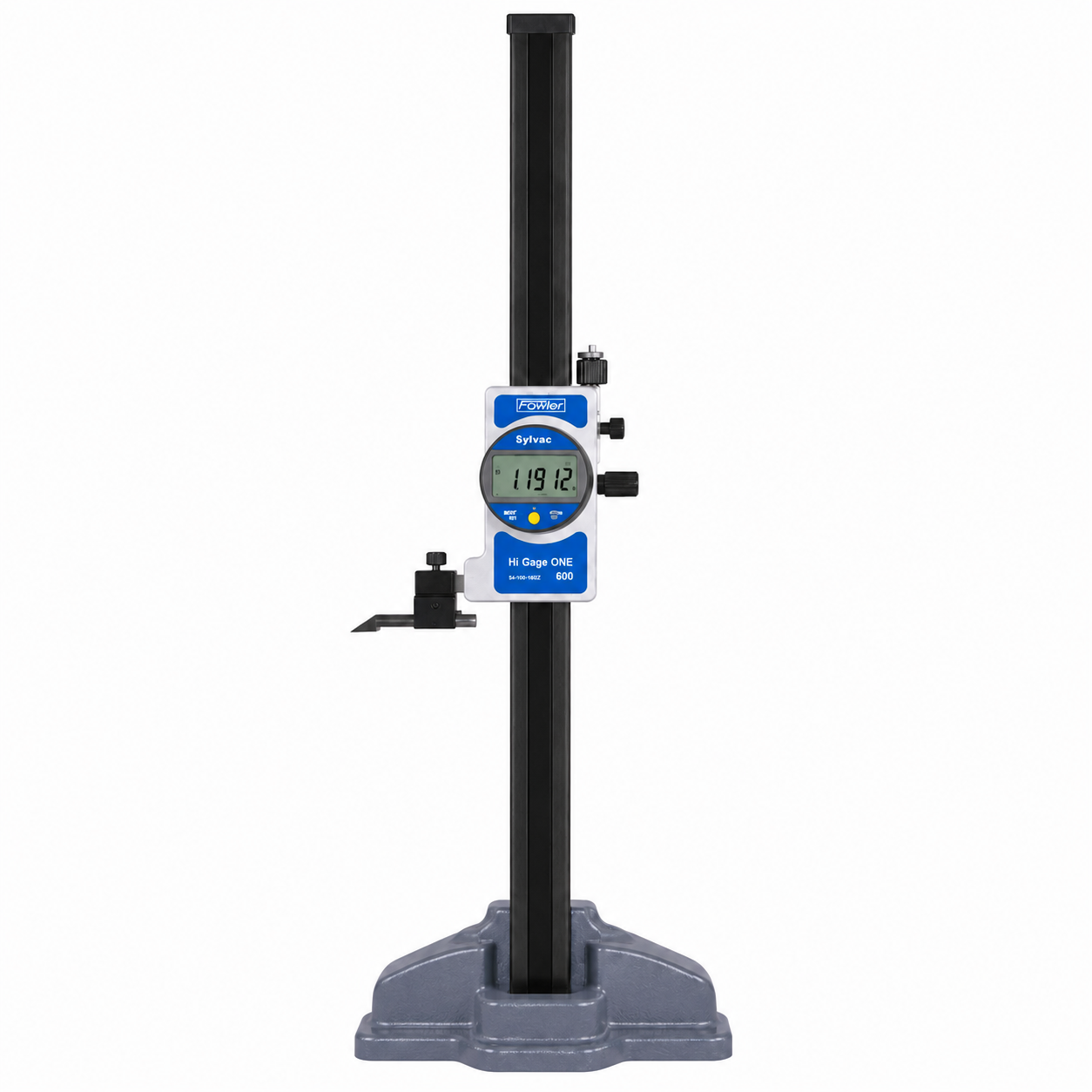

Fowler-Sylvac Hi_Gage One Electronic Height Gage — 24"
Fowler-Sylvac Hi_Gage One Electronic Height Gage — 24"
Part #:54-212-024-1
Couldn't load pickup availability
Key Features
- 0–24" / 600 mm measuring range
- Swiss Sylvac electronic measuring technology
- Scale resistant to oil, dust, chips, magnetism and shock
- Direct RS-232 output
- Fast measuring carriage movement
- Inch/metric conversion
- Diameter measurement capability
- Slot-width measurement capability
- Probe-size memory and directional sensing
- Customizable through software
Overview
The Fowler-Sylvac Hi_Gage One is a premium electronic height gage built for demanding production and quality-control environments.
Shop-Floor Durability
Its electronic measuring scale is designed to resist the effects of oil, dust, chips, magnetism and shock, making it well suited to manufacturing environments where a conventional exposed measuring system needs extra care.
Beyond Height Measurement
Probe-size memory and directional sensing give the Hi_Gage One diameter and slot-width measurement capability, extending its usefulness past basic height measurement. Direct RS-232 output feeds compatible data-collection systems, and the gage can be customized through software.
Applications
Production and quality-control inspection where a shop-hardened measuring system and multi-feature measurement are both required.
Specifications
| Manufacturer | Fowler / Sylvac |
|---|---|
| Model | Hi_Gage One |
| Part Number | 54-212-024-1 |
| Measuring Range | 0–24" / 0–600 mm |
| Resolution | .0005" / 0.01 mm |
| Repeatability | .0004" / 10 µm |
| Measuring System | Swiss Sylvac electronic scale — resistant to oil, dust, chips, magnetism and shock |
| Data Output | Direct RS-232 output |
| Additional Measurement | Diameter and slot width via probe-size memory and directional sensing |
