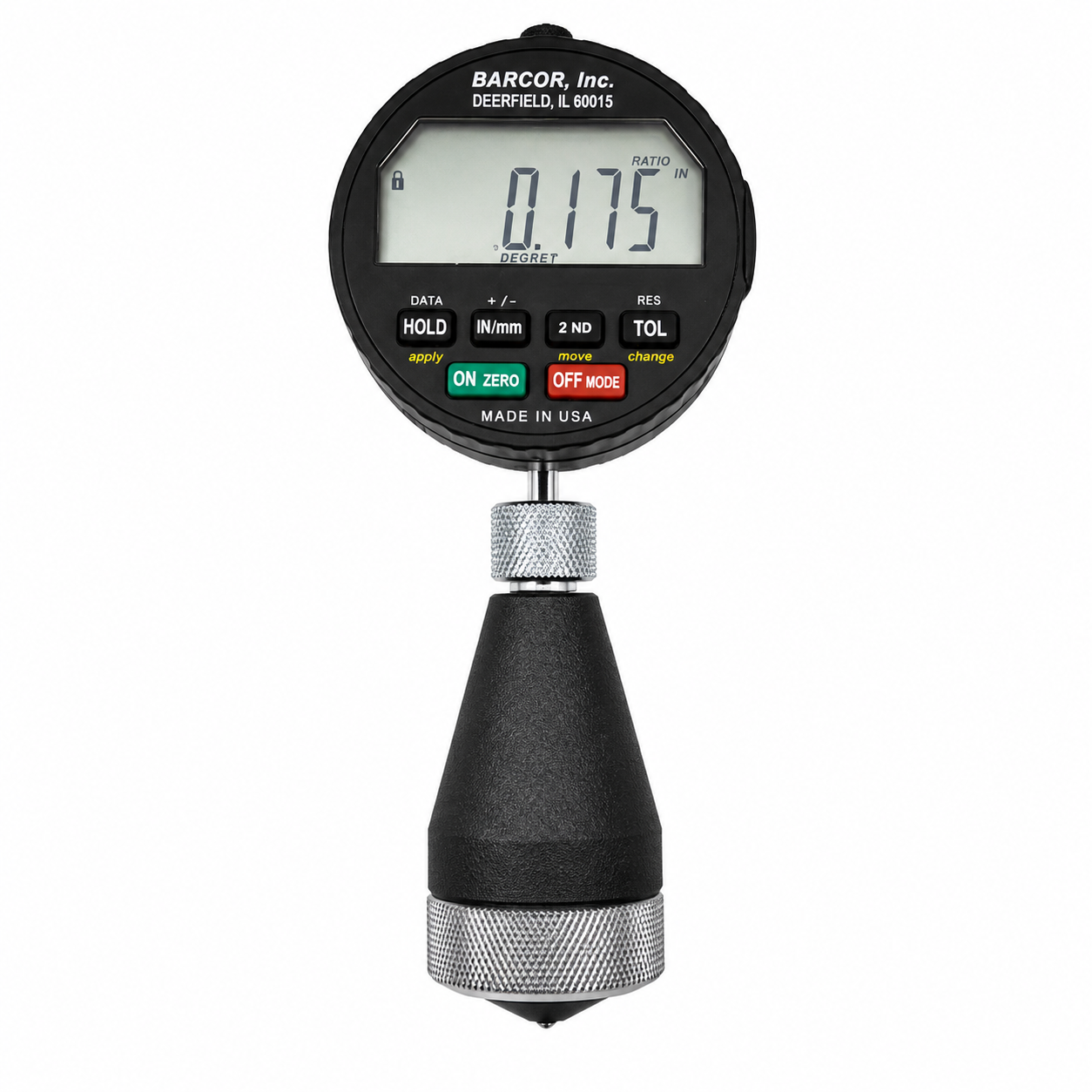

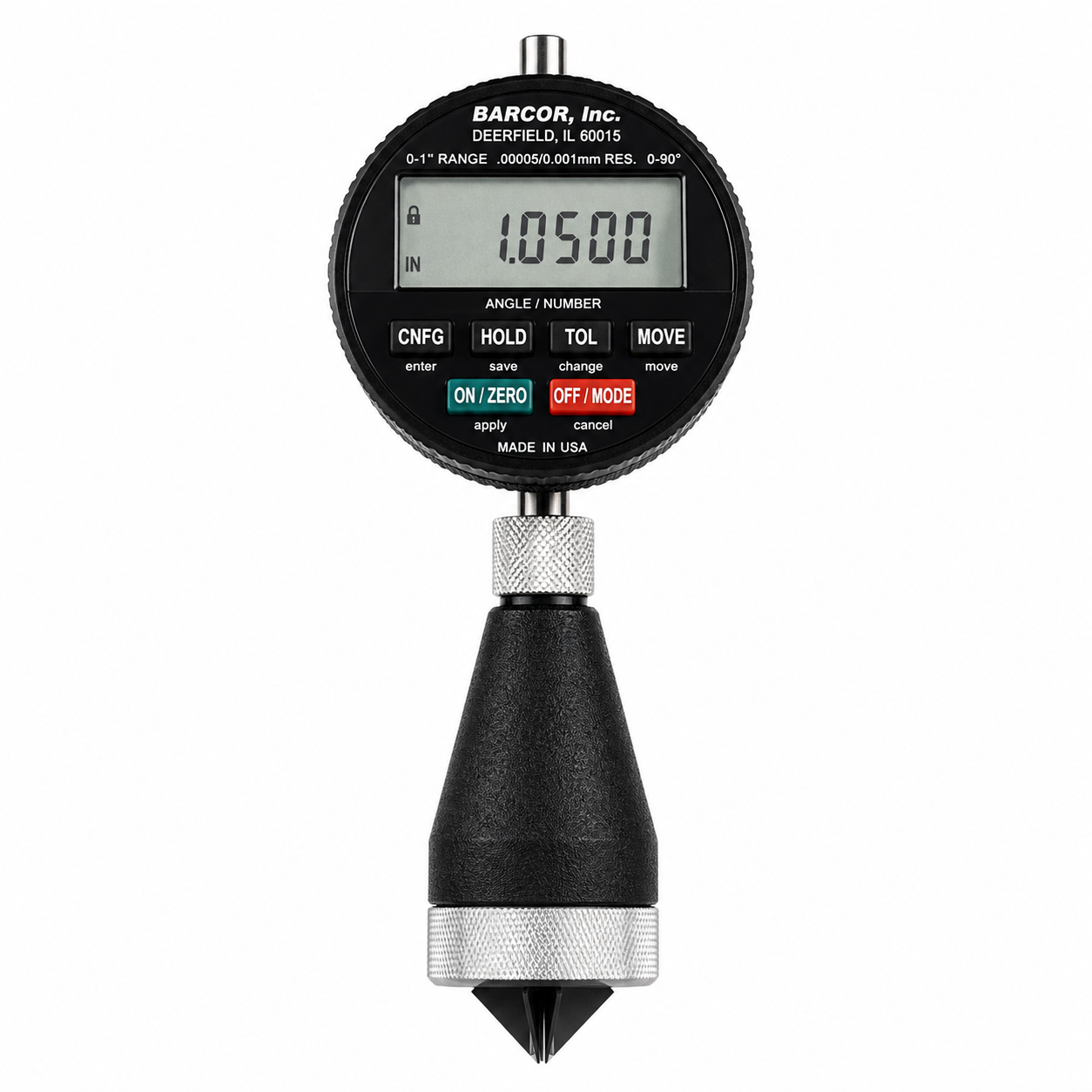

Barcor 1090-SPC Electronic Chamfer Gage — 0–1", 0–90°
Barcor 1090-SPC Electronic Chamfer Gage — 0–1", 0–90°
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Part #:1090-SPC
Quantity
Couldn't load pickup availability
Key Features
- Electronic digital display
- 0–1" measuring range
- 0–90° chamfer applications
- Faster reading than conventional scale interpretation
- Excellent for modern QC environments
- Appropriate for SPC-oriented inspection
Overview
Electronic chamfer gage combining direct chamfer-diameter measurement with a digital indicator for users who prefer electronic readout and SPC-oriented inspection.
Position: digital/premium alternative.
Dial or Electronic
If a dial readout is sufficient, the Barcor 1090 is the same gage without the electronics.
Calibration
WESTport is a precision gaging and metrology company, not only a gage supplier. Calibration, recertification and recall-interval support are available from our own calibration department — see hard gage calibration and dimensional inspection, calibration and repair, or contact us for scope and turnaround.
Specifications
| Manufacturer | Barcor Gages — Deerfield, Illinois |
|---|---|
| Model | 1090-SPC |
| Capacity | 0-1" / 0-25 mm |
| Included Angle Range | 0-90° |
| Measures | Top (major) diameter of a chamfer, countersink or tapered hole |
| Resolution | .0002" / .005 mm, switchable |
| Accuracy | ±.001" |
| Readout | Electronic indicator, inch/metric switchable |
| Data Output | SPC output for statistical process control |
| Plunger | Spring-loaded, exact-angle gaging plunger |
| Setting Master | Not required |
| Options | Solid carbide plunger with lifetime warranty (-CF) · NIST certification letter |
