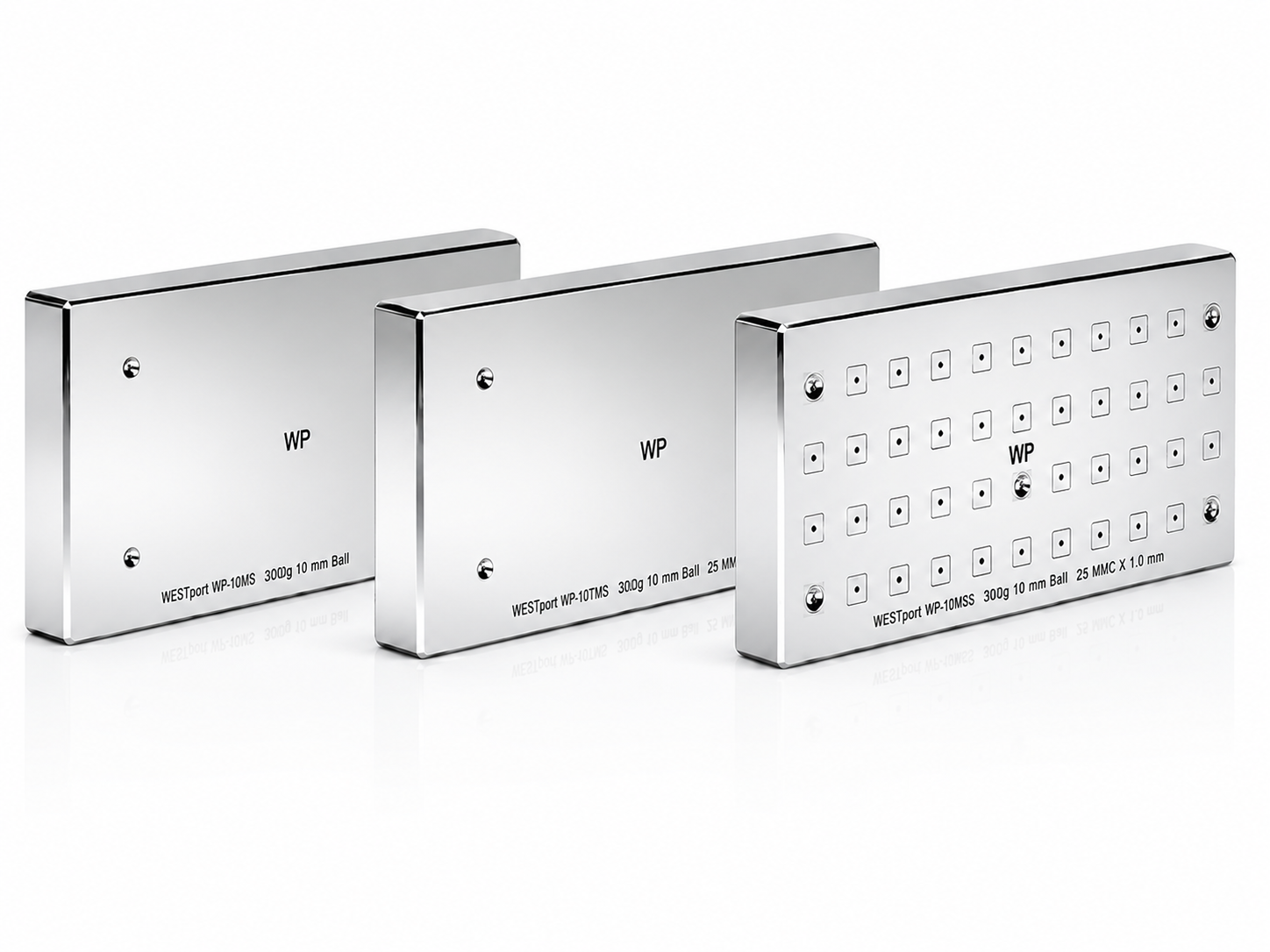

Brinell Test Block
Brinell Test Block
Part #:HB3000-140
Couldn't load pickup availability
Features
- Lifetime Guarantee
- Compliant with the latest Brinell ASTM E10 Brinell Revisions
- Brinell Test block surface is lapped and polished providing superior testing accuracy
- Special heat treat process insures maximum consistency and repeatability
- Brinell test blocks certified in our ISO/IEC 17025 accredited laboratory
- Easy to read grain free surface
- Highest quality de-carb free tool steel and aluminum
- In stock for immediate delivery
- ISO 6506 Accredited
- Test measurement equipment is calibrated and traceable to NIST
- Free long form test block certificate with NIST traceability
Available Products
| Load | Range | SKU | Price | |
|---|---|---|---|---|
| 3000 kg | 140 - 160 | HB3000-140 | $187.00 |
|
| 3000 kg | 160 - 175 | HB3000-160 | $187.00 |
|
| 3000 kg | 175 - 200 | HB3000-180 | $187.00 |
|
| 3000 kg | 200 - 225 | HB3000-200 | $187.00 |
|
| 3000 kg | 225 - 250 | HB3000-220 | $187.00 |
|
| 3000 kg | 250 - 275 | HB3000-240 | $187.00 |
|
| 3000 kg | 275 - 300 | HB3000-260 | $187.00 |
|
| 3000 kg | 300 - 325 | HB3000-300 | $187.00 |
|
| 3000 kg | 325 - 350 | HB3000-320 | $187.00 |
|
| 3000 kg | 350 - 375 | HB3000-340 | $187.00 |
|
| 3000 kg | 375 - 400 | HB3000-360 | $187.00 |
|
| 3000 kg | 400 - 425 | HB3000-400 | $187.00 |
|
| 3000 kg | 425 - 450 | HB3000-420 | $187.00 |
|
| 3000 kg | 450 - 475 | HB3000-440 | $187.00 |
|
| 3000 kg | 475 - 500 | HB3000-460 | $187.00 |
|
| 3000 kg | 500 - 600 | HB3000-500 | $187.00 |
|
| 2000 kg | 80 | HB2000-80 | $187.00 |
|
| 2000 kg | 100 | HB2000-100 | $187.00 |
|
| 2000 kg | 120 | HB2000-120 | $187.00 |
|
| 2000 kg | 140 | HB2000-140 | $187.00 |
|
| 2000 kg | 160 | HB2000-160 | $187.00 |
|
| 2000 kg | 180 | HB2000-180 | $187.00 |
|
| 2000 kg | 200 | HB2000-200 | $187.00 |
|
| 2000 kg | 220 | HB2000-220 | $187.00 |
|
| 2000 kg | 240 | HB2000-240 | $187.00 |
|
| 2000 kg | 260 | HB2000-260 | $187.00 |
|
| 2000 kg | 280 | HB2000-280 | $187.00 |
|
| 2000 kg | 300 | HB2000-300 | $187.00 |
|
| 2000 kg | 320 | HB2000-320 | $187.00 |
|
| 2000 kg | 340 | HB2000-340 | $187.00 |
|
| 2000 kg | 360 | HB2000-360 | $187.00 |
|
| 2000 kg | 380 | HB2000-380 | $187.00 |
|
| 2000 kg | 400 | HB2000-400 | $187.00 |
|
| 2000 kg | 420 | HB2000-420 | $187.00 |
|
| 2000 kg | 440 | HB2000-440 | $187.00 |
|
| 2000 kg | 460 | HB2000-460 | $187.00 |
|
| 2000 kg | 480 | HB2000-480 | $187.00 |
|
| 2000 kg | 500 | HB2000-500 | $187.00 |
|
| 2000 kg | 540 | HB2000-540 | $187.00 |
|
| 1500 kg | 140 | HB1500-140 | $187.00 |
|
| 1500 kg | 160 | HB1500-160 | $187.00 |
|
| 1500 kg | 180 | HB1500-180 | $187.00 |
|
| 1500 kg | 200 | HB1500-200 | $187.00 |
|
| 1500 kg | 220 | HB1500-220 | $187.00 |
|
| 1500 kg | 240 | HB1500-240 | $187.00 |
|
| 1500 kg | 260 | HB1500-260 | $187.00 |
|
| 1500 kg | 280 | HB1500-280 | $187.00 |
|
| 1500 kg | 300 | HB1500-300 | $187.00 |
|
| 1500 kg | 320 | HB1500-320 | $187.00 |
|
| 1500 kg | 340 | HB1500-340 | $187.00 |
|
| 1500 kg | 360 | HB1500-360 | $187.00 |
|
| 1500 kg | 380 | HB1500-380 | $187.00 |
|
| 1500 kg | 400 | HB1500-400 | $187.00 |
|
| 1500 kg | 420 | HB1500-420 | $187.00 |
|
| 1500 kg | 440 | HB1500-440 | $187.00 |
|
| 1500 kg | 460 | HB1500-460 | $187.00 |
|
| 1500 kg | 480 | HB1500-480 | $187.00 |
|
| 1500 kg | 500 | HB1500-500 | $187.00 |
|
| 1500 kg | 540 | HB1500-540 | $187.00 |
|
| 1000 kg | 40 | HB1000-40 | $187.00 |
|
| 1000 kg | 60 | HB1000-60 | $187.00 |
|
| 1000 kg | 80 | HB1000-80 | $187.00 |
|
| 1000 kg | 100 | HB1000-100 | $187.00 |
|
| 1000 kg | 120 | HB1000-120 | $187.00 |
|
| 1000 kg | 140 | HB1000-140 | $187.00 |
|
| 1000 kg | 160 | HB1000-160 | $187.00 |
|
| 1000 kg | 180 | HB1000-180 | $187.00 |
|
| 1000 kg | 200 | HB1000-200 | $187.00 |
|
| 1000 kg | 220 | HB1000-220 | $187.00 |
|
| 1000 kg | 240 | HB1000-240 | $187.00 |
|
| 1000 kg | 260 | HB1000-260 | $187.00 |
|
| 1000 kg | 280 | HB1000-280 | $187.00 |
|
| 1000 kg | 300 | HB1000-300 | $187.00 |
|
| 1000 kg | 320 | HB1000-320 | $187.00 |
|
| 1000 kg | 340 | HB1000-340 | $187.00 |
|
| 1000 kg | 360 | HB1000-360 | $187.00 |
|
| 1000 kg | 380 | HB1000-380 | $187.00 |
|
| 1000 kg | 400 | HB1000-400 | $187.00 |
|
| 1000 kg | 420 | HB1000-420 | $187.00 |
|
| 1000 kg | 440 | HB1000-440 | $187.00 |
|
| 1000 kg | 460 | HB1000-460 | $187.00 |
|
| 1000 kg | 480 | HB1000-480 | $187.00 |
|
| 1000 kg | 500 | HB1000-500 | $187.00 |
|
| 1000 kg | 540 | HB1000-540 | $187.00 |
|
| 750 kg | 60 | HB750-60 | $187.00 |
|
| 750 kg | 80 | HB750-80 | $187.00 |
|
| 750 kg | 100 | HB750-100 | $187.00 |
|
| 750 kg | 120 | HB750-120 | $187.00 |
|
| 750 kg | 140 | HB750-140 | $187.00 |
|
| 750 kg | 160 | HB750-160 | $187.00 |
|
| 750 kg | 180 | HB750-180 | $187.00 |
|
| 750 kg | 200 | HB750-200 | $187.00 |
|
| 750 kg | 220 | HB750-220 | $187.00 |
|
| 750 kg | 240 | HB750-240 | $187.00 |
|
| 750 kg | 260 | HB750-260 | $187.00 |
|
| 750 kg | 280 | HB750-280 | $187.00 |
|
| 750 kg | 300 | HB750-300 | $187.00 |
|
| 750 kg | 320 | HB750-320 | $187.00 |
|
| 750 kg | 340 | HB750-340 | $187.00 |
|
| 750 kg | 360 | HB750-360 | $187.00 |
|
| 750 kg | 380 | HB750-380 | $187.00 |
|
| 750 kg | 400 | HB750-400 | $187.00 |
|
| 750 kg | 420 | HB750-420 | $187.00 |
|
| 750 kg | 440 | HB750-440 | $187.00 |
|
| 750 kg | 460 | HB750-460 | $187.00 |
|
| 750 kg | 480 | HB750-480 | $187.00 |
|
| 750 kg | 500 | HB750-500 | $187.00 |
|
| 750 kg | 540 | HB750-540 | $187.00 |
|
| 500 kg | 60 | HB500-60 | $187.00 |
|
| 500 kg | 80 | HB500-80 | $187.00 |
|
| 500 kg | 100 | HB500-100 | $187.00 |
|
| 500 kg | 120 | HB500-120 | $187.00 |
|
| 500 kg | 140 | HB500-140 | $187.00 |
|
| 250 kg | 60 | HB250-60 | $187.00 |
|
| 250 kg | 80 | HB250-80 | $187.00 |
|
| 250 kg | 100 | HB250-100 | $187.00 |
|
| 250 kg | 120 | HB250-120 | $187.00 |
|
| 250 kg | 140 | HB250-140 | $187.00 |
|
| 187.5 kg | 60 | HB187.5-60 | $187.00 |
|
| 187.5 kg | 80 | HB187.5-80 | $187.00 |
|
| 187.5 kg | 100 | HB187.5-100 | $187.00 |
|
| 187.5 kg | 120 | HB187.5-120 | $187.00 |
|
| 187.5 kg | 140 | HB187.5-140 | $187.00 |
|
|
No variants match your selected filters. |
||||
Product Details
Brinell Test Blocks is used to calibrate portable, bench and production Brinell hardness testers. Each Brinell test block is heat treated in a computer-controlled vacuum heat treat furnace to insure maximum consistency and repeatability. They are then blanched; ground, hand lapped and diamond polished providing you with impressions that are easy to read with precision accuracy.
Brinell test blocks are calibrated with five impressions and certified in accordance to ASTM E-10 and ISO 6506 on hardness testers calibrated and traceable to NIST. The arithmetic mean of the five impressions is inscribed on the block both in BHN Hardness and diameter in millimeters. Each test block is calibrated with Tungsten carbide indenters. HB30 designates 3000 kg / 10 mm ball - the most common Brinell scale, HB5 designates 500 kg /10 mm ball and HB15 designates 1500 kg / 10 mm ball.
Final inspection of Brinell test blocks are preformed in our state of the art ISO/IEC 17025 accredited laboratories. All test blocks are manufactured in accordance with the latest ASTM E10 Brinell revisions. Each test block comes with a long form certificate of calibration verifying the readings and that the test measurement equipment used was calibrated and traceable to NIST. Available in steel or aluminum in hardness ranges of HB75 to HB525. Test block dimensions: Length 6" (15.24 cm), Width 2 ½” (5.08 cm), Thickness 5/8" (1.59 cm)
Brinell Standards
International (ISO) and European (CEN) Standard
- EN ISO 6506-1 : Metallic materials - Brinell hardness test - Part 1 : test method.
- EN ISO 6506-2 : Metallic materials - Brinell hardness test - Part 2 : verification and calibration of testing machine.
- EN ISO 6506-3 : Metallic materials - Brinell hardness test - Part 3 : calibration of reference blocks
US standard (ASTM International)
- ASTM E10 : : Standard method for Brinell hardness of metallic materials
Note: WESTport Rex Gauge Durometer Models 1500, H-1000, and 2100 are not recommended for use with operating stands or constant load weights
