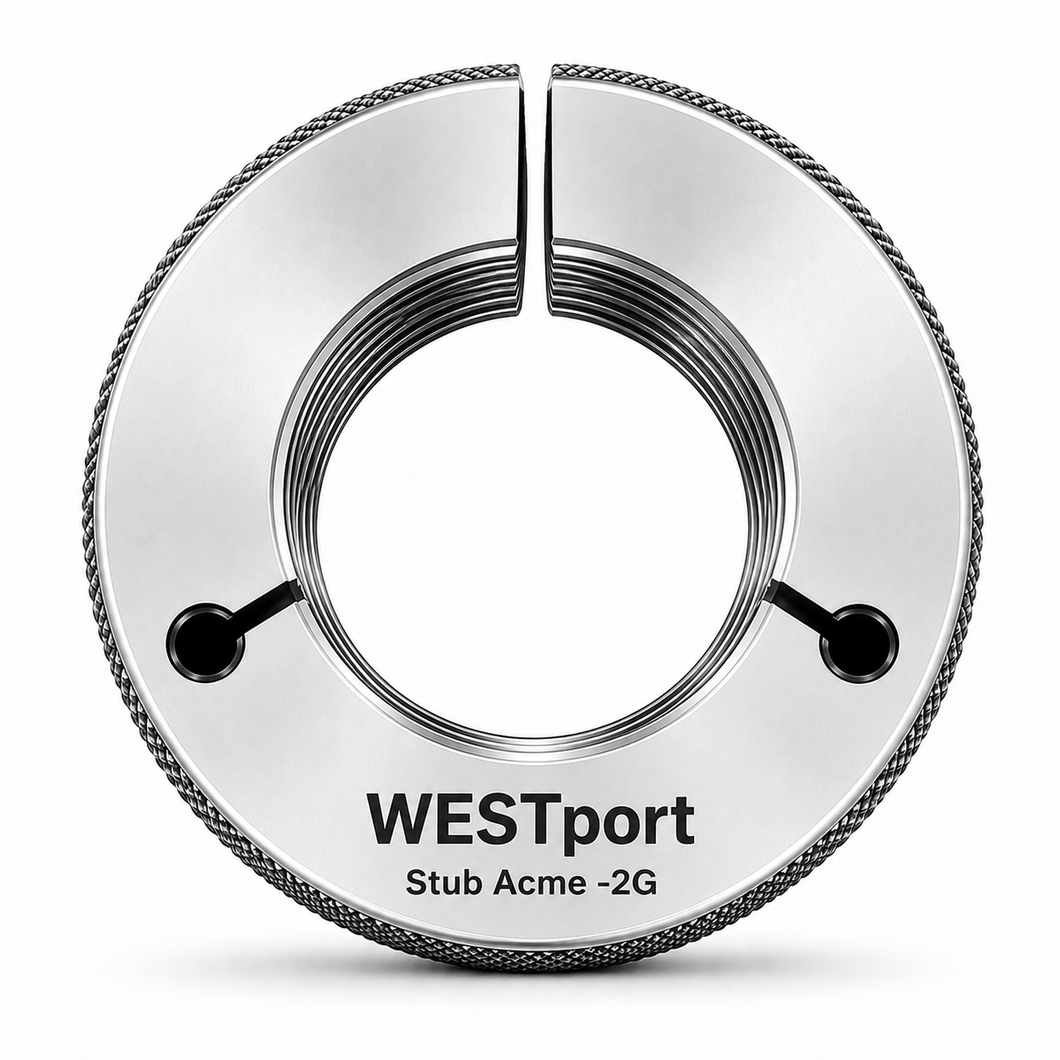

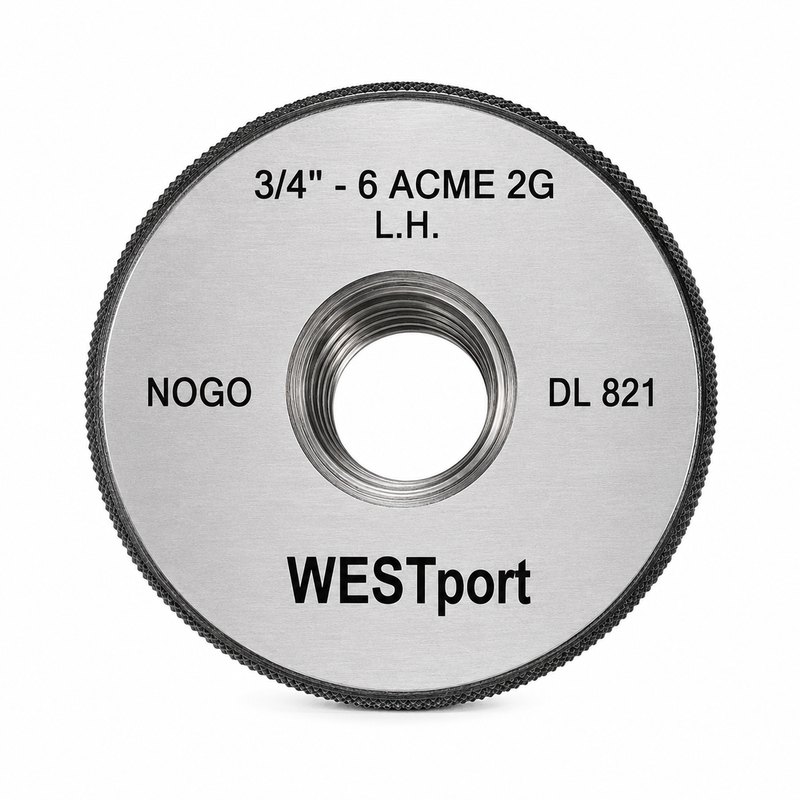

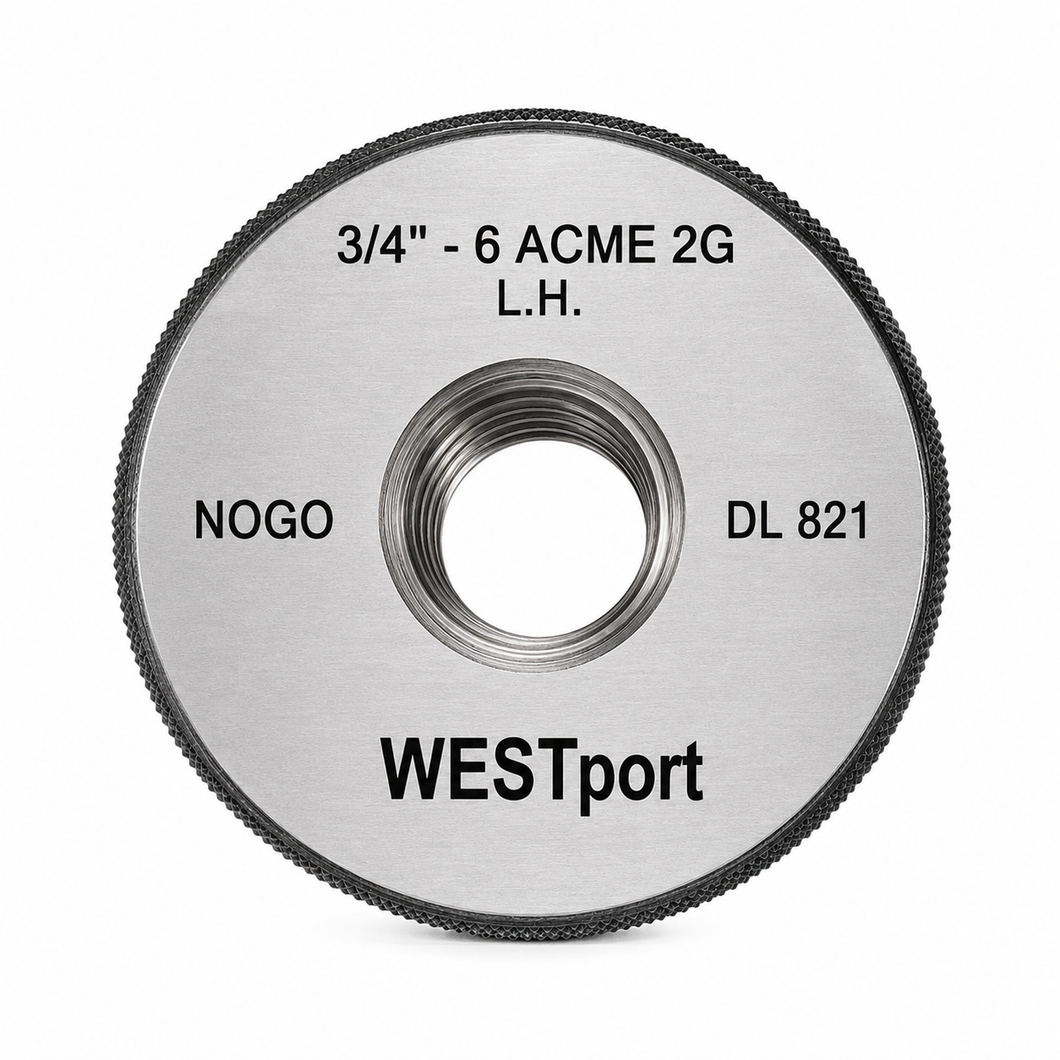

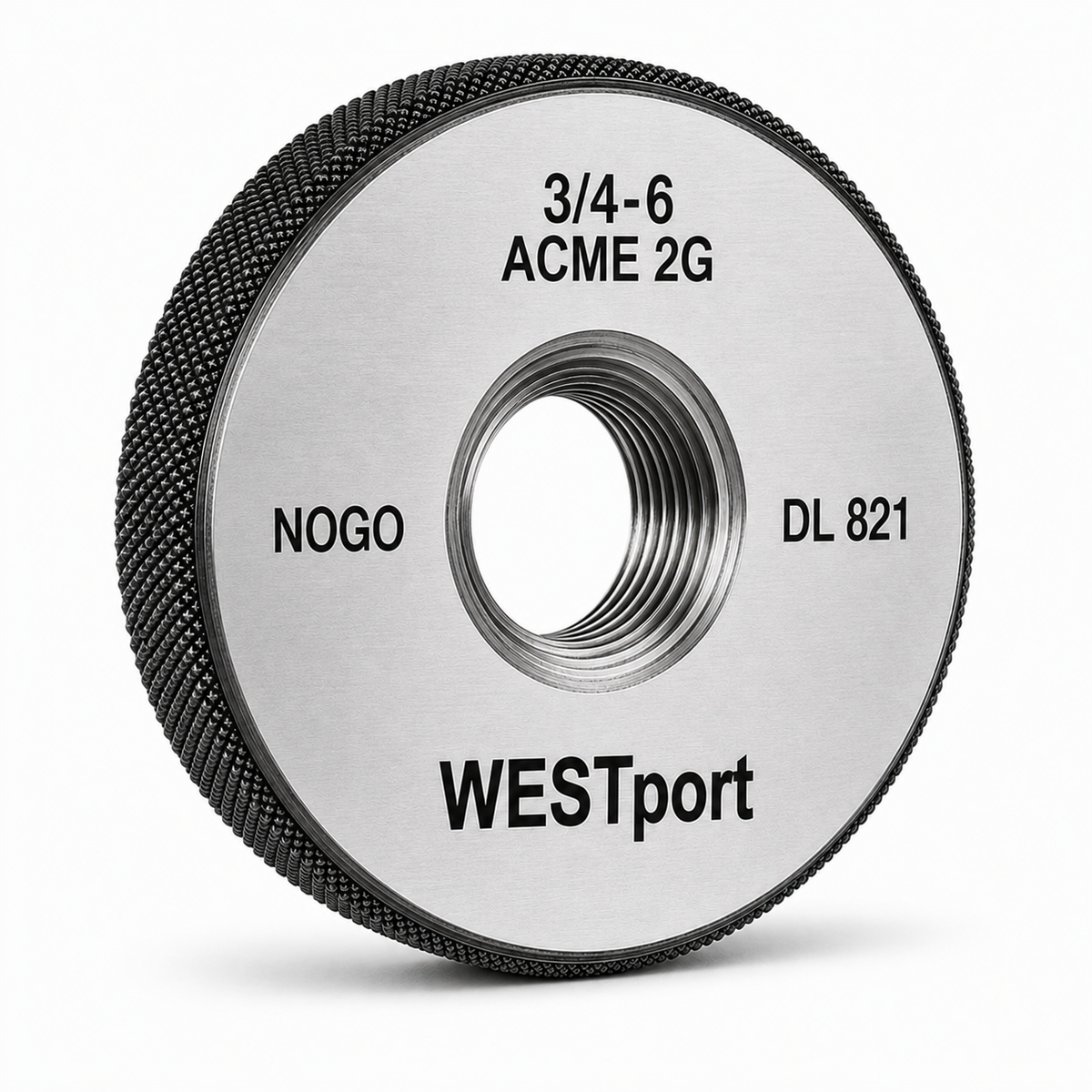

ACME Thread Ring Gage
ACME Thread Ring Gage
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Part #:ACMETRG1
Quantity
Couldn't load pickup availability
Features
- Gages an external threaded product
- 3 classes of fit – 2G, 3G, 4G
- Centralizing ACME threads classes of fit:: 2C, 3C, 4C
- ACME thread ring gages compliant to ASME B1.5-1997
- ACME thread ring gage lengths and blank standards compliant to ASME B47.1
Available Products
| Size | Class | Member | TPI | Pitch Diameter | SKU | Price | |
|---|---|---|---|---|---|---|---|
| .2500-16 | 2G | GO | 16 | .2148" | ACMETRG1 | Call for Quote |
|
| .2500-16 | 2G | NO GO | 16 | .2043" | ACMETRG1 | Call for Quote |
|
| .2500-16 | 2G | GO/NO GO Ring Gage Set | 16 | .2148"/.2043" | ACMETRGS1 | Call for Quote |
|
| .2500-16 | 3G | GO | 16 | .2158" | ACMETRG2 | Call for Quote |
|
| .2500-16 | 3G | NO GO | 16 | .2109" | ACMETRG2 | Call for Quote |
|
| .2500-16 | 3G | GO/NO GO Ring Gage Set | 16 | .2158"/.2109" | ACMETRGS2 | Call for Quote |
|
| .2500-16 | 4G | GO | 16 | .2148" | ACMETRG3 | Call for Quote |
|
| .2500-16 | 4G | NO GO | 16 | .2133" | ACMETRG3 | Call for Quote |
|
| .2500-16 | 4G | GO/NO GO Ring Gage Set | 16 | .2148"/.2133" | ACMETRGS3 | Call for Quote |
|
| .3125-14 | 2G | GO | 14 | .2728" | ACMETRG4 | Call for Quote |
|
| .3125-14 | 2G | NO GO | 14 | .2614" | ACMETRG4 | Call for Quote |
|
| .3125-14 | 2G | GO/NO GO Ring Gage Set | 14 | .2728"/.2614" | ACMETRGS4 | Call for Quote |
|
| .3125-14 | 3G | GO | 14 | .2738" | ACMETRG5 | Call for Quote |
|
| .3125-14 | 3G | NO GO | 14 | .2685" | ACMETRG5 | Call for Quote |
|
| .3125-14 | 3G | GO/NO GO Ring Gage Set | 14 | .2738"/.2685" | ACMETRGS5 | Call for Quote |
|
| .3125-14 | 4G | GO | 14 | .2748" | ACMETRG6 | Call for Quote |
|
| .3125-14 | 4G | NO GO | 14 | .2710" | ACMETRG6 | Call for Quote |
|
| .3125-14 | 4G | GO/NO GO Ring Gage Set | 14 | .2748"/.2710" | ACMETRGS6 | Call for Quote |
|
| .3750-12 | 2G | GO | 12 | .3284" | ACMETRG7 | Call for Quote |
|
| .3750-12 | 2G | NO GO | 12 | .3161" | ACMETRG7 | Call for Quote |
|
| .3750-12 | 2G | GO/NO GO Ring Gage Set | 12 | .3284"/.3161" | ACMETRGS7 | Call for Quote |
|
| .3750-12 | 3G | GO | 12 | .3296" | ACMETRG8 | Call for Quote |
|
| .3750-12 | 3G | NO GO | 12 | .3238" | ACMETRG8 | Call for Quote |
|
| .3750-12 | 3G | GO/NO GO Ring Gage Set | 12 | .3296"/.3238" | ACMETRGS8 | Call for Quote |
|
| .3750-12 | 4G | GO | 12 | .3309" | ACMETRG9 | Call for Quote |
|
| .3750-12 | 4G | NO GO | 12 | .3268" | ACMETRG9 | Call for Quote |
|
| .3750-12 | 4G | GO/NO GO Ring Gage Set | 12 | .3309"/.3268" | ACMETRGS9 | Call for Quote |
|
| .4375-12 | 2G | GO | 12 | .3909" | ACMETRG10 | Call for Quote |
|
| .4375-12 | 2G | NO GO | 12 | .3783" | ACMETRG10 | Call for Quote |
|
| .4375-12 | 2G | GO/NO GO Ring Gage Set | 12 | .3909"/.3783" | ACMETRGS10 | Call for Quote |
|
| .4375-12 | 3G | GO | 12 | .3921" | ACMETRG11 | Call for Quote |
|
| .4375-12 | 3G | NO GO | 12 | .3862" | ACMETRG11 | Call for Quote |
|
| .4375-12 | 3G | GO/NO GO Ring Gage Set | 12 | .3921"/.3862" | ACMETRGS11 | Call for Quote |
|
| .4375-12 | 4G | GO | 12 | .3924" | ACMETRG12 | Call for Quote |
|
| .4375-12 | 4G | NO GO | 12 | .3892" | ACMETRG12 | Call for Quote |
|
| .4375-12 | 4G | GO/NO GO Ring Gage Set | 12 | .3924"/.3892" | ACMETRGS12 | Call for Quote |
|
| .5000-10 | 2G | GO | 10 | .4443" | ACMETRG13 | Call for Quote |
|
| .5000-10 | 2G | NO GO | 10 | .4306" | ACMETRG13 | Call for Quote |
|
| .5000-10 | 2G | GO/NO GO Ring Gage Set | 10 | .4458"/.4394" | ACMETRGS13 | Call for Quote |
|
| .5000-10 | 3G | GO | 10 | .4458" | ACMETRG14 | Call for Quote |
|
| .5000-10 | 3G | NO GO | 10 | .4394" | ACMETRG14 | Call for Quote |
|
| .5000-10 | 3G | GO/NO GO Ring Gage Set | 10 | .4458"/.4394" | ACMETRGS14 | Call for Quote |
|
| .5000-10 | 4G | GO | 10 | .4472" | ACMETRG15 | Call for Quote |
|
| .5000-10 | 4G | NO GO | 10 | .4426" | ACMETRG15 | Call for Quote |
|
| .5000-10 | 4G | GO/NO GO Ring Gage Set | 10 | .4472"/.4426" | ACMETRGS15 | Call for Quote |
|
| .6250-8 | 2G | GO | 8 | .5562" | ACMETRG16 | Call for Quote |
|
| .6250-8 | 2G | NO GO | 8 | .6408" | ACMETRG16 | Call for Quote |
|
| .6250-8 | 2G | GO/NO GO Ring Gage Set | 8 | .5562"/.6408" | ACMETRGS16 | Call for Quote |
|
| .6250-8 | 3G | GO | 8 | .5578" | ACMETRG17 | Call for Quote |
|
| .6250-8 | 3G | NO GO | 8 | .5506" | ACMETRG17 | Call for Quote |
|
| .6250-8 | 3G | GO/NO GO Ring Gage Set | 8 | .5578"/.5506" | ACMETRGS17 | Call for Quote |
|
| .6250-8 | 4G | GO | 8 | .5593" | ACMETRG18 | Call for Quote |
|
| .6250-8 | 4G | NO GO | 8 | .5542" | ACMETRG18 | Call for Quote |
|
| .6250-8 | 4G | GO/NO GO Ring Gage Set | 8 | .5593"/.5542" | ACMETRGS18 | Call for Quote |
|
| .7500-6 | 2G | GO | 6 | .6598" | ACMETRG19 | Call for Quote |
|
| .7500-6 | 2G | NO GO | 6 | .6424" | ACMETRG19 | Call for Quote |
|
| .7500-6 | 2G | GO/NO GO Ring Gage Set | 6 | .6598"/.6424" | ACMETRGS19 | Call for Quote |
|
| .7500-6 | 3G | GO | 6 | .6615" | ACMETRG20 | Call for Quote |
|
| .7500-6 | 3G | NO GO | 6 | .6534" | ACMETRG20 | Call for Quote |
|
| .7500-6 | 3G | GO/NO GO Ring Gage Set | 6 | .6615"/.6534" | ACMETRGS20 | Call for Quote |
|
| .7500-6 | 4G | GO | 6 | .6632" | ACMETRG21 | Call for Quote |
|
| .7500-6 | 4G | NO GO | 6 | .6574" | ACMETRG21 | Call for Quote |
|
| .7500-6 | 4G | GO/NO GO Ring Gage Set | 6 | .6632"/.6574" | ACMETRGS21 | Call for Quote |
|
| .8750-6 | 2G | GO | 6 | .7842" | ACMETRG22 | Call for Quote |
|
| .8750-6 | 2G | NO GO | 6 | .7663" | ACMETRG22 | Call for Quote |
|
| .8750-6 | 2G | GO/NO GO Ring Gage Set | 6 | .7861"/.7778" | ACMETRGS22 | Call for Quote |
|
| .8750-6 | 3G | GO | 6 | .7861" | ACMETRG23 | Call for Quote |
|
| .8750-6 | 3G | NO GO | 6 | .7778" | ACMETRG23 | Call for Quote |
|
| .8750-6 | 3G | GO/NO GO Ring Gage Set | 6 | .7861"/.7778" | ACMETRGS23 | Call for Quote |
|
| .8750-6 | 4G | GO | 6 | .7880" | ACMETRG24 | Call for Quote |
|
| .8750-6 | 4G | NO GO | 6 | .7820" | ACMETRG24 | Call for Quote |
|
| .8750-6 | 4G | GO/NO GO Ring Gage Set | 6 | .7880"/.7820" | ACMETRGS24 | Call for Quote |
|
| 1.0000-5 | 2G | GO | 5 | .8920" | ACMETRG25 | Call for Quote |
|
| 1.0000-5 | 2G | NO GO | 5 | .8726" | ACMETRG25 | Call for Quote |
|
| 1.0000-5 | 2G | GO/NO GO Ring Gage Set | 5 | .8920"/.8726" | ACMETRGS25 | Call for Quote |
|
| 1.0000-5 | 3G | GO | 5 | .8940" | ACMETRG26 | Call for Quote |
|
| 1.0000-5 | 3G | NO GO | 5 | .8849" | ACMETRG26 | Call for Quote |
|
| 1.0000-5 | 3G | GO/NO GO Ring Gage Set | 5 | .8940"/.8849" | ACMETRGS26 | Call for Quote |
|
| 1.0000-5 | 4G | GO | 5 | .8960" | ACMETRG27 | Call for Quote |
|
| 1.0000-5 | 4G | NO GO | 5 | .8895" | ACMETRG27 | Call for Quote |
|
| 1.0000-5 | 4G | GO/NO GO Ring Gage Set | 5 | .8960"/.8895" | ACMETRGS27 | Call for Quote |
|
| 1.1250-5 | 2G | GO | 5 | 1.0165" | ACMETRG28 | Call for Quote |
|
| 1.1250-5 | 2G | NO GO | 5 | .9967" | ACMETRG28 | Call for Quote |
|
| 1.1250-5 | 2G | GO/NO GO Ring Gage Set | 5 | 1.0165"/.9967" | ACMETRGS28 | Call for Quote |
|
| 1.1250-5 | 3G | GO | 5 | 1.0186" | ACMETRG29 | Call for Quote |
|
| 1.1250-5 | 3G | NO GO | 5 | 1.0094" | ACMETRG29 | Call for Quote |
|
| 1.1250-5 | 3G | GO/NO GO Ring Gage Set | 5 | 1.0186"/1.0094" | ACMETRGS29 | Call for Quote |
|
| 1.1250-5 | 4G | GO | 5 | 1.0208" | ACMETRG30 | Call for Quote |
|
| 1.1250-5 | 4G | NO GO | 5 | 1.0142" | ACMETRG30 | Call for Quote |
|
| 1.1250-5 | 4G | GO/NO GO Ring Gage Set | 5 | 1.0208"/1.0142" | ACMETRGS30 | Call for Quote |
|
| 1.2500-5 | 2G | GO | 5 | 1.1411" | ACMETRG31 | Call for Quote |
|
| 1.2500-5 | 2G | NO GO | 5 | 1.1210" | ACMETRG31 | Call for Quote |
|
| 1.2500-5 | 2G | GO/NO GO Ring Gage Set | 5 | 1.1411"/1.1210" | ACMETRGS31 | Call for Quote |
|
| 1.2500-5 | 3G | GO | 5 | 1.1433" | ACMETRG32 | Call for Quote |
|
| 1.2500-5 | 3G | NO GO | 5 | 1.1339" | ACMETRG32 | Call for Quote |
|
| 1.2500-5 | 3G | GO/NO GO Ring Gage Set | 5 | 1.1433"/1.1339" | ACMETRGS32 | Call for Quote |
|
| 1.2500-5 | 4G | GO | 5 | 1.1455" | ACMETRG33 | Call for Quote |
|
| 1.2500-5 | 4G | NO GO | 5 | 1.1388" | ACMETRG33 | Call for Quote |
|
| 1.2500-5 | 4G | GO/NO GO Ring Gage Set | 5 | 1.1455"/1.1388" | ACMETRGS33 | Call for Quote |
|
| 1.3750-4 | 2G | GO | 4 | 1.2406" | ACMETRG34 | Call for Quote |
|
| 1.3750-4 | 2G | NO GO | 4 | 1.2186" | ACMETRG34 | Call for Quote |
|
| 1.3750-4 | 2G | GO/NO GO Ring Gage Set | 4 | 1.2406"/1.2186" | ACMETRGS34 | Call for Quote |
|
| 1.3750-4 | 3G | GO | 4 | 1.2430" | ACMETRG35 | Call for Quote |
|
| 1.3750-4 | 3G | NO GO | 4 | 1.2327" | ACMETRG35 | Call for Quote |
|
| 1.3750-4 | 3G | GO/NO GO Ring Gage Set | 4 | 1.2430"/1.2327" | ACMETRGS35 | Call for Quote |
|
| 1.3750-4 | 4G | GO | 4 | 1.2453" | ACMETRG36 | Call for Quote |
|
| 1.3750-4 | 4G | NO GO | 4 | 1.2380" | ACMETRG36 | Call for Quote |
|
| 1.3750-4 | 4G | GO/NO GO Ring Gage Set | 4 | 1.2453"/1.2380" | ACMETRGS36 | Call for Quote |
|
| 1.5000-4 | 2G | GO | 4 | 1.3652" | ACMETRG37 | Call for Quote |
|
| 1.5000-4 | 2G | NO GO | 4 | 1.3429" | ACMETRG37 | Call for Quote |
|
| 1.5000-4 | 2G | GO/NO GO Ring Gage Set | 4 | 1.3652"/1.3429" | ACMETRGS37 | Call for Quote |
|
| 1.5000-4 | 3G | GO | 4 | 1.3677" | ACMETRG38 | Call for Quote |
|
| 1.5000-4 | 3G | NO GO | 4 | 1.3573" | ACMETRG38 | Call for Quote |
|
| 1.5000-4 | 3G | GO/NO GO Ring Gage Set | 4 | 1.3677"/1.3573" | ACMETRGS38 | Call for Quote |
|
| 1.5000-4 | 4G | GO | 4 | 1.3701" | ACMETRG39 | Call for Quote |
|
| 1.5000-4 | 4G | NO GO | 4 | 1.3627" | ACMETRG39 | Call for Quote |
|
| 1.5000-4 | 4G | GO/NO GO Ring Gage Set | 4 | 1.3701"/1.3627" | ACMETRGS39 | Call for Quote |
|
| 1.7500-4 | 2G | GO | 4 | 1.6145" | ACMETRG40 | Call for Quote |
|
| 1.7500-4 | 2G | NO GO | 4 | 1.5916" | ACMETRG40 | Call for Quote |
|
| 1.7500-4 | 2G | GO/NO GO Ring Gage Set | 4 | 1.6145"/1.5916" | ACMETRGS40 | Call for Quote |
|
| 1.7500-4 | 3G | GO | 4 | 1.6145" | ACMETRG41 | Call for Quote |
|
| 1.7500-4 | 3G | NO GO | 4 | 1.5916" | ACMETRG41 | Call for Quote |
|
| 1.7500-4 | 3G | GO/NO GO Ring Gage Set | 4 | 1.6145"/1.5916" | ACMETRGS41 | Call for Quote |
|
| 1.7500-4 | 4G | GO | 4 | 1.6198" | ACMETRG42 | Call for Quote |
|
| 1.7500-4 | 4G | NO GO | 4 | 1.6122" | ACMETRG42 | Call for Quote |
|
| 1.7500-4 | 4G | GO/NO GO Ring Gage Set | 4 | 1.6198"/1.6122" | ACMETRGS42 | Call for Quote |
|
| 2.000-4 | 2G | GO | 4 | 1.8637" | ACMETRG43 | Call for Quote |
|
| 2.000-4 | 2G | NO GO | 4 | 1.8402" | ACMETRG43 | Call for Quote |
|
| 2.000-4 | 2G | GO/NO GO Ring Gage Set | 4 | 1.8637"/1.8402" | ACMETRGS43 | Call for Quote |
|
| 2.000-4 | 3G | GO | 4 | 1.8665" | ACMETRG44 | Call for Quote |
|
| 2.000-4 | 3G | NO GO | 4 | 1.8555" | ACMETRG44 | Call for Quote |
|
| 2.000-4 | 3G | GO/NO GO Ring Gage Set | 4 | 1.8665"/1.8555" | ACMETRGS44 | Call for Quote |
|
| 2.000-4 | 4G | GO | 4 | 1.8693" | ACMETRG45 | Call for Quote |
|
| 2.000-4 | 4G | NO GO | 4 | 1.8615" | ACMETRG45 | Call for Quote |
|
| 2.000-4 | 4G | GO/NO GO Ring Gage Set | 4 | 1.8693"/1.8615" | ACMETRGS45 | Call for Quote |
|
| 2.2500-3 | 2G | GO | 3 | 2.0713" | ACMETRG46 | Call for Quote |
|
| 2.2500-3 | 2G | NO GO | 3 | 2.0450" | ACMETRG46 | Call for Quote |
|
| 2.2500-3 | 2G | GO/NO GO Ring Gage Set | 3 | 2.0713"/2.0450" | ACMETRGS46 | Call for Quote |
|
| 2.2500-3 | 3G | GO | 3 | 2.0743" | ACMETRG47 | Call for Quote |
|
| 2.2500-3 | 3G | NO GO | 3 | 2.0620" | ACMETRG47 | Call for Quote |
|
| 2.2500-3 | 3G | GO/NO GO Ring Gage Set | 3 | 2.0743"/2.0620" | ACMETRGS47 | Call for Quote |
|
| 2.2500-3 | 4G | GO | 3 | 2.0773" | ACMETRG48 | Call for Quote |
|
| 2.2500-3 | 4G | NO GO | 3 | 2.0685" | ACMETRG48 | Call for Quote |
|
| 2.2500-3 | 4G | GO/NO GO Ring Gage Set | 3 | 2.0773"/2.0685" | ACMETRGS48 | Call for Quote |
|
| 2.500-3 | 2G | GO | 3 | 2.3207" | ACMETRG49 | Call for Quote |
|
| 2.500-3 | 2G | NO GO | 3 | 2.2939" | ACMETRG49 | Call for Quote |
|
| 2.500-3 | 2G | GO/NO GO Ring Gage Set | 3 | 2.3207"/2.2939" | ACMETRGS49 | Call for Quote |
|
| 2.500-3 | 3G | GO | 3 | 2.3238" | ACMETRG50 | Call for Quote |
|
| 2.500-3 | 3G | NO GO | 3 | 2.3113" | ACMETRG50 | Call for Quote |
|
| 2.500-3 | 3G | GO/NO GO Ring Gage Set | 3 | 2.3238"/2.3113" | ACMETRGS50 | Call for Quote |
|
| 2.500-3 | 4G | GO | 3 | 2.3270" | ACMETRG51 | Call for Quote |
|
| 2.500-3 | 4G | NO GO | 3 | 2.3181" | ACMETRG51 | Call for Quote |
|
| 2.500-3 | 4G | GO/NO GO Ring Gage Set | 3 | 2.3270"/2.3181" | ACMETRGS51 | Call for Quote |
|
| 2.7500-3 | 2G | GO | 3 | 2.5700" | ACMETRG52 | Call for Quote |
|
| 2.7500-3 | 2G | NO GO | 3 | 2.5427" | ACMETRG52 | Call for Quote |
|
| 2.7500-3 | 2G | GO/NO GO Ring Gage Set | 3 | 2.5700"/2.5427" | ACMETRGS52 | Call for Quote |
|
| 2.7500-3 | 3G | GO | 3 | 2.5734" | ACMETRG53 | Call for Quote |
|
| 2.7500-3 | 3G | NO GO | 3 | 2.5607" | ACMETRG53 | Call for Quote |
|
| 2.7500-3 | 3G | GO/NO GO Ring Gage Set | 3 | 2.5734"/2.5607" | ACMETRGS53 | Call for Quote |
|
| 2.7500-3 | 4G | GO | 3 | 2.5767" | ACMETRG54 | Call for Quote |
|
| 2.7500-3 | 4G | NO GO | 3 | 2.5676" | ACMETRG54 | Call for Quote |
|
| 2.7500-3 | 4G | GO/NO GO Ring Gage Set | 3 | 2.5767"/2.5676" | ACMETRGS54 | Call for Quote |
|
| 3.0000-2 | 2G | GO | 2 | 2.7360" | ACMETRG55 | Call for Quote |
|
| 3.0000-2 | 2G | NO GO | 2 | 2.7044" | ACMETRG55 | Call for Quote |
|
| 3.0000-2 | 2G | GO/NO GO Ring Gage Set | 2 | 2.7360"/2.7044" | ACMETRGS55 | Call for Quote |
|
| 3.0000-2 | 3G | GO | 2 | 2.7360" | ACMETRG56 | Call for Quote |
|
| 3.0000-2 | 3G | NO GO | 2 | 2.7248" | ACMETRG56 | Call for Quote |
|
| 3.0000-2 | 3G | GO/NO GO Ring Gage Set | 2 | 2.7360"/2.7248" | ACMETRGS56 | Call for Quote |
|
| 3.0000-2 | 4G | GO | 2 | 2.7430" | ACMETRG57 | Call for Quote |
|
| 3.0000-2 | 4G | NO GO | 2 | 2.7325" | ACMETRG57 | Call for Quote |
|
| 3.0000-2 | 4G | GO/NO GO Ring Gage Set | 2 | 2.7430"/2.7325" | ACMETRGS57 | Call for Quote |
|
| 3.5000-2 | 2G | GO | 2 | 3.2350" | ACMETRG58 | Call for Quote |
|
| 3.5000-2 | 2G | NO GO | 2 | 3.2026" | ACMETRG58 | Call for Quote |
|
| 3.5000-2 | 2G | GO/NO GO Ring Gage Set | 2 | 3.2350"/3.2026" | ACMETRGS58 | Call for Quote |
|
| 3.5000-2 | 3G | GO | 2 | 3.2388" | ACMETRG59 | Call for Quote |
|
| 3.5000-2 | 3G | NO GO | 2 | 3.2237" | ACMETRG59 | Call for Quote |
|
| 3.5000-2 | 3G | GO/NO GO Ring Gage Set | 2 | 3.2388"/3.2237" | ACMETRGS59 | Call for Quote |
|
| 3.5000-2 | 4G | GO | 2 | 3.2425" | ACMETRG60 | Call for Quote |
|
| 3.5000-2 | 4G | NO GO | 2 | 3.2317" | ACMETRG60 | Call for Quote |
|
| 3.5000-2 | 4G | GO/NO GO Ring Gage Set | 2 | 3.2425"/3.2317" | ACMETRGS60 | Call for Quote |
|
| 4.0000-2 | 2G | GO | 2 | 3.7340" | ACMETRG61 | Call for Quote |
|
| 4.0000-2 | 2G | NO GO | 2 | 3.7008" | ACMETRG61 | Call for Quote |
|
| 4.0000-2 | 2G | GO/NO GO Ring Gage Set | 2 | 3.7340"/3.7008" | ACMETRGS61 | Call for Quote |
|
| 4.0000-2 | 3G | GO | 2 | 3.7380" | ACMETRG62 | Call for Quote |
|
| 4.0000-2 | 3G | NO GO | 2 | 3.7225" | ACMETRG62 | Call for Quote |
|
| 4.0000-2 | 3G | GO/NO GO Ring Gage Set | 2 | 3.7380"/3.7225" | ACMETRGS62 | Call for Quote |
|
| 4.0000-2 | 4G | GO | 2 | 3.7420" | ACMETRG63 | Call for Quote |
|
| 4.0000-2 | 4G | NO GO | 2 | 3.7309" | ACMETRG63 | Call for Quote |
|
| 4.0000-2 | 4G | GO/NO GO Ring Gage Set | 2 | 3.7420"/3.7309" | ACMETRGS63 | Call for Quote |
|
| 4.5000-2 | 2G | GO | 2 | 4.2330" | ACMETRG64 | Call for Quote |
|
| 4.5000-2 | 2G | NO GO | 2 | 4.1991" | ACMETRG64 | Call for Quote |
|
| 4.5000-2 | 2G | GO/NO GO Ring Gage Set | 2 | 4.2330"/4.1991" | ACMETRGS64 | Call for Quote |
|
| 4.5000-2 | 3G | GO | 2 | 4.2373" | ACMETRG65 | Call for Quote |
|
| 4.5000-2 | 3G | NO GO | 2 | 4.2215" | ACMETRG65 | Call for Quote |
|
| 4.5000-2 | 3G | GO/NO GO Ring Gage Set | 2 | 4.2373"/4.2215" | ACMETRGS65 | Call for Quote |
|
| 4.5000-2 | 4G | GO | 2 | 4.2415" | ACMETRG66 | Call for Quote |
|
| 4.5000-2 | 4G | NO GO | 2 | 4.2302" | ACMETRG66 | Call for Quote |
|
| 4.5000-2 | 4G | GO/NO GO Ring Gage Set | 2 | 4.2415"/4.2302" | ACMETRGS66 | Call for Quote |
|
| 5.0000-2 | 2G | GO | 2 | 4.7319" | ACMETRG67 | Call for Quote |
|
| 5.0000-2 | 2G | NO GO | 2 | 4.6973" | ACMETRG67 | Call for Quote |
|
| 5.0000-2 | 2G | GO/NO GO Ring Gage Set | 2 | 4.7319"/4.6973" | ACMETRGS67 | Call for Quote |
|
| 5.0000-2 | 3G | GO | 2 | 4.7364" | ACMETRG68 | Call for Quote |
|
| 5.0000-2 | 3G | NO GO | 2 | 4.7202" | ACMETRG68 | Call for Quote |
|
| 5.0000-2 | 3G | GO/NO GO Ring Gage Set | 2 | 4.7364"/4.7202" | ACMETRGS68 | Call for Quote |
|
| 5.0000-2 | 4G | GO | 2 | 4.7409" | ACMETRG69 | Call for Quote |
|
| 5.0000-2 | 4G | NO GO | 2 | 4.7294" | ACMETRG69 | Call for Quote |
|
| 5.0000-2 | 4G | GO/NO GO Ring Gage Set | 2 | 4.7409"/4.7294" | ACMETRGS69 | Call for Quote |
|
|
No variants match your selected filters. |
|||||||
Product Details
WESTport Gage provides a complete line of standard and special General Purpose ACME GO/NO GO Thread Ring Gages in compliance with ASME B1.5 - 1997. Acme Thread Ring Gages are used to gage an external threaded product.. The ACME thread list of diameters listed here and their associated pitches are recommended as preferred. They have been specifically selected to meet requirements with the least number of items. In doing so this keeps the inventory of gages and tooling to a minimum in an effort to reduce costs.
There are three classes of fit for ACME General Purpose thread gages; 2G, 3G and 4G. Centralizing ACME threads have classes of fit which are 2C, 3C and 4C. ACME threads feature a 29 degree angle of thread which is the angle between the sides of the thread measured in an axial plane. ACME Thread Ring Gage lengths and blank standards are compliant to ASME B47.1
Centralizing ACME thread gages, Multiple start ACME thread gages and any special requirements will be priced on request.
There are three classes of fit for ACME General Purpose thread gages; 2G, 3G and 4G. Centralizing ACME threads have classes of fit which are 2C, 3C and 4C. ACME threads feature a 29 degree angle of thread which is the angle between the sides of the thread measured in an axial plane. ACME Thread Ring Gage lengths and blank standards are compliant to ASME B47.1
Centralizing ACME thread gages, Multiple start ACME thread gages and any special requirements will be priced on request.
