Pin Gages
Individual Pins, Sets, and Library Sets for Fixed-Limit GO/NOGO Gaging
Class ZZ, Z, X, and XX gage pins — individual, in sets, and in library sets — for hole inspection, setting instruments, and GO/NOGO fixed-limit gaging, certified in our ISO environmentally controlled laboratory.
Request a QuoteISO/IEC 17025Accredited
ISO 9001Certified Quality Management
ANSI/NCSL Z540-1Accredited Calibration Lab
Made in USASince 1989
Gage pins make quick, accurate fixed-limit measurements at a low cost — checking hole size and depth, calculating hole-to-hole distances, and setting micrometers, snap gages, and comparators. Available in inch and metric, in individual pins, complete sets, and reorderable library sets.

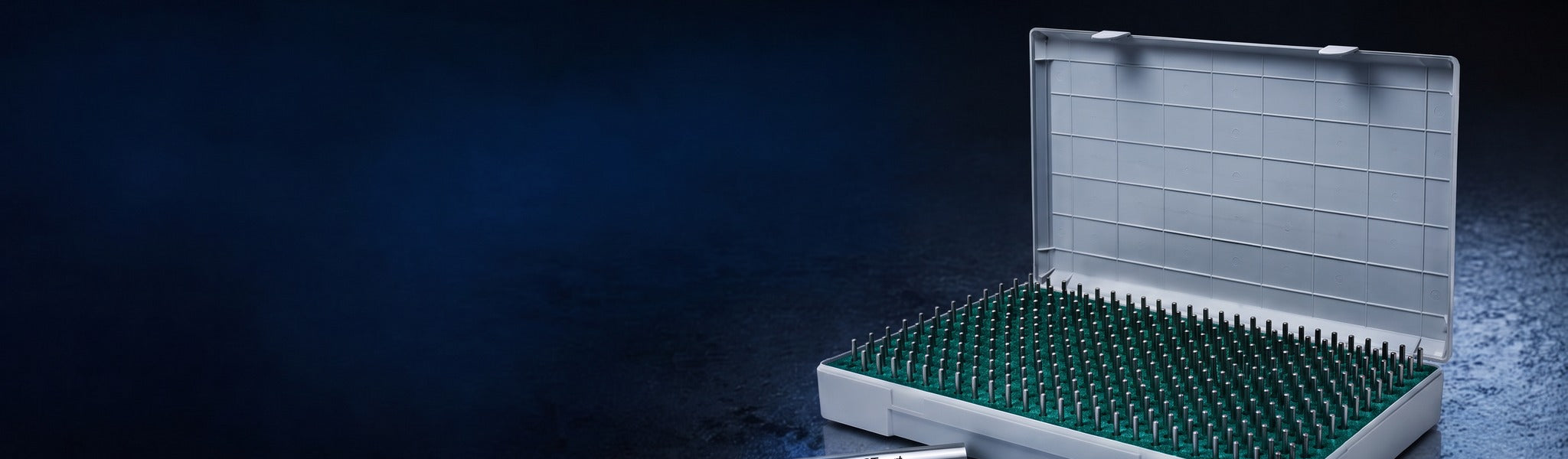

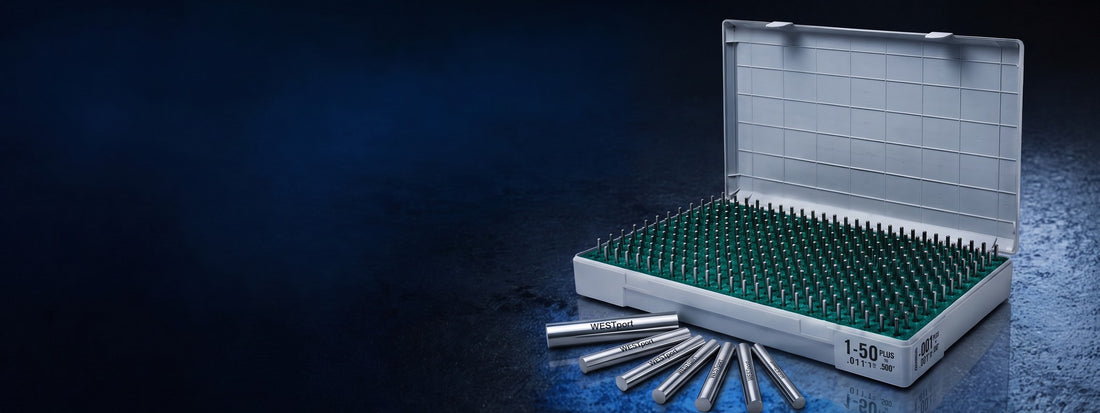

- Pin Gage Sets — graduated ranges in a fitted case, in class ZZ, Z, X, or XX tolerance.
- Pin Library Sets — deep, closely spaced ranges for shops that gage across many sizes.
- Individual Gage Pins — single pins for replacement or a specific size, standard two-inch length.
Manufactured to ANSI/ASME B89.1.5 and inspected in our ISO/IEC 17025 accredited laboratory.
