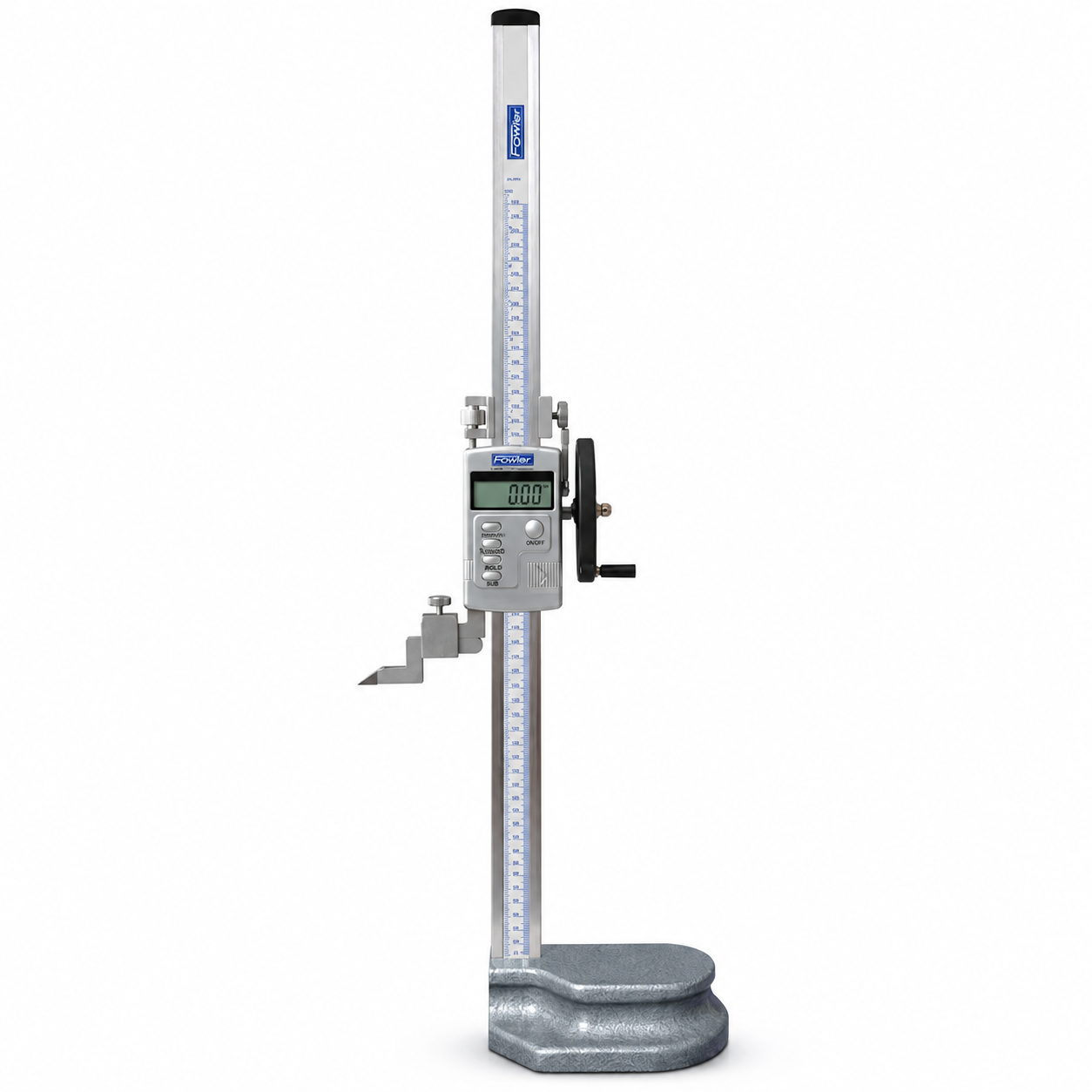

Fowler Z-Height-E PLUS Electronic Height Gage — 12"

Key Features

• 0–12" / 0–300 mm measuring range
• .0005" / 0.01 mm resolution
• Large high-contrast LCD display
• Direct inch/metric conversion
• Fine adjustment for precise positioning
• Preset measurement capability and floating zero
• Coarse adjustment hand wheel
• Carbide-tipped scriber
• Ground and lapped base for smooth surface-plate movement
• Two indicator holding bars included

Overview

The Fowler Z-Height-E PLUS 12" Electronic Height Gage combines digital measurement, precision positioning and easy surface-plate operation for everyday dimensional inspection.

Designed for quality-control departments, machine shops and production inspection, the gage features a large high-contrast digital display, direct inch/metric conversion and fine adjustment for accurate positioning.

Measurement and Operation

The finely ground and lapped base allows smooth movement across a surface plate, while the carbide-tipped scriber provides durability for both measuring and layout work. Preset measurement and floating zero let the operator work from any reference, and the coarse adjustment hand wheel speeds up gross positioning before the fine adjustment is used to land on the measurement.

Applications

A practical general-purpose inspection height gage for surface-plate measurement, dimensional inspection and layout in machine shops, inspection departments and quality laboratories.
