Dimensional Inspection Calibration and Repair
FVM and Twin Pines Metrology, divisions of WESTport Corporation offer full dimensional inspection capabilities using all DCC machines with PH10 heads and the latest software and technology. We also have a DCC Video machine which allows us to inspect by non-contact, which increases our field of inspection.

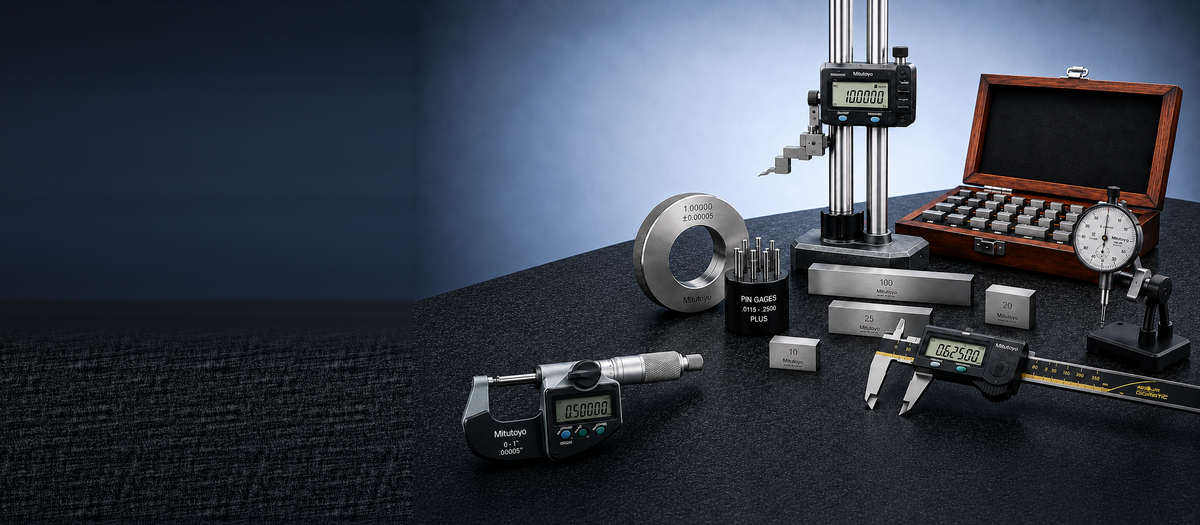

Our trained metrologists provide expert calibration for all types of precision dimensional standards. Our environmentally-controlled laboratories offer a wide range of dimensional capabilities from automated gage block calibration to precise length measurement
Metrology laboratories are ISO/IEC 17025 accredited. Quality Assurance Program meets ANSI/NCSL Z540-1.All calibrations come with Certificates of Calibration traceable to NIST. Gage block calibration service is NVLAP accredited.Some areas we specialize in 1-2-3 Block Feeler Gage Parallels Sieves Angle Plates First Article Inspection PI Tapes Sine Bars Angle Block Gage Blocks Pin Gage Sine Plates Bench Blocks Hardness Testers Pin Gage Sets Squares, All types Bench Micrometer Height Gage Pin Gage, Deltronic Steel Rules Bore Gages Height Gages . Plain Ring Gages Surface Plates Cable Height Master Profilometers & Standards Surface Tester Caliper/Vernier Hole Gages Protractor Tape Measures Calipers, All types Inspection Radius Gages Telescoping Gage CMM Lapping Anvils Ring Gage Test Indicators Crimpers Large Knee (Angle Plate) Riser Block Thickness Gages Depth Micrometer Laser Micrometer Std. Rotary Tables Thread Plug Gages Dial Indicators Levels & Protractors Rule Thread Ring Gages Dimensional Tape Micrometer Standards Scale Thread Wires Electronic Gage Microscopes Scale Glass Toolmaker's Microscope End Rods/Length Stds. Optical Comparators Screw Pitch Gage V-Blocks Wire Gage Yard Counter (Cablemeter) Coord3 Ares CMM
The Coord3 Ares is made of space age material and has a measuring envelope of 40" X 27.5" X 19.5" . Coord3 offers two kinds of software outputs: the Winmeil software for conventional inspection and the AAT Capps and Edges software, which is designed for engineering needs. It is capable of scanning and digitizing as well as being programmed from your CAD files. It also allows you to compare part features to actual CAD files, and gives you the ability to create IGES files for easy transfer of data to your CAD system.
Learn MoreZeiss Eclipse
The Zeiss Eclipse has a measuring envelope of 28X40X22 and ST Probe head. The Piezo electric sensor allows for accuracy unparalleled in the industry. The Eclipse's software allows for 2D and 3D scanning as well as collection of statistical data, with full SPC feedback.
Learn MoreMicro-Vu Video CMM
The Micro-Vu Video CMM is capable of inspecting parts where a touch probe may not be practical. It features complete CMM capability and offers DXF file out to interface with your CAD system.
Learn MoreOKM ACCURE Vision System
ACCURE is a modular series of coordinate measuring instruments satisfying the highest demands on precision and accuracy while also affording flexible automation.
With ACCURE, OKM continues the notable tradition of optical coordinate measuring equipment made in Jena. Featuring Carl Zeiss technology, high quality and innovative design, our products are bound to be successes - for the manufacturer as well as for the user.
Learn MoreOKM UNI-VIS Vision System
UNI-VIS is a family of measuring machines of modular design. The concept allows optimum, cost-effective solutions for every requirement - machine configurations can be tailored to specific applications with regard to measurement volume, accuracy, accessories and measurement methods. By retrofitting, the machine easily adapts to new measuring jobs
