Bone Plate Pedestal Gage
Bone Plate Pedestal Gage
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Quantity
Couldn't load pickup availability

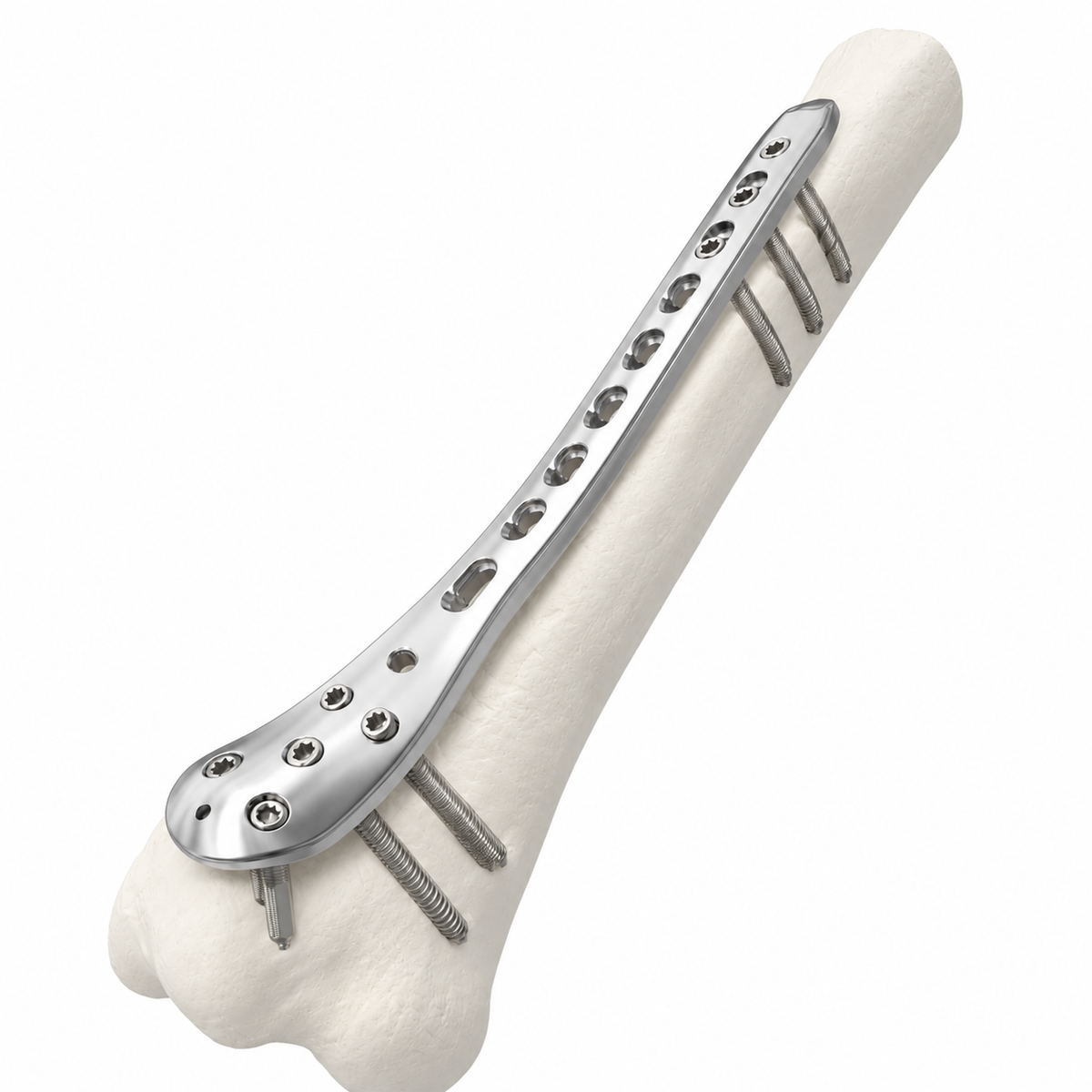

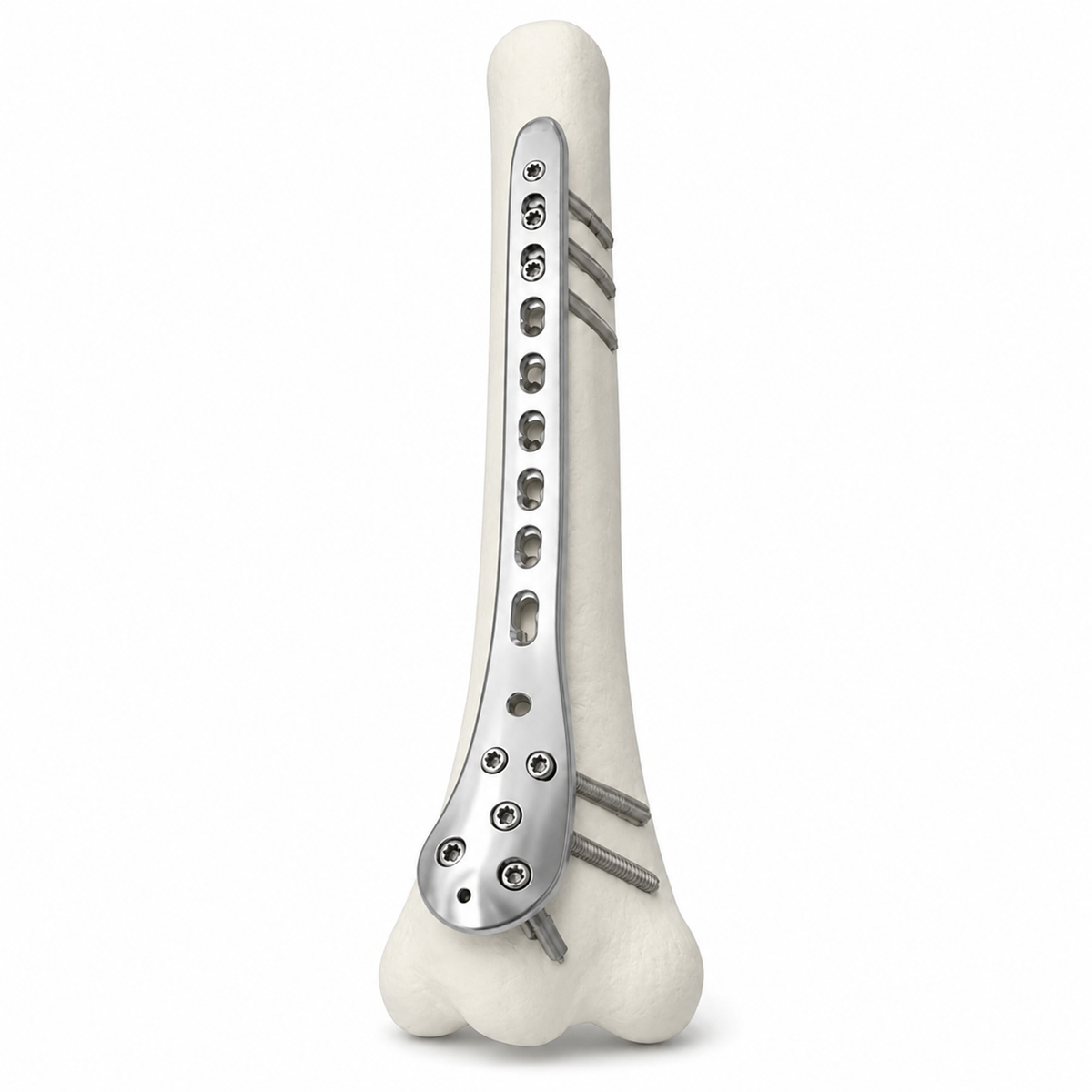

Bone plates are expensive to make — medical-grade alloys and continuous 5-axis milling — so catching a nonconformance early matters. WESTport designs and builds custom bone plate pedestal gages that verify the features that matter most on locking and cortical plates: screw-hole diameters, countersink geometry, plate thickness, and feature-to-feature positional relationships.
Custom-designed to your plate
Each pedestal gage is a fixed-limit gage engineered from your drawings and tailored to your plate family. Our design team reviews your part and defines the optimal gaging approach before manufacturing begins — catching problems before they become costly rejects.
Certification & quality
- Precision ground, hand lapped and polished for accuracy, optimum finish, and maximum wear life
- Certificate of Accuracy, NIST-traceable — included with every gage
- Calibrated in our ISO/IEC 17025 accredited (A2LA) laboratory; Long Form Certificate available on a 5–7 business day turnaround
Request a quote with your plate drawing to start a design review.
Specifications
| Gage Type | Special / custom gage |
|---|---|
| Measurement Mode | Fixed limit / attribute |
| What It Inspects | Screw-hole diameters, countersink geometry, plate thickness & feature positions |
| Certification | NIST-traceable Certificate of Accuracy included with every gage. |
| Standards | Customer print |
| Lead Time | Custom — quoted per drawing |
