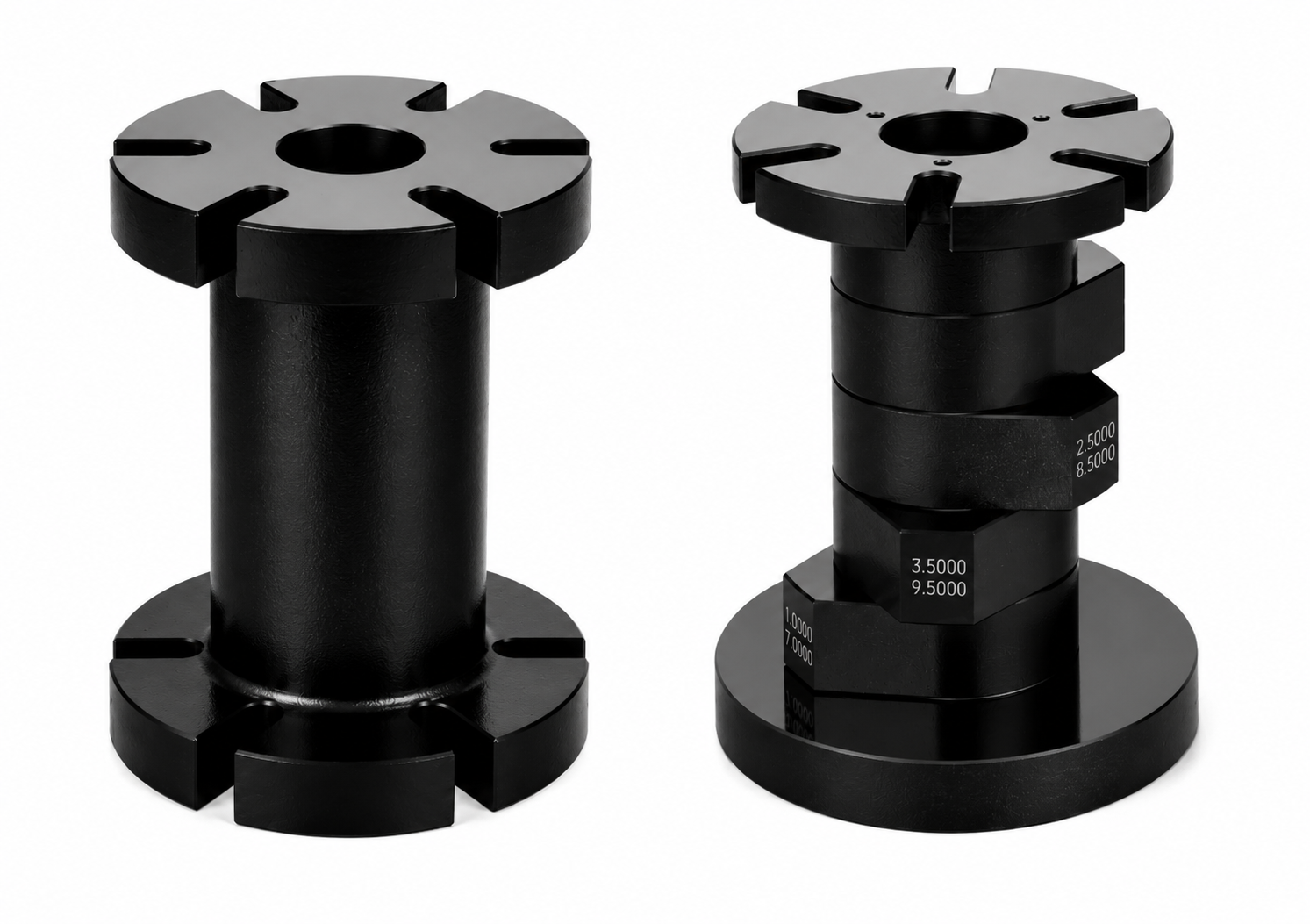

• ADM Depth Micrometer Master with optional riser

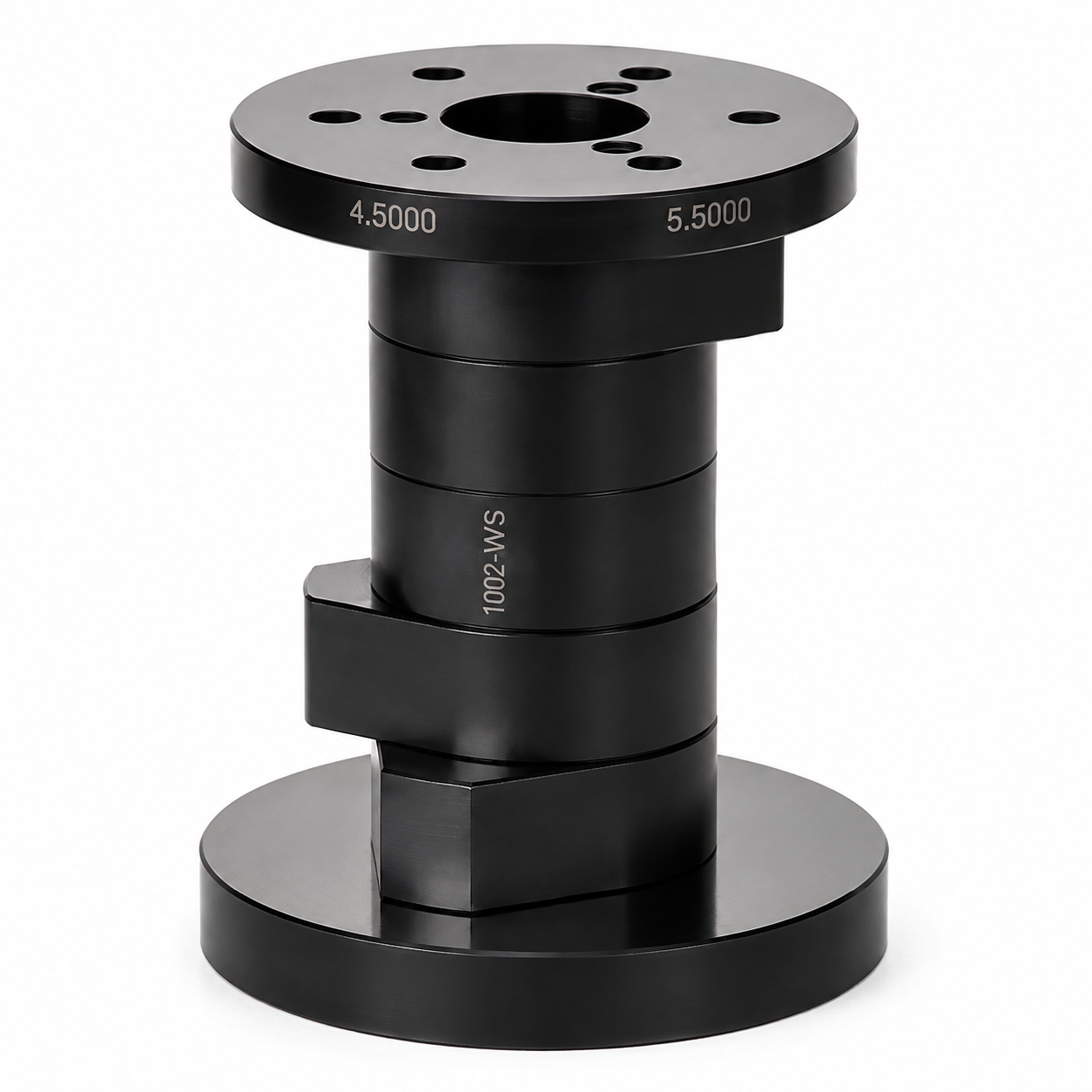

  • Depth Micrometer Master Model DM-1
1 2

Depth Micrometer Masters

Depth Micrometer Masters

$3,872.00 USD
$3,872.00 USD
Sale Sold out

Part #:ADM-E
Call for Quote

Features

  • Calibrate depth micrometers without gage block stacks
  • Model ADM: .500"–5.50" in one-inch steps, ±.0001"
  • Optional ADM riser doubles the depth range to 11.50"
  • Model DM-1: .50"–5.50" in one-inch steps, ±.0002"
  • English and Metric models available
  • Gerstner wood storage box available (Model ADM)
More Details View full details

Available Products

ModelUnitsSKUPrice
ADM English ADM-E $3,872.00
ADM Metric ADM-M $3,872.00
DM-1 English DM-1E $902.00
DM-1 Metric DM-1M $902.00

Product Details

Depth micrometer masters are used to calibrate depth micrometers. The master is superior to gage block calibration because it does not require block stacks, making it much faster to inspect the linear range of the tool.

Models

  • Model ADM — .500" to 5.50" in one-inch steps at ±.0001" (12.5mm to 137.5mm in 25mm steps at ±.0025mm). The optional riser doubles the depth range: .500" to 11.50" in one-inch steps at ±.0002" (12.5mm to 287.5mm in 25mm steps at ±.005mm). A Gerstner wood storage box is available.
  • Model DM-1 — .50" to 5.50" in one-inch steps at ±.0002". Case hardened, stabilized, ground and lapped.

A long form certificate is available for every model.
