Chamfer & Countersink Gages

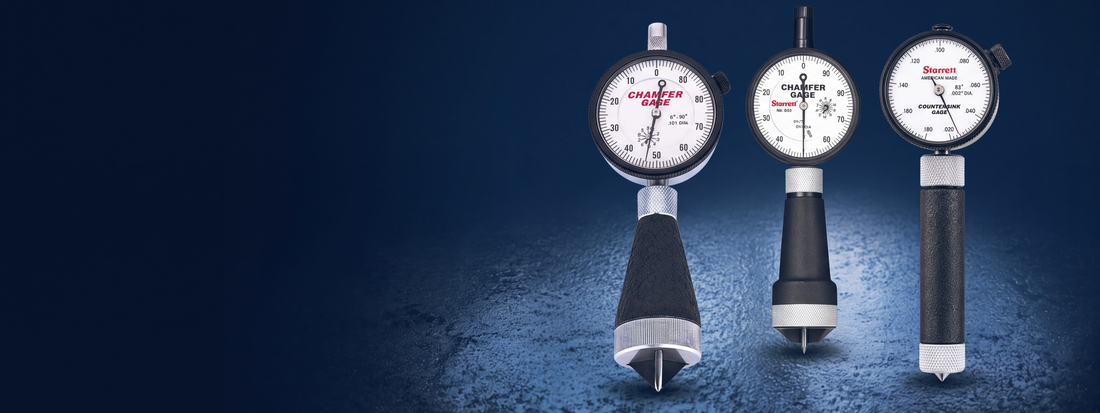

Accurately measure chamfers and countersinks with precision inspection gages designed for fast, repeatable dimensional verification. WESTport offers mechanical and electronic chamfer and countersink gages for internal, external and specialized angular applications.

Choose from multiple measuring ranges and angles including 0–90°, 82°, 90°, 100° and 90–127° configurations for production, machining, aerospace and quality-control applications.

Chamfer Gage or Countersink Gage?

Starrett distinguishes the two: a chamfer gage measures at the top edge of the chamfer, while a countersink gage seats on the angled surface and directly indicates the major diameter. Where a print calls a specific countersink angle — 82° for inch flat-head fasteners, 90° for metric, 100° for aerospace flush-fastener work — use the countersink gage cut to it.

Call WESTport for our guaranteed lowest price.
