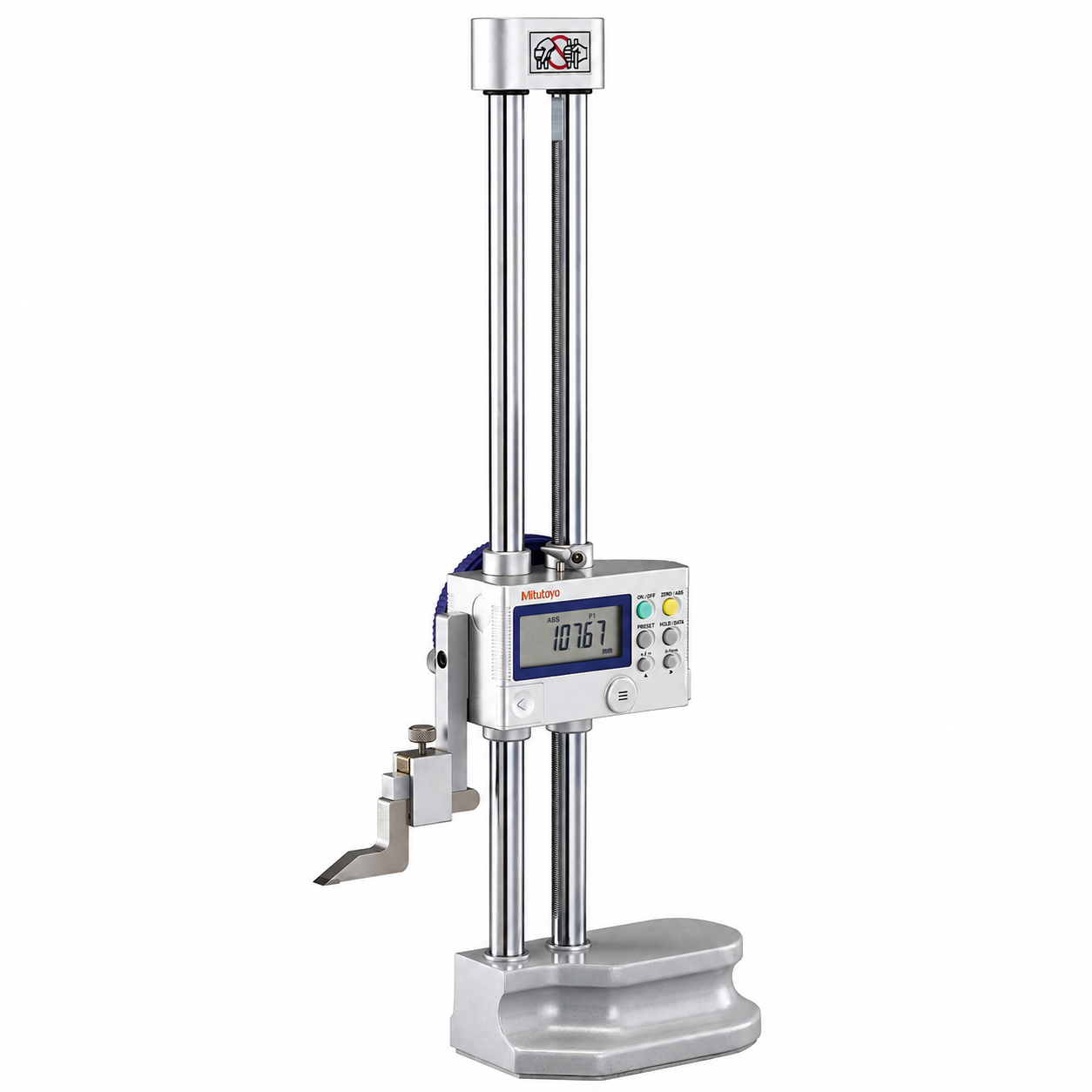

Mitutoyo Digimatic Double-Column Height Gage — 12"
Mitutoyo Digimatic Double-Column Height Gage — 12"
Part #:192-630-10
Couldn't load pickup availability
Key Features
- 0–12" / 0–300 mm measuring range
- .0005" / 0.01 mm resolution, switchable to .0002" / 0.005 mm
- ±.001" / ±0.02 mm accuracy
- Rigid double-column construction
- Coarse and fine feed
- SPC data output
- Large 11 mm LCD characters

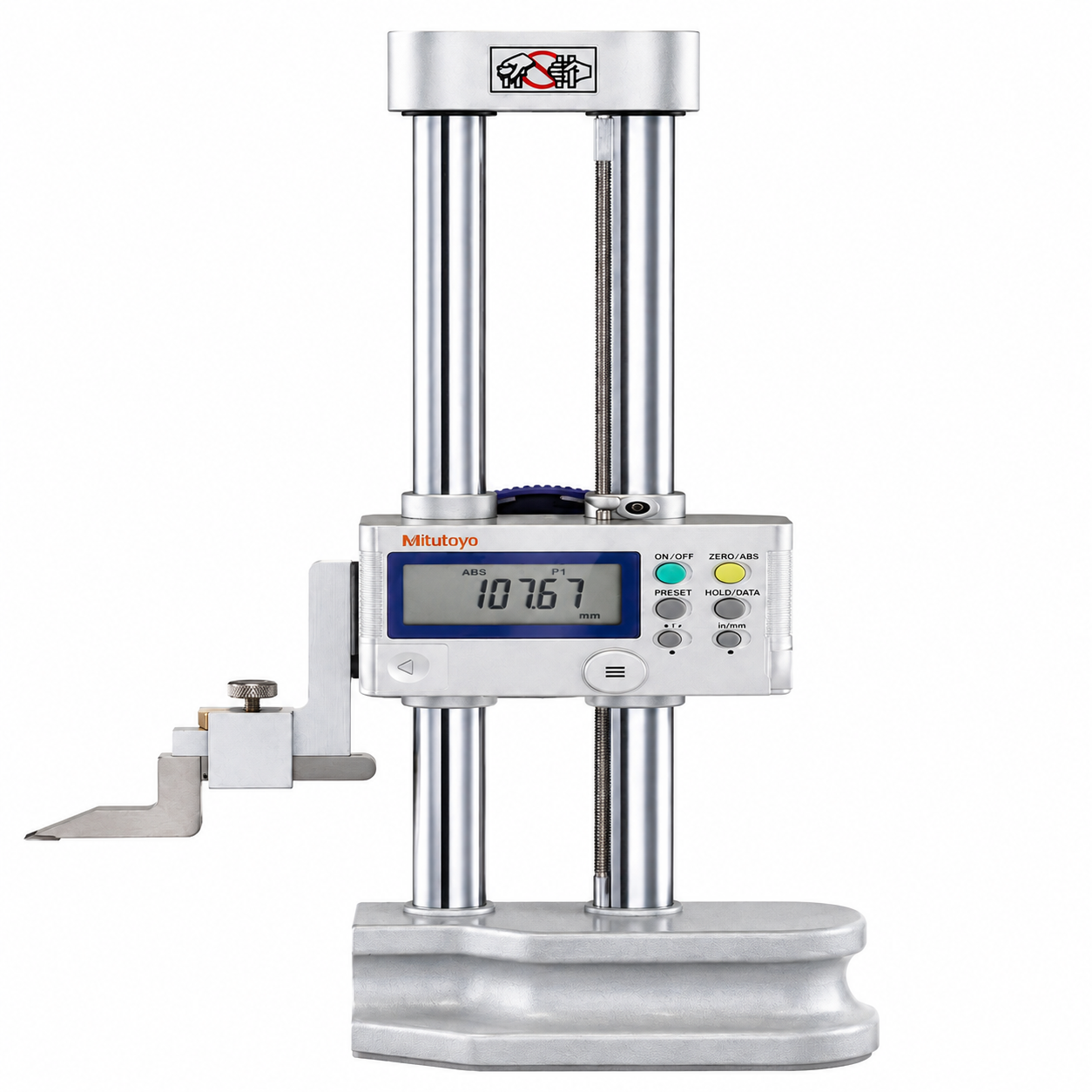

- Inclined slider handle for improved ergonomics
- Carbide-tipped scriber and scriber clamp included
Overview
The Mitutoyo 192-630-10 Digimatic Height Gage is a professional double-column electronic height gage for precision dimensional inspection and layout.
Double-Column Stability
The rigid double-column structure improves measuring stability, while coarse and fine feed lets the operator approach a measurement quickly and then position the scriber accurately.
Display and Data
Large 11 mm LCD characters keep the display easy to read, and frequently used buttons sit on the right-hand side of the panel for straightforward operation. SPC data output feeds compatible data-collection systems, and resolution is switchable between .0005" (0.01 mm) and .0002" (0.005 mm).
Applications
A clear step up from entry-level single-column height gages for quality-control laboratories, inspection departments and toolrooms working on the surface plate.
Specifications
| Manufacturer | Mitutoyo |
|---|---|
| Part Number | 192-630-10 |
| Measuring Range | 0–12" / 0–300 mm |
| Resolution | .0005" (0.01 mm); .0002" (0.005 mm) switchable |
| Accuracy | ±.001" / ±0.02 mm |
| Repeatability | .0005" / 0.01 mm |
| Construction | Double column |
| Response Speed | Approx. 500 mm/s |
| Data Output | SPC data output |
| Power Supply | One SR44 silver-oxide battery (No. 938882) |
| Battery Life | Approx. 3,500 hours |
| Operating Temperature | 0 °C to 40 °C |
| Standard Accessories | Scriber (No. 07GZA000), scriber clamp (No. 05GZA033), battery |
| Weight | 4.7 kg |
