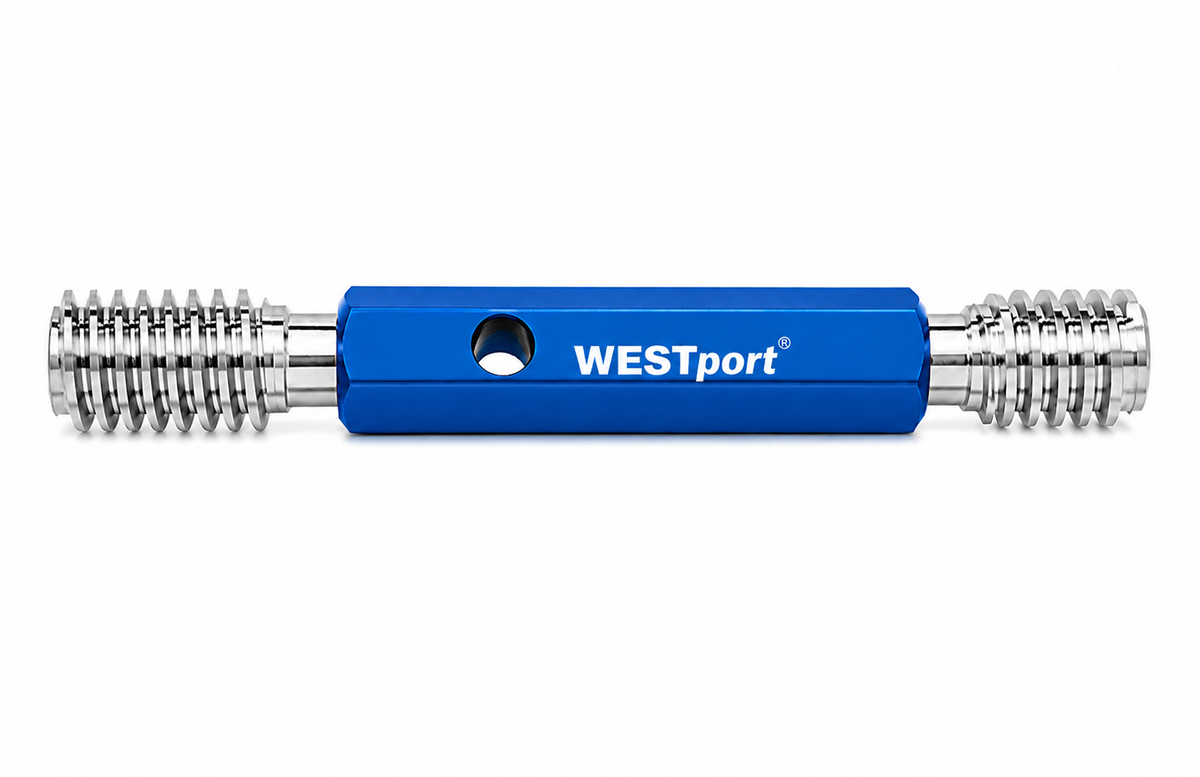

ACME Thread Set Plug Gage
ACME Thread Set Plug Gage
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Part #:ACMETSPG1
Quantity
Couldn't load pickup availability
Features
- Calibrates Adjustable Style matching ACME Thread Ring Gages
- 3 classes of fit – 2G, 3G, 4G
- Centralizing ACME threads classes of fit:: 2C, 3C, 4C
- ACME thread set plug gages compliant to ASME B1.5-1997
- ACME thread set plug gage lengths and blank standards compliant to ASME B47.1
Available Products
| Size | Class | Member | TPI | Pitch Diameter | SKU | Price | |
|---|---|---|---|---|---|---|---|
| .2500-16 | 2G | GO | 16 | .2148" | ACMETSPG1 | Call for Quote |
|
| .2500-16 | 2G | NO GO | 16 | .2043" | ACMETSPG1 | Call for Quote |
|
| .2500-16 | 2G | GO/NO GO w/ Handle | 16 | .2148"/.2043" | ACMETSPDE1 | Call for Quote |
|
| .2500-16 | 3G | GO | 16 | .2158" | ACMETSPG2 | Call for Quote |
|
| .2500-16 | 3G | NO GO | 16 | .2109" | ACMETSPG2 | Call for Quote |
|
| .2500-16 | 3G | GO/NO GO w/ Handle | 16 | .2158"/.2109" | ACMETSPDE2 | Call for Quote |
|
| .2500-16 | 4G | GO | 16 | .2168" | ACMETSPG3 | Call for Quote |
|
| .2500-16 | 4G | NO GO | 16 | .2133" | ACMETSPG3 | Call for Quote |
|
| .2500-16 | 4G | GO/NO GO w/ Handle | 16 | .2168"/.2133" | ACMETSPDE3 | Call for Quote |
|
| .3125-14 | 2G | GO | 14 | .2728" | ACMETSPG4 | Call for Quote |
|
| .3125-14 | 2G | NO GO | 14 | .2614" | ACMETSPG4 | Call for Quote |
|
| .3125-14 | 2G | GO/NO GO w/ Handle | 14 | .2728"/.2614" | ACMETSPDE4 | Call for Quote |
|
| .3125-14 | 3G | GO | 14 | .2738" | ACMETSPG5 | Call for Quote |
|
| .3125-14 | 3G | NO GO | 14 | .2685" | ACMETSPG5 | Call for Quote |
|
| .3125-14 | 3G | GO/NO GO w/ Handle | 14 | .2738"/.2685" | ACMETSPDE5 | Call for Quote |
|
| .3125-14 | 4G | GO | 14 | .2748" | ACMETSPG6 | Call for Quote |
|
| .3125-14 | 4G | NO GO | 14 | .2710" | ACMETSPG6 | Call for Quote |
|
| .3125-14 | 4G | GO/NO GO w/ Handle | 14 | .2748"/.2710" | ACMETSPDE6 | Call for Quote |
|
| .3750-12 | 2G | GO | 12 | .3284" | ACMETSPG7 | Call for Quote |
|
| .3750-12 | 2G | NO GO | 12 | .3161" | ACMETSPG7 | Call for Quote |
|
| .3750-12 | 2G | GO/NO GO w/ Handle | 12 | .3284"/.3161" | ACMETSPDE7 | Call for Quote |
|
| .3750-12 | 3G | GO | 12 | .3296" | ACMETSPG8 | Call for Quote |
|
| .3750-12 | 3G | NO GO | 12 | .3238" | ACMETSPG8 | Call for Quote |
|
| .3750-12 | 3G | GO/NO GO w/ Handle | 12 | .3296"/.3238" | ACMETSPDE8 | Call for Quote |
|
| .3750-12 | 4G | GO | 12 | .3309" | ACMETSPG9 | Call for Quote |
|
| .3750-12 | 4G | NO GO | 12 | .3268" | ACMETSPG9 | Call for Quote |
|
| .3750-12 | 4G | GO/NO GO w/ Handle | 12 | .3309"/.3268" | ACMETSPDE9 | Call for Quote |
|
| .4375-12 | 2G | GO | 12 | .3909" | ACMETSPG10 | Call for Quote |
|
| .4375-12 | 2G | NO GO | 12 | .3783" | ACMETSPG10 | Call for Quote |
|
| .4375-12 | 2G | GO/NO GO w/ Handle | 12 | .3909"/.3783" | ACMETSPDE10 | Call for Quote |
|
| .4375-12 | 3G | GO | 12 | .3921" | ACMETSPG11 | Call for Quote |
|
| .4375-12 | 3G | NO GO | 12 | .3862" | ACMETSPG11 | Call for Quote |
|
| .4375-12 | 3G | GO/NO GO w/ Handle | 12 | .3921"/.3862" | ACMETSPDE11 | Call for Quote |
|
| .4375-12 | 4G | GO | 12 | .3934" | ACMETSPG12 | Call for Quote |
|
| .4375-12 | 4G | NO GO | 12 | .3892" | ACMETSPG12 | Call for Quote |
|
| .4375-12 | 4G | GO/NO GO w/ Handle | 12 | .3934"/.3892" | ACMETSPDE12 | Call for Quote |
|
| .5000-10 | 2G | GO | 10 | .4443" | ACMETSPG13 | Call for Quote |
|
| .5000-10 | 2G | NO GO | 10 | .4306" | ACMETSPG13 | Call for Quote |
|
| .5000-10 | 2G | GO/NO GO w/ Handle | 10 | .4443"/.4306" | ACMETSPDE13 | Call for Quote |
|
| .5000-10 | 3G | GO | 10 | .4458" | ACMETSPG14 | Call for Quote |
|
| .5000-10 | 3G | NO GO | 10 | .4394" | ACMETSPG14 | Call for Quote |
|
| .5000-10 | 3G | GO/NO GO w/ Handle | 10 | .4458"/.4394" | ACMETSPDE14 | Call for Quote |
|
| .5000-10 | 4G | GO | 10 | .4472" | ACMETSPG15 | Call for Quote |
|
| .5000-10 | 4G | NO GO | 10 | .4426" | ACMETSPG15 | Call for Quote |
|
| .5000-10 | 4G | GO/NO GO w/ Handle | 10 | .4472"/.4426" | ACMETSPDE15 | Call for Quote |
|
| .6250-8 | 2G | GO | 8 | .5562" | ACMETSPG16 | Call for Quote |
|
| .6250-8 | 2G | NO GO | 8 | .5408" | ACMETSPG16 | Call for Quote |
|
| .6250-8 | 2G | GO/NO GO w/ Handle | 8 | .5562"/.5408" | ACMETSPDE16 | Call for Quote |
|
| .6250-8 | 3G | GO | 8 | .5578" | ACMETSPG17 | Call for Quote |
|
| .6250-8 | 3G | NO GO | 8 | .5506" | ACMETSPG17 | Call for Quote |
|
| .6250-8 | 3G | GO/NO GO w/ Handle | 8 | .5578"/.5506" | ACMETSPDE17 | Call for Quote |
|
| .6250-8 | 4G | GO | 8 | .5593" | ACMETSPG18 | Call for Quote |
|
| .6250-8 | 4G | NO GO | 8 | .5542" | ACMETSPG18 | Call for Quote |
|
| .6250-8 | 4G | GO/NO GO w/ Handle | 8 | .5593"/.5542" | ACMETSPDE18 | Call for Quote |
|
| .7500-6 | 2G | GO | 6 | .6598" | ACMETSPG19 | Call for Quote |
|
| .7500-6 | 2G | NO GO | 6 | .6424" | ACMETSPG19 | Call for Quote |
|
| .7500-6 | 2G | GO/NO GO w/ Handle | 6 | .6598"/.6424" | ACMETSPDE19 | Call for Quote |
|
| .7500-6 | 3G | GO | 6 | .6615" | ACMETSPG20 | Call for Quote |
|
| .7500-6 | 3G | NO GO | 6 | .6534" | ACMETSPG20 | Call for Quote |
|
| .7500-6 | 3G | GO/NO GO w/ Handle | 6 | .6615"/.6534" | ACMETSPDE20 | Call for Quote |
|
| .7500-6 | 4G | GO | 6 | .6632" | ACMETSPG21 | Call for Quote |
|
| .7500-6 | 4G | NO GO | 6 | .6574" | ACMETSPG21 | Call for Quote |
|
| .7500-6 | 4G | GO/NO GO w/ Handle | 6 | .6632"/.6574" | ACMETSPDE21 | Call for Quote |
|
| .8750-6 | 2G | GO | 6 | .7842" | ACMETSPG22 | Call for Quote |
|
| .8750-6 | 2G | NO GO | 6 | .7663" | ACMETSPG22 | Call for Quote |
|
| .8750-6 | 2G | GO/NO GO w/ Handle | 6 | .7842"/.7663" | ACMETSPDE22 | Call for Quote |
|
| .8750-6 | 3G | GO | 6 | .7861" | ACMETSPG23 | Call for Quote |
|
| .8750-6 | 3G | NO GO | 6 | .7778" | ACMETSPG23 | Call for Quote |
|
| .8750-6 | 3G | GO/NO GO w/ Handle | 6 | .7861"/.7778" | ACMETSPDE23 | Call for Quote |
|
| .8750-6 | 4G | GO | 6 | .7880" | ACMETSPG24 | Call for Quote |
|
| .8750-6 | 4G | NO GO | 6 | .7820" | ACMETSPG24 | Call for Quote |
|
| .8750-6 | 4G | GO/NO GO w/ Handle | 6 | .7880"/.7820" | ACMETSPDE24 | Call for Quote |
|
| 1.0000-5 | 2G | GO | 5 | .8920" | ACMETSPG25 | Call for Quote |
|
| 1.0000-5 | 2G | NO GO | 5 | .8726" | ACMETSPG25 | Call for Quote |
|
| 1.0000-5 | 2G | GO/NO GO w/ Handle | 5 | .8920"/.8726" | ACMETSPDE25 | Call for Quote |
|
| 1.0000-5 | 3G | GO | 5 | .8940" | ACMETSPG26 | Call for Quote |
|
| 1.0000-5 | 3G | NO GO | 5 | .8849" | ACMETSPG26 | Call for Quote |
|
| 1.0000-5 | 3G | GO/NO GO w/ Handle | 5 | .8940"/.8849" | ACMETSPDE26 | Call for Quote |
|
| 1.0000-5 | 4G | GO | 5 | .8960" | ACMETSPG27 | Call for Quote |
|
| 1.0000-5 | 4G | NO GO | 5 | .8895" | ACMETSPG27 | Call for Quote |
|
| 1.0000-5 | 4G | GO/NO GO w/ Handle | 5 | .8960"/.8895" | ACMETSPDE27 | Call for Quote |
|
| 1.1250-5 | 2G | GO | 5 | 1.0165" | ACMETSPG28 | Call for Quote |
|
| 1.1250-5 | 2G | NO GO | 5 | .9967" | ACMETSPG28 | Call for Quote |
|
| 1.1250-5 | 2G | GO/NO GO w/ Handle | 5 | 1.0165"/.9967" | ACMETSPDE28 | Call for Quote |
|
| 1.1250-5 | 3G | GO | 5 | 1.0186" | ACMETSPG29 | Call for Quote |
|
| 1.1250-5 | 3G | NO GO | 5 | 1.0094" | ACMETSPG29 | Call for Quote |
|
| 1.1250-5 | 3G | GO/NO GO w/ Handle | 5 | 1.0186"/1.0094" | ACMETSPDE29 | Call for Quote |
|
| 1.1250-5 | 4G | GO | 5 | 1.0208" | ACMETSPG30 | Call for Quote |
|
| 1.1250-5 | 4G | NO GO | 5 | 1.0142" | ACMETSPG30 | Call for Quote |
|
| 1.1250-5 | 4G | GO/NO GO w/ Handle | 5 | 1.0208"/1.0142" | ACMETSPDE30 | Call for Quote |
|
| 1.2500-5 | 2G | GO | 5 | 1.1411" | ACMETSPG31 | Call for Quote |
|
| 1.2500-5 | 2G | NO GO | 5 | 1.1210" | ACMETSPG31 | Call for Quote |
|
| 1.2500-5 | 2G | GO/NO GO w/ Handle | 5 | 1.1411"/1.1210" | ACMETSPDE31 | Call for Quote |
|
| 1.2500-5 | 3G | GO | 5 | 1.1433" | ACMETSPG32 | Call for Quote |
|
| 1.2500-5 | 3G | NO GO | 5 | 1.1339" | ACMETSPG32 | Call for Quote |
|
| 1.2500-5 | 3G | GO/NO GO w/ Handle | 5 | 1.1433"/1.1339" | ACMETSPDE32 | Call for Quote |
|
| 1.2500-5 | 4G | GO | 5 | 1.1455" | ACMETSPG33 | Call for Quote |
|
| 1.2500-5 | 4G | NO GO | 5 | 1.1388" | ACMETSPG33 | Call for Quote |
|
| 1.2500-5 | 4G | GO/NO GO w/ Handle | 5 | 1.1455"/1.1388" | ACMETSPDE33 | Call for Quote |
|
| 1.3750-4 | 2G | GO | 4 | 1.2406" | ACMETSPG34 | Call for Quote |
|
| 1.3750-4 | 2G | NO GO | 4 | 1.2186" | ACMETSPG34 | Call for Quote |
|
| 1.3750-4 | 2G | GO/NO GO w/ Handle | 4 | 1.2406"/1.2186" | ACMETSPDE34 | Call for Quote |
|
| 1.3750-4 | 3G | GO | 4 | 1.2430" | ACMETSPG35 | Call for Quote |
|
| 1.3750-4 | 3G | NO GO | 4 | 1.2327" | ACMETSPG35 | Call for Quote |
|
| 1.3750-4 | 3G | GO/NO GO w/ Handle | 4 | 1.2430"/1.2327" | ACMETSPDE35 | Call for Quote |
|
| 1.3750-4 | 4G | GO | 4 | 1.2453" | ACMETSPG36 | Call for Quote |
|
| 1.3750-4 | 4G | NO GO | 4 | 1.2380" | ACMETSPG36 | Call for Quote |
|
| 1.3750-4 | 4G | GO/NO GO w/ Handle | 4 | 1.2453"/1.2380" | ACMETSPDE36 | Call for Quote |
|
| 1.5000-4 | 2G | GO | 4 | 1.3652" | ACMETSPG37 | Call for Quote |
|
| 1.5000-4 | 2G | NO GO | 4 | 1.3429" | ACMETSPG37 | Call for Quote |
|
| 1.5000-4 | 2G | GO/NO GO w/ Handle | 4 | 1.3652"/1.3429" | ACMETSPDE37 | Call for Quote |
|
| 1.5000-4 | 3G | GO | 4 | 1.3677" | ACMETSPG38 | Call for Quote |
|
| 1.5000-4 | 3G | NO GO | 4 | 1.3573" | ACMETSPG38 | Call for Quote |
|
| 1.5000-4 | 3G | GO/NO GO w/ Handle | 4 | 1.3677"/1.3573" | ACMETSPDE38 | Call for Quote |
|
| 1.5000-4 | 4G | GO | 4 | 1.3701" | ACMETSPG39 | Call for Quote |
|
| 1.5000-4 | 4G | NO GO | 4 | 1.3627" | ACMETSPG39 | Call for Quote |
|
| 1.5000-4 | 4G | GO/NO GO w/ Handle | 4 | 1.3701"/1.3627" | ACMETSPDE39 | Call for Quote |
|
| 1.7500-4 | 2G | GO | 4 | 1.6145" | ACMETSPG40 | Call for Quote |
|
| 1.7500-4 | 2G | NO GO | 4 | 1.5916" | ACMETSPG40 | Call for Quote |
|
| 1.7500-4 | 2G | GO/NO GO w/ Handle | 4 | 1.6145"/1.5916" | ACMETSPDE40 | Call for Quote |
|
| 1.7500-4 | 3G | GO | 4 | 1.6145" | ACMETSPG41 | Call for Quote |
|
| 1.7500-4 | 3G | NO GO | 4 | 1.5916" | ACMETSPG41 | Call for Quote |
|
| 1.7500-4 | 3G | GO/NO GO w/ Handle | 4 | 1.6145"/1.5916" | ACMETSPDE41 | Call for Quote |
|
| 1.7500-4 | 4G | GO | 4 | 1.6198" | ACMETSPG42 | Call for Quote |
|
| 1.7500-4 | 4G | NO GO | 4 | 1.6122" | ACMETSPG42 | Call for Quote |
|
| 1.7500-4 | 4G | GO/NO GO w/ Handle | 4 | 1.6198"/1.6122" | ACMETSPDE42 | Call for Quote |
|
| 2.000-4 | 2G | GO | 4 | 1.8637" | ACMETSPG43 | Call for Quote |
|
| 2.000-4 | 2G | NO GO | 4 | 1.8402" | ACMETSPG43 | Call for Quote |
|
| 2.000-4 | 2G | GO/NO GO w/ Handle | 4 | 1.8637"/1.8402" | ACMETSPDE43 | Call for Quote |
|
| 2.000-4 | 3G | GO | 4 | 1.8665" | ACMETSPG44 | Call for Quote |
|
| 2.000-4 | 3G | NO GO | 4 | 1.8555" | ACMETSPG44 | Call for Quote |
|
| 2.000-4 | 3G | GO/NO GO w/ Handle | 4 | 1.8665"/1.8555" | ACMETSPDE44 | Call for Quote |
|
| 2.000-4 | 4G | GO | 4 | 1.8693" | ACMETSPG45 | Call for Quote |
|
| 2.000-4 | 4G | NO GO | 4 | 1.8615" | ACMETSPG45 | Call for Quote |
|
| 2.000-4 | 4G | GO/NO GO w/ Handle | 4 | 1.8693"/1.8615" | ACMETSPDE45 | Call for Quote |
|
| 2.2500-3 | 2G | GO | 3 | 2.0713" | ACMETSPG46 | Call for Quote |
|
| 2.2500-3 | 2G | NO GO | 3 | 2.0450" | ACMETSPG46 | Call for Quote |
|
| 2.2500-3 | 2G | GO/NO GO w/ Handle | 3 | 2.0713"/2.0450" | ACMETSPDE46 | Call for Quote |
|
| 2.2500-3 | 3G | GO | 3 | 2.0743" | ACMETSPG47 | Call for Quote |
|
| 2.2500-3 | 3G | NO GO | 3 | 2.0620" | ACMETSPG47 | Call for Quote |
|
| 2.2500-3 | 3G | GO/NO GO w/ Handle | 3 | 2.0743"/2.0620" | ACMETSPDE47 | Call for Quote |
|
| 2.2500-3 | 4G | GO | 3 | 2.0773" | ACMETSPG48 | Call for Quote |
|
| 2.2500-3 | 4G | NO GO | 3 | 2.0685" | ACMETSPG48 | Call for Quote |
|
| 2.2500-3 | 4G | GO/NO GO w/ Handle | 3 | 2.0773"/2.0685" | ACMETSPDE48 | Call for Quote |
|
| 2.500-3 | 2G | GO | 3 | 2.3207" | ACMETSPG49 | Call for Quote |
|
| 2.500-3 | 2G | NO GO | 3 | 2.2939" | ACMETSPG49 | Call for Quote |
|
| 2.500-3 | 2G | GO/NO GO w/ Handle | 3 | 2.3207"/2.2939" | ACMETSPDE49 | Call for Quote |
|
| 2.500-3 | 3G | GO | 3 | 2.3238" | ACMETSPG50 | Call for Quote |
|
| 2.500-3 | 3G | NO GO | 3 | 2.3113" | ACMETSPG50 | Call for Quote |
|
| 2.500-3 | 3G | GO/NO GO w/ Handle | 3 | 2.3238"/2.3113" | ACMETSPDE50 | Call for Quote |
|
| 2.500-3 | 4G | GO | 3 | 2.3270" | ACMETSPG51 | Call for Quote |
|
| 2.500-3 | 4G | NO GO | 3 | 2.3181" | ACMETSPG51 | Call for Quote |
|
| 2.500-3 | 4G | GO/NO GO w/ Handle | 3 | 2.3270"/2.3181" | ACMETSPDE51 | Call for Quote |
|
| 2.7500-3 | 2G | GO | 3 | 2.5700" | ACMETSPG52 | Call for Quote |
|
| 2.7500-3 | 2G | NO GO | 3 | 2.5427" | ACMETSPG52 | Call for Quote |
|
| 2.7500-3 | 2G | GO/NO GO w/ Handle | 3 | 2.5700"/2.5427" | ACMETSPDE52 | Call for Quote |
|
| 2.7500-3 | 3G | GO | 3 | 2.5734" | ACMETSPG53 | Call for Quote |
|
| 2.7500-3 | 3G | NO GO | 3 | 2.5607" | ACMETSPG53 | Call for Quote |
|
| 2.7500-3 | 3G | GO/NO GO w/ Handle | 3 | 2.5734"/2.5607" | ACMETSPDE53 | Call for Quote |
|
| 2.7500-3 | 4G | GO | 3 | 2.5767" | ACMETSPG54 | Call for Quote |
|
| 2.7500-3 | 4G | NO GO | 3 | 2.5676" | ACMETSPG54 | Call for Quote |
|
| 2.7500-3 | 4G | GO/NO GO w/ Handle | 3 | 2.5767"/2.5676" | ACMETSPDE54 | Call for Quote |
|
| 3.0000-2 | 2G | GO | 2 | 2.7360" | ACMETSPG55 | Call for Quote |
|
| 3.0000-2 | 2G | NO GO | 2 | 2.7044" | ACMETSPG55 | Call for Quote |
|
| 3.0000-2 | 2G | GO/NO GO w/ Handle | 2 | 2.7360"/2.7044" | ACMETSPDE55 | Call for Quote |
|
| 3.0000-2 | 3G | GO | 2 | 2.7395" | ACMETSPG56 | Call for Quote |
|
| 3.0000-2 | 3G | NO GO | 2 | 2.7248" | ACMETSPG56 | Call for Quote |
|
| 3.0000-2 | 3G | GO/NO GO w/ Handle | 2 | 2.7395"/2.7248" | ACMETSPDE56 | Call for Quote |
|
| 3.0000-2 | 4G | GO | 2 | 2.7430" | ACMETSPG57 | Call for Quote |
|
| 3.0000-2 | 4G | NO GO | 2 | 2.7325" | ACMETSPG57 | Call for Quote |
|
| 3.0000-2 | 4G | GO/NO GO w/ Handle | 2 | 2.7430"/2.7325" | ACMETSPDE57 | Call for Quote |
|
| 3.5000-2 | 2G | GO | 2 | 3.2350" | ACMETSPG58 | Call for Quote |
|
| 3.5000-2 | 2G | NO GO | 2 | 3.2026" | ACMETSPG58 | Call for Quote |
|
| 3.5000-2 | 2G | GO/NO GO w/ Handle | 2 | 3.2350"/3.2026" | ACMETSPDE58 | Call for Quote |
|
| 3.5000-2 | 3G | GO | 2 | 3.2388" | ACMETSPG59 | Call for Quote |
|
| 3.5000-2 | 3G | NO GO | 2 | 3.2237" | ACMETSPG59 | Call for Quote |
|
| 3.5000-2 | 3G | GO/NO GO w/ Handle | 2 | 3.2388"/3.2237" | ACMETSPDE59 | Call for Quote |
|
| 3.5000-2 | 4G | GO | 2 | 3.2425" | ACMETSPG60 | Call for Quote |
|
| 3.5000-2 | 4G | NO GO | 2 | 3.2317" | ACMETSPG60 | Call for Quote |
|
| 3.5000-2 | 4G | GO/NO GO w/ Handle | 2 | 3.2425"/3.2317" | ACMETSPDE60 | Call for Quote |
|
| 4.0000-2 | 2G | GO | 2 | 3.7340" | ACMETSPG61 | Call for Quote |
|
| 4.0000-2 | 2G | NO GO | 2 | 3.7008" | ACMETSPG61 | Call for Quote |
|
| 4.0000-2 | 2G | GO/NO GO w/ Handle | 2 | 3.7340"/3.7008" | ACMETSPDE61 | Call for Quote |
|
| 4.0000-2 | 3G | GO | 2 | 3.7380" | ACMETSPG62 | Call for Quote |
|
| 4.0000-2 | 3G | NO GO | 2 | 3.7225" | ACMETSPG62 | Call for Quote |
|
| 4.0000-2 | 3G | GO/NO GO w/ Handle | 2 | 3.7380"/3.7225" | ACMETSPDE62 | Call for Quote |
|
| 4.0000-2 | 4G | GO | 2 | 3.7420" | ACMETSPG63 | Call for Quote |
|
| 4.0000-2 | 4G | NO GO | 2 | 3.7309" | ACMETSPG63 | Call for Quote |
|
| 4.0000-2 | 4G | GO/NO GO w/ Handle | 2 | 3.7420"/3.7309" | ACMETSPDE63 | Call for Quote |
|
| 4.5000-2 | 2G | GO | 2 | 4.2330" | ACMETSPG64 | Call for Quote |
|
| 4.5000-2 | 2G | NO GO | 2 | 4.1991" | ACMETSPG64 | Call for Quote |
|
| 4.5000-2 | 2G | GO/NO GO w/ Handle | 2 | 4.2330"/4.1991" | ACMETSPDE64 | Call for Quote |
|
| 4.5000-2 | 3G | GO | 2 | 4.2373" | ACMETSPG65 | Call for Quote |
|
| 4.5000-2 | 3G | NO GO | 2 | 4.2215" | ACMETSPG65 | Call for Quote |
|
| 4.5000-2 | 3G | GO/NO GO w/ Handle | 2 | 4.2373"/4.2215" | ACMETSPDE65 | Call for Quote |
|
| 4.5000-2 | 4G | GO | 2 | 4.2415" | ACMETSPG66 | Call for Quote |
|
| 4.5000-2 | 4G | NO GO | 2 | 4.2302" | ACMETSPG66 | Call for Quote |
|
| 4.5000-2 | 4G | GO/NO GO w/ Handle | 2 | 4.2415"/4.2302" | ACMETSPDE66 | Call for Quote |
|
| 5.0000-2 | 2G | GO | 2 | 4.7319" | ACMETSPG67 | Call for Quote |
|
| 5.0000-2 | 2G | NO GO | 2 | 4.6973" | ACMETSPG67 | Call for Quote |
|
| 5.0000-2 | 2G | GO/NO GO w/ Handle | 2 | 4.7319"/4.6973" | ACMETSPDE67 | Call for Quote |
|
| 5.0000-2 | 3G | GO | 2 | 4.7364" | ACMETSPG68 | Call for Quote |
|
| 5.0000-2 | 3G | NO GO | 2 | 4.7202" | ACMETSPG68 | Call for Quote |
|
| 5.0000-2 | 3G | GO/NO GO w/ Handle | 2 | 4.7364"/4.7202" | ACMETSPDE68 | Call for Quote |
|
| 5.0000-2 | 4G | GO | 2 | 4.7409" | ACMETSPG69 | Call for Quote |
|
| 5.0000-2 | 4G | NO GO | 2 | 4.7294" | ACMETSPG69 | Call for Quote |
|
| 5.0000-2 | 4G | GO/NO GO w/ Handle | 2 | 4.7409"/4.7294" | ACMETSPDE69 | Call for Quote |
|
|
No variants match your selected filters. |
|||||||
Product Details
WESTport Gage provides a complete line of standard and special General Purpose ACME Truncated Style GO/NO GO Thread Set Plug Gages in compliance with ASME B1.5 - 1997. ACME Thread Set Plug Gages should only be used to calibrate adjustable style matching ACME Thread Ring Gages. Do not use them to gage an internal threaded product. The ACME thread list of diameters listed here and their associated pitches are recommended as preferred. They have been specifically selected to meet requirements with the least number of items. In doing so this keeps the inventory of gages and tooling to a minimum in an effort to reduce costs.
There are three classes of fit for ACME General Purpose thread gages; 2G, 3G and 4G. Centralizing ACME threads have classes of fit which are 2C, 3C and 4C. ACME threads feature a 29 degree angle of thread which is the angle between the sides of the thread measured in an axial plane. ACME Thread Set Plug Gage lengths and blank standards are compliant to ASME B47.1
Class X, Class W ACME Thread Set Plug Gages, Centralizing ACME thread gages, Multiple start ACME thread gages and any special requirements will be priced on request.
There are three classes of fit for ACME General Purpose thread gages; 2G, 3G and 4G. Centralizing ACME threads have classes of fit which are 2C, 3C and 4C. ACME threads feature a 29 degree angle of thread which is the angle between the sides of the thread measured in an axial plane. ACME Thread Set Plug Gage lengths and blank standards are compliant to ASME B47.1
Class X, Class W ACME Thread Set Plug Gages, Centralizing ACME thread gages, Multiple start ACME thread gages and any special requirements will be priced on request.
