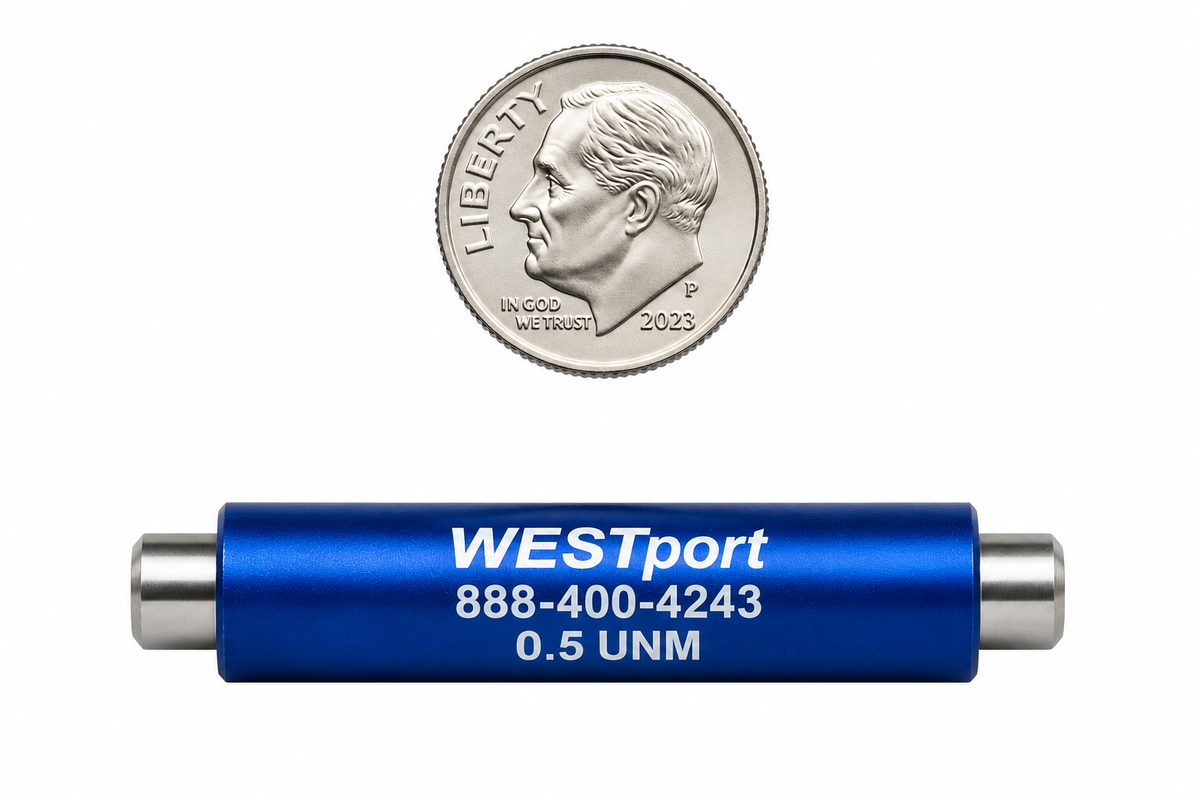

Unified Miniature Screw Thread Ring Gage
Unified Miniature Screw Thread Ring Gage
Regular price
$565.00 USD
Regular price
Sale price
$565.00 USD
Part #:UNMRG1
Optional Add-Ons
Quantity
Couldn't load pickup availability
Features
- Manufactured per American Standard B.110M 2004
- Used for watches, instruments and miniature mechanisms
- Diameter range .30mm to 1.40mm (.0118”-.0551”)
- Free NIST certificate of accuracy
Available Products
| Size | Member | Pitch | Pitch Diameter | SKU | Price | |
|---|---|---|---|---|---|---|
| 0.3 | GO | 0.08 | 0.248mm | UNMRG1 | $565.00 |
|
| 0.3 | NO GO | 0.08 | 0.234mm | UNMRNG1 | $565.00 |
|
| 0.3 | GO/NO GO Ring Gage Set | 0.08 | 0.248mm - 0.234mm | UNMRDE1 | $1,130.00 |
|
| 0.35 | GO | 0.09 | 0.292mm | UNMRG2 | $565.00 |
|
| 0.35 | NO GO | 0.09 | 0.277mm | UNMRNG2 | $565.00 |
|
| 0.35 | GO/NO GO Ring Gage Set | 0.09 | 0.292mm - 0.277mm | UNMRDE2 | $1,130.00 |
|
| 0.4 | GO | 0.1 | 0.335mm | UNMRG3 | $565.00 |
|
| 0.4 | NO GO | 0.1 | 0.319mm | UNMRNG3 | $565.00 |
|
| 0.4 | GO/NO GO Ring Gage Set | 0.1 | 0.335mm - 0.319mm | UNMRDE3 | $1,130.00 |
|
| 0.45 | GO | 0.1 | 0.385mm | UNMRG4 | $565.00 |
|
| 0.45 | NO GO | 0.1 | 0.369mm | UNMRNG4 | $565.00 |
|
| 0.45 | GO/NO GO Ring Gage Set | 0.1 | 0.385mm - 0.369mm | UNMRDE4 | $1,130.00 |
|
| 0.5 | GO | 0.125 | 0.419mm | UNMRG5 | $565.00 |
|
| 0.5 | NO GO | 0.125 | 0.401mm | UNMRNG5 | $565.00 |
|
| 0.5 | GO/NO GO Ring Gage Set | 0.125 | 0.419mm - 0.401mm | UNMRDE5 | $1,130.00 |
|
| 0.55 | GO | 0.125 | 0.469mm | UNMRG6 | $565.00 |
|
| 0.55 | NO GO | 0.125 | 0.451mm | UNMRNG6 | $565.00 |
|
| 0.55 | GO/NO GO Ring Gage Set | 0.125 | 0.469mm - 0.451mm | UNMRDE6 | $1,130.00 |
|
| 0.6 | GO | 0.15 | 0.503mm | UNMRG7 | $565.00 |
|
| 0.6 | NO GO | 0.15 | 0.483mm | UNMRNG7 | $565.00 |
|
| 0.6 | GO/NO GO Ring Gage Set | 0.15 | 0.503mm - 0.483mm | UNMRDE7 | $1,130.00 |
|
| 0.7 | GO | 0.175 | 0.586mm | UNMRG8 | $565.00 |
|
| 0.7 | NO GO | 0.175 | 0.564mm | UNMRNG8 | $565.00 |
|
| 0.7 | GO/NO GO Ring Gage Set | 0.175 | 0.586mm - 0.564mm | UNMRDE8 | $1,130.00 |
|
| 0.8 | GO | 0.2 | 0.670mm | UNMRG9 | $565.00 |
|
| 0.8 | NO GO | 0.2 | 0.646mm | UNMRNG9 | $565.00 |
|
| 0.8 | GO/NO GO Ring Gage Set | 0.2 | 0.670mm - 0.646mm | UNMRDE9 | $1,130.00 |
|
| 0.9 | GO | 0.225 | 0.754mm | UNMRG10 | $565.00 |
|
| 0.9 | NO GO | 0.225 | 0.728mm | UNMRNG10 | $565.00 |
|
| 0.9 | GO/NO GO Ring Gage Set | 0.225 | 0.754mm - 0.728mm | UNMRDE10 | $1,130.00 |
|
| 1 | GO | 0.25 | 0.838mm | UNMRG11 | $565.00 |
|
| 1 | NO GO | 0.25 | 0.810mm | UNMRNG11 | $565.00 |
|
| 1 | GO/NO GO Ring Gage Set | 0.25 | 0.838mm - 0.810mm | UNMRDE11 | $1,130.00 |
|
| 1.1 | GO | 0.25 | 0.938mm | UNMRG12 | $565.00 |
|
| 1.1 | NO GO | 0.25 | 0.910mm | UNMRNG12 | $565.00 |
|
| 1.1 | GO/NO GO Ring Gage Set | 0.25 | 0.938mm - 0.910mm | UNMRDE12 | $1,130.00 |
|
| 1.2 | GO | 0.25 | 1.038mm | UNMRG13 | $565.00 |
|
| 1.2 | NO GO | 0.25 | 1.010mm | UNMRNG13 | $565.00 |
|
| 1.2 | GO/NO GO Ring Gage Set | 0.25 | 1.038mm - 1.010mm | UNMRDE13 | $1,130.00 |
|
| 1.4 | GO | 0.3 | 1.205mm | UNMRG14 | $565.00 |
|
| 1.4 | NO GO | 0.3 | 1.173mm | UNMRNG14 | $565.00 |
|
| 1.4 | GO/NO GO Ring Gage Set | 0.3 | 1.205mm - 1.173mm | UNMRDE14 | $1,130.00 |
|
|
No variants match your selected filters. |
||||||
Product Details
WESTport Gage provides a full range of Unified Miniature Screw Thread Plug Gages per the American Standard B1.10M 2004 and the equivalent ISO Recommendation. This thread designation is also referred to as the UNM Series. The threads in this series are interchangeable with the American, British, Canadian and ISO standardization programs. Unified Miniature Screw thread ring gages are intended for use in watches, instruments, and miniature mechanisms.
The series covers a diameter range from .30mm to 1.40mm (.0118” ‐ .0551”) and supplements the Unified and American thread series. WESTport also manufactures UNM forming taps. WESTport’s team of engineers can assist you with properly selecting the correct type of miniature gage and cutting tools for all of your UNM thread applications.
