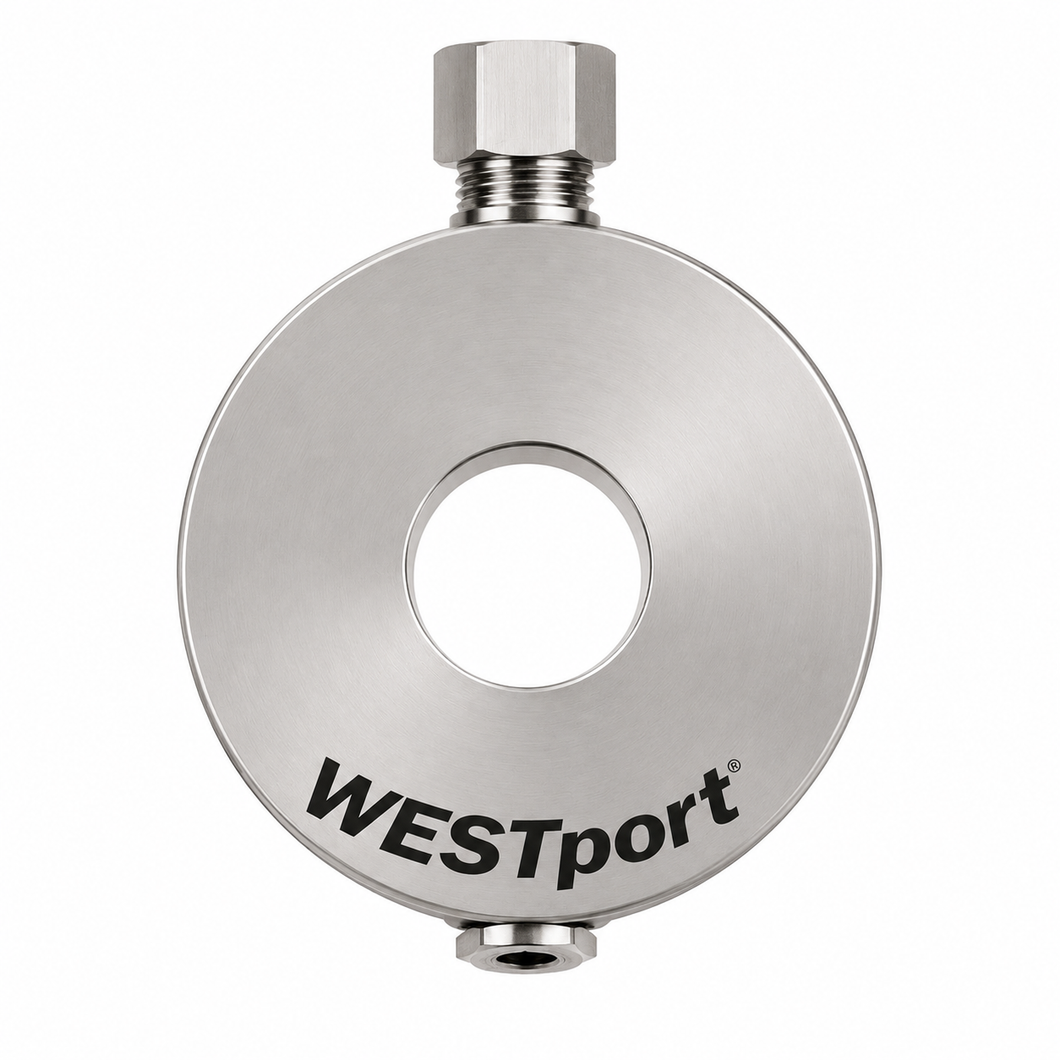

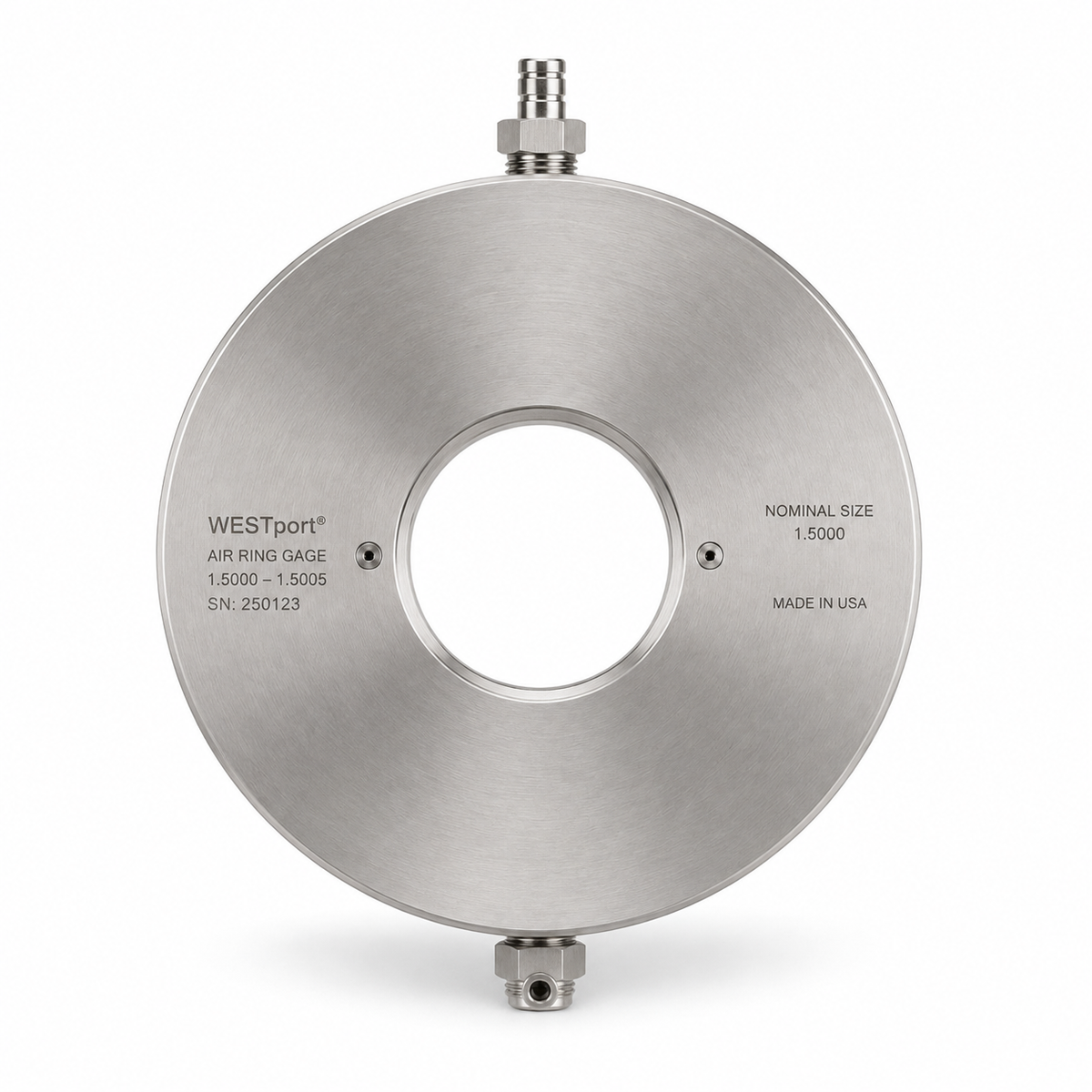

Fixed-size air ring gage with two or more opposing jets around the inner bore to measure a part's mean outside diameter — faster and more repeatable than snaps for high-volume work. Precision ground, hand-lapped, and calibrated to a NIST-traceable master plug.
- External diameters, mean OD
- Fixed size — specify nominal OD and tolerance
- High-volume repeatability
Specifications
| Measurement Method | Pneumatic air gaging |
|---|---|
| Measurement Principle | Back-pressure measurement |
| What It Inspects | External diameters (O.D.) |
| Measurement | Mean outside diameter |
| Contact Type | Non-contact measurement at the air jets |
| Gage Type | Fixed-size air ring gage |
| Jet Configuration | Two or more opposing air jets |
| Size | Manufactured to specified nominal O.D. |
| Tolerance | Manufactured for the specified part tolerance |
| Primary Application | High-volume O.D. inspection |
| Construction | Precision ground and hand-lapped |
| Calibration | Calibrated to a NIST-traceable master plug |
| Lead Time | Quoted per application |
