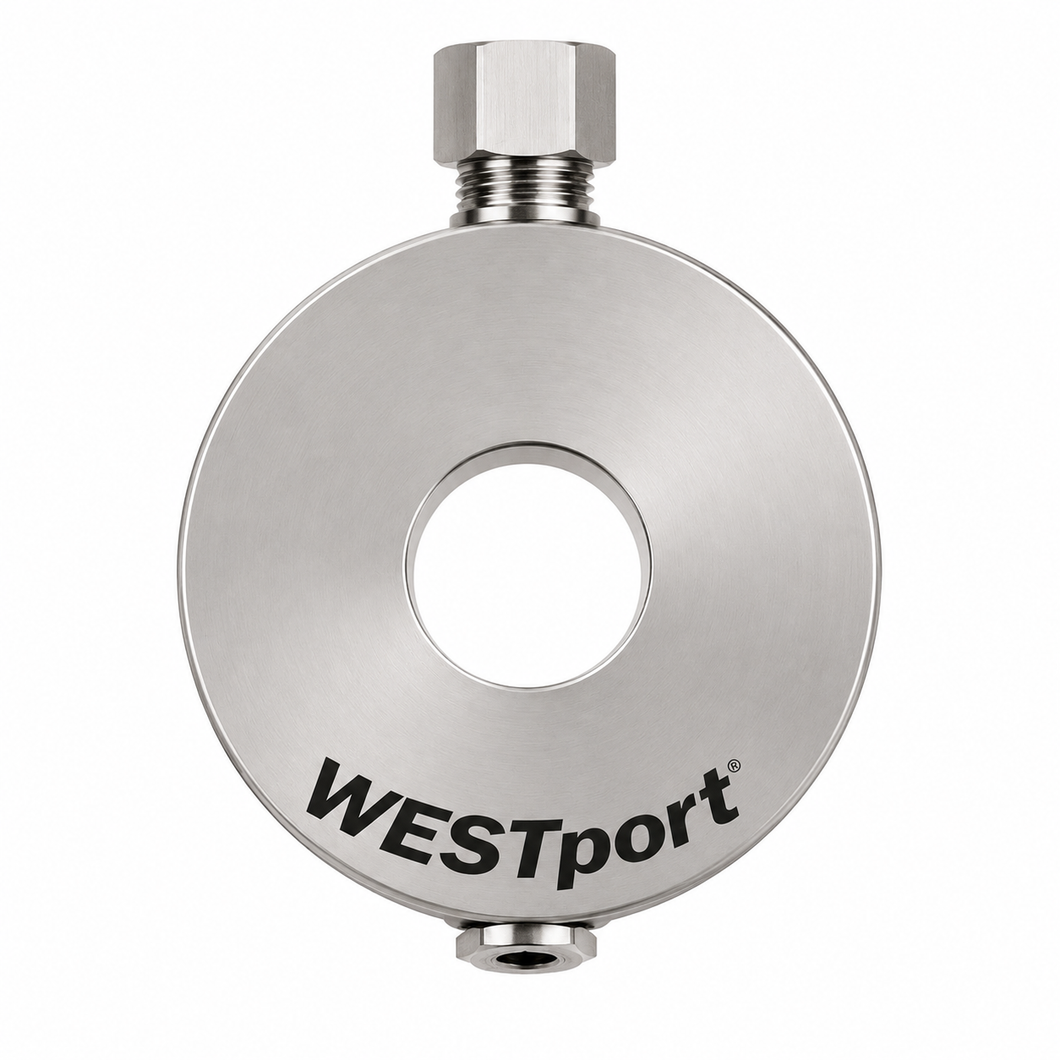

Split / Flanged Air Ring Gage
Split / Flanged Air Ring Gage
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Quantity
Couldn't load pickup availability

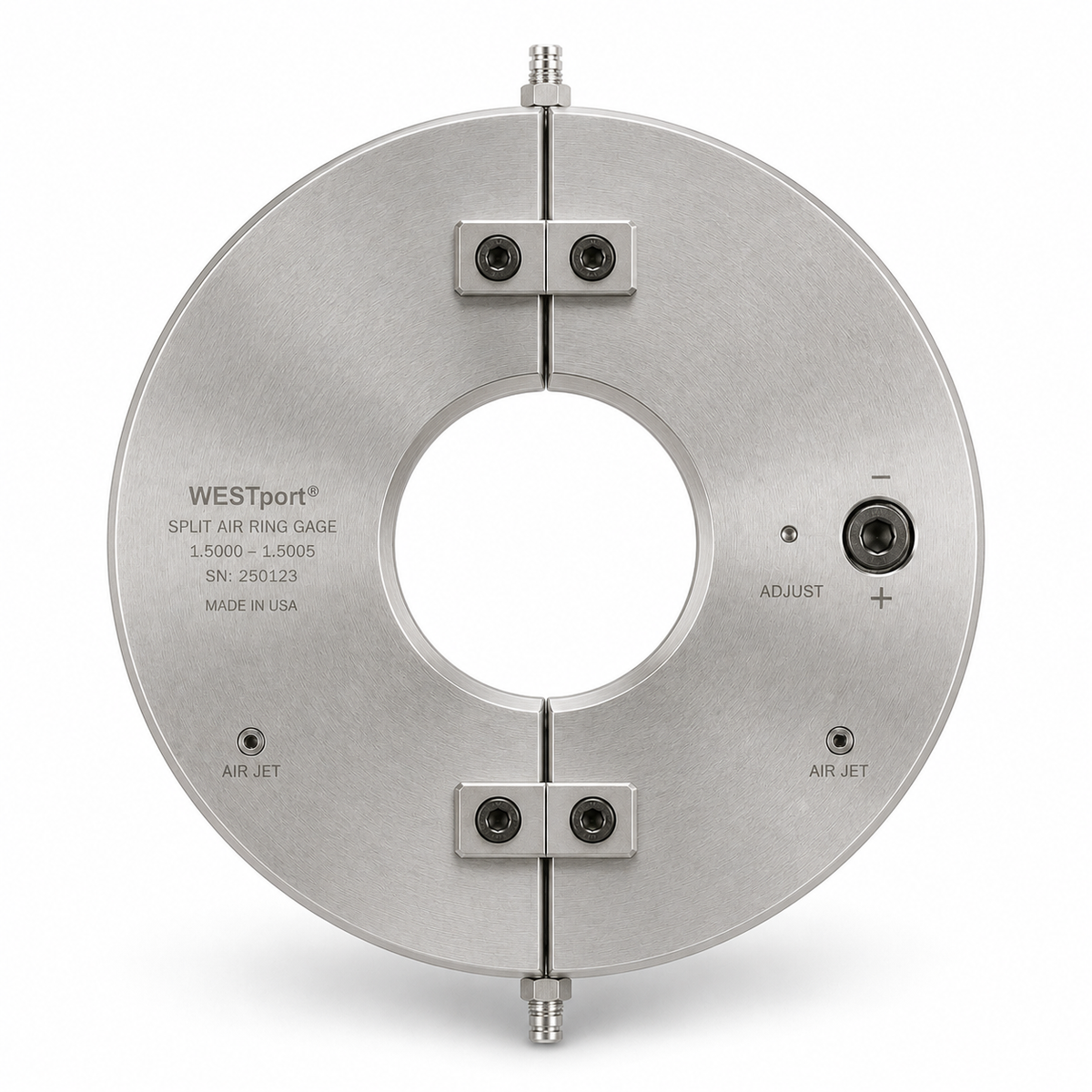

Split or flanged air ring for inspecting long shafts and deep components where end-insertion isn't possible.
- Long shafts and deep components
- Split / flanged design
- Where end-insertion isn't possible
Specifications
| Measurement Method | Pneumatic air gaging |
|---|---|
| Measurement Principle | Back-pressure measurement |
| What It Inspects | External diameters (O.D.) of cylindrical parts |
| Contact Type | Non-contact measurement at the air jets |
| Gage Type | Air ring gage |
| Configurations | Application-specific |
| Number of Jets | Application-specific |
| Nominal Size | Manufactured for the specified part diameter |
| Tolerance | Manufactured for the specified part tolerance |
| Air Gaging System | Manufactured to operate with the specified air gaging system/amplification |
| Application | Production and dimensional inspection of external cylindrical surfaces |
| Lead Time | Quoted per application |
