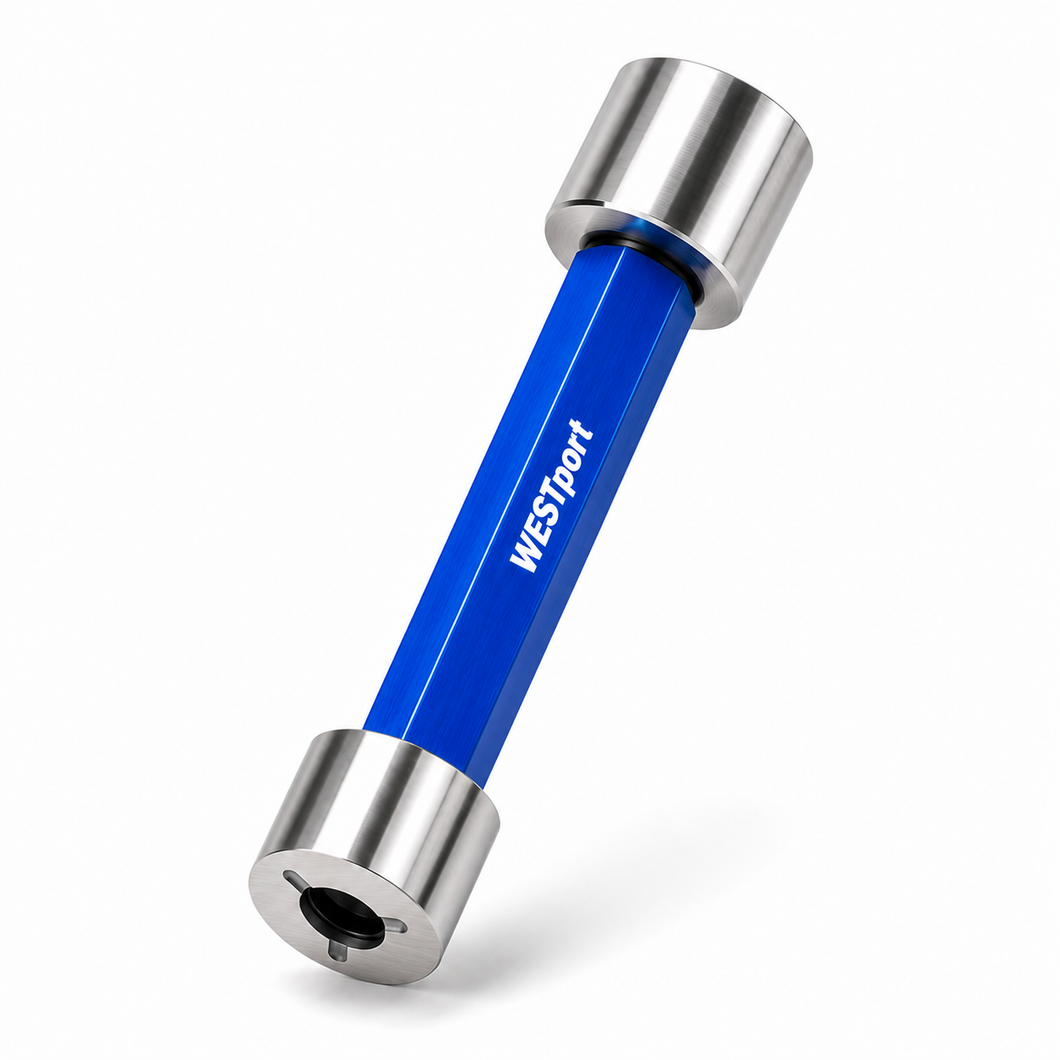

Reversible Trilock Thread Plug Gage

Reversible Trilock Thread Plug Gage

$0.00 USD
$0.00 USD
Sale Sold out

Part #:RTLS-01
Call for Quote

Features

  • Checks size of internal threads to ensure the they are within designed tolerance limits
  • Reversible gage members provides two gages for the price of one
  • Best suited for large size thread plug gages, 1 1/2 inches and larger
  • Class X Tolerance
  • GO and/or NO GO plug members
  • ASME/ANSI B1. 2 compliant
  • Chip groove provided on the Go member for ease of identification and clearing obstructions
  • Precision hand lapped to provide optimum finish and superior accuracy
  • Manufactured to the high end of the ANSI specifications to provide maximum wearability
  • Final inspection of gages is completed in an environmentally controlled ISO/IEC 17025 accredited laboratory
  • Available in steel and chrome
  • Free NIST certificate of accuracy
More Details View full details

Available Products

Size RangeMaterialMemberSKUPrice
1 5/8-12 Steel GO RTLS-01 Call for Quote
1 5/8-12 Steel NO GO RTLS-01 Call for Quote
1 5/8-12 Steel GO/NO GO w/ Handle RTLSDE-01 Call for Quote
1 5/8-12 Chrome GO RTLC-01 Call for Quote
1 5/8-12 Chrome NO GO RTLC-01 Call for Quote
1 5/8-12 Chrome GO/NO GO w/ Handle RTLCDE-01 Call for Quote
1 5/8-16 Steel GO RTLS-02 Call for Quote
1 5/8-16 Steel NO GO RTLS-02 Call for Quote
1 5/8-16 Steel GO/NO GO w/ Handle RTLSDE-02 Call for Quote
1 5/8-16 Chrome GO RTLC-02 Call for Quote
1 5/8-16 Chrome NO GO RTLC-02 Call for Quote
1 5/8-16 Chrome GO/NO GO w/ Handle RTLCDE-02 Call for Quote
1 3/4-12 Steel GO RTLS-03 Call for Quote
1 3/4-12 Steel NO GO RTLS-03 Call for Quote
1 3/4-12 Steel GO/NO GO w/ Handle RTLSDE-03 Call for Quote
1 3/4-12 Chrome GO RTLC-03 Call for Quote
1 3/4-12 Chrome NO GO RTLC-03 Call for Quote
1 3/4-12 Chrome GO/NO GO w/ Handle RTLCDE-03 Call for Quote
1 3/4-16 Steel GO RTLS-04 Call for Quote
1 3/4-16 Steel NO GO RTLS-04 Call for Quote
1 3/4-16 Steel GO/NO GO w/ Handle RTLSDE-04 Call for Quote
1 3/4-16 Chrome GO RTLC-04 Call for Quote
1 3/4-16 Chrome NO GO RTLC-04 Call for Quote
1 3/4-16 Chrome GO/NO GO w/ Handle RTLCDE-04 Call for Quote
1 7/8-12 Steel GO RTLS-05 Call for Quote
1 7/8-12 Steel NO GO RTLS-05 Call for Quote
1 7/8-12 Steel GO/NO GO w/ Handle RTLSDE-05 Call for Quote
1 7/8-12 Chrome GO RTLC-05 Call for Quote
1 7/8-12 Chrome NO GO RTLC-05 Call for Quote
1 7/8-12 Chrome GO/NO GO w/ Handle RTLCDE-05 Call for Quote
1 7/8-16 Steel GO RTLS-06 Call for Quote
1 7/8-16 Steel NO GO RTLS-06 Call for Quote
1 7/8-16 Steel GO/NO GO w/ Handle RTLSDE-06 Call for Quote
1 7/8-16 Chrome GO RTLC-06 Call for Quote
1 7/8-16 Chrome NO GO RTLC-06 Call for Quote
1 7/8-16 Chrome GO/NO GO w/ Handle RTLCDE-06 Call for Quote
2-12 Steel GO RTLS-07 Call for Quote
2-12 Steel NO GO RTLS-07 Call for Quote
2-12 Steel GO/NO GO w/ Handle RTLSDE-07 Call for Quote
2-12 Chrome GO RTLC-07 Call for Quote
2-12 Chrome NO GO RTLC-07 Call for Quote
2-12 Chrome GO/NO GO w/ Handle RTLCDE-07 Call for Quote
2-16 Steel GO RTLS-08 Call for Quote
2-16 Steel NO GO RTLS-08 Call for Quote
2-16 Steel GO/NO GO w/ Handle RTLSDE-08 Call for Quote
2-16 Chrome GO RTLC-08 Call for Quote
2-16 Chrome NO GO RTLC-08 Call for Quote
2-16 Chrome GO/NO GO w/ Handle RTLCDE-08 Call for Quote
2 1/4-12 Steel GO RTLS-09 Call for Quote
2 1/4-12 Steel NO GO RTLS-09 Call for Quote
2 1/4-12 Steel GO/NO GO w/ Handle RTLSDE-09 Call for Quote
2 1/4-12 Chrome GO RTLC-09 Call for Quote
2 1/4-12 Chrome NO GO RTLC-09 Call for Quote
2 1/4-12 Chrome GO/NO GO w/ Handle RTLCDE-09 Call for Quote
2 1/4-16 Steel GO RTLS-10 Call for Quote
2 1/4-16 Steel NO GO RTLS-10 Call for Quote
2 1/4-16 Steel GO/NO GO w/ Handle RTLSDE-10 Call for Quote
2 1/4-16 Chrome GO RTLC-10 Call for Quote
2 1/4-16 Chrome NO GO RTLC-10 Call for Quote
2 1/4-16 Chrome GO/NO GO w/ Handle RTLCDE-10 Call for Quote
2 1/2-12 Steel GO RTLS-11 Call for Quote
2 1/2-12 Steel NO GO RTLS-11 Call for Quote
2 1/2-12 Steel GO/NO GO w/ Handle RTLSDE-11 Call for Quote
2 1/2-12 Chrome GO RTLC-11 Call for Quote
2 1/2-12 Chrome NO GO RTLC-11 Call for Quote
2 1/2-12 Chrome GO/NO GO w/ Handle RTLCDE-11 Call for Quote
2 1/2-16 Steel GO RTLS-12 Call for Quote
2 1/2-16 Steel NO GO RTLS-12 Call for Quote
2 1/2-16 Steel GO/NO GO w/ Handle RTLSDE-12 Call for Quote
2 1/2-16 Chrome GO RTLC-12 Call for Quote
2 1/2-16 Chrome NO GO RTLC-12 Call for Quote
2 1/2-16 Chrome GO/NO GO w/ Handle RTLCDE-12 Call for Quote
2 3/4-12 Steel GO RTLS-13 Call for Quote
2 3/4-12 Steel NO GO RTLS-13 Call for Quote
2 3/4-12 Steel GO/NO GO w/ Handle RTLSDE-13 Call for Quote
2 3/4-12 Chrome GO RTLC-13 Call for Quote
2 3/4-12 Chrome NO GO RTLC-13 Call for Quote
2 3/4-12 Chrome GO/NO GO w/ Handle RTLCDE-13 Call for Quote
2 3/4-16 Steel GO RTLS-14 Call for Quote
2 3/4-16 Steel NO GO RTLS-14 Call for Quote
2 3/4-16 Steel GO/NO GO w/ Handle RTLSDE-14 Call for Quote
2 3/4-16 Chrome GO RTLC-14 Call for Quote
2 3/4-16 Chrome NO GO RTLC-14 Call for Quote
2 3/4-16 Chrome GO/NO GO w/ Handle RTLCDE-14 Call for Quote
3-12 Steel GO RTLS-15 Call for Quote
3-12 Steel NO GO RTLS-15 Call for Quote
3-12 Steel GO/NO GO w/ Handle RTLSDE-15 Call for Quote
3-12 Chrome GO RTLC-15 Call for Quote
3-12 Chrome NO GO RTLC-15 Call for Quote
3-12 Chrome GO/NO GO w/ Handle RTLCDE-15 Call for Quote
3-16 Steel GO RTLS-16 Call for Quote
3-16 Steel NO GO RTLS-16 Call for Quote
3-16 Steel GO/NO GO w/ Handle RTLSDE-16 Call for Quote
3-16 Chrome GO RTLC-16 Call for Quote
3-16 Chrome NO GO RTLC-16 Call for Quote
3-16 Chrome GO/NO GO w/ Handle RTLCDE-16 Call for Quote

Product Details

Reversible trilock thread plug gages are used to check the size of internal threads to ensure the threads are within its designed tolerance limits. The reversible trilock plug gage design is best suited for large size thread plug gages (1-1/2 inches and up), but is available in sizes as small as 3/4 inch. Consisting of a GO and/or NOGO member(s), the trilock has a bolt fastening system to support the size and weight. A chip groove is provided on the Go member for ease of identification and clearing obstructions.

Reversible trilock thread plug gages are manufactured in Class X tolerance and made in full conformance to ASME/ANSI B1.2 . Reversible trilock thread plugs can also be reversed on the handle resulting in a longer wear life. Gages ¾” (19.05mm) up to and including 1 ½” (38.1mm) are always assumed taperlock design unless Trilock reversible thread gage is specified when ordered.. WESTport thread plug gages are manufactured to the highest end of the ANSI specifications to ensure the longest gage life possible. Reversible trilock thread plug gages are available in steel and chrome.
