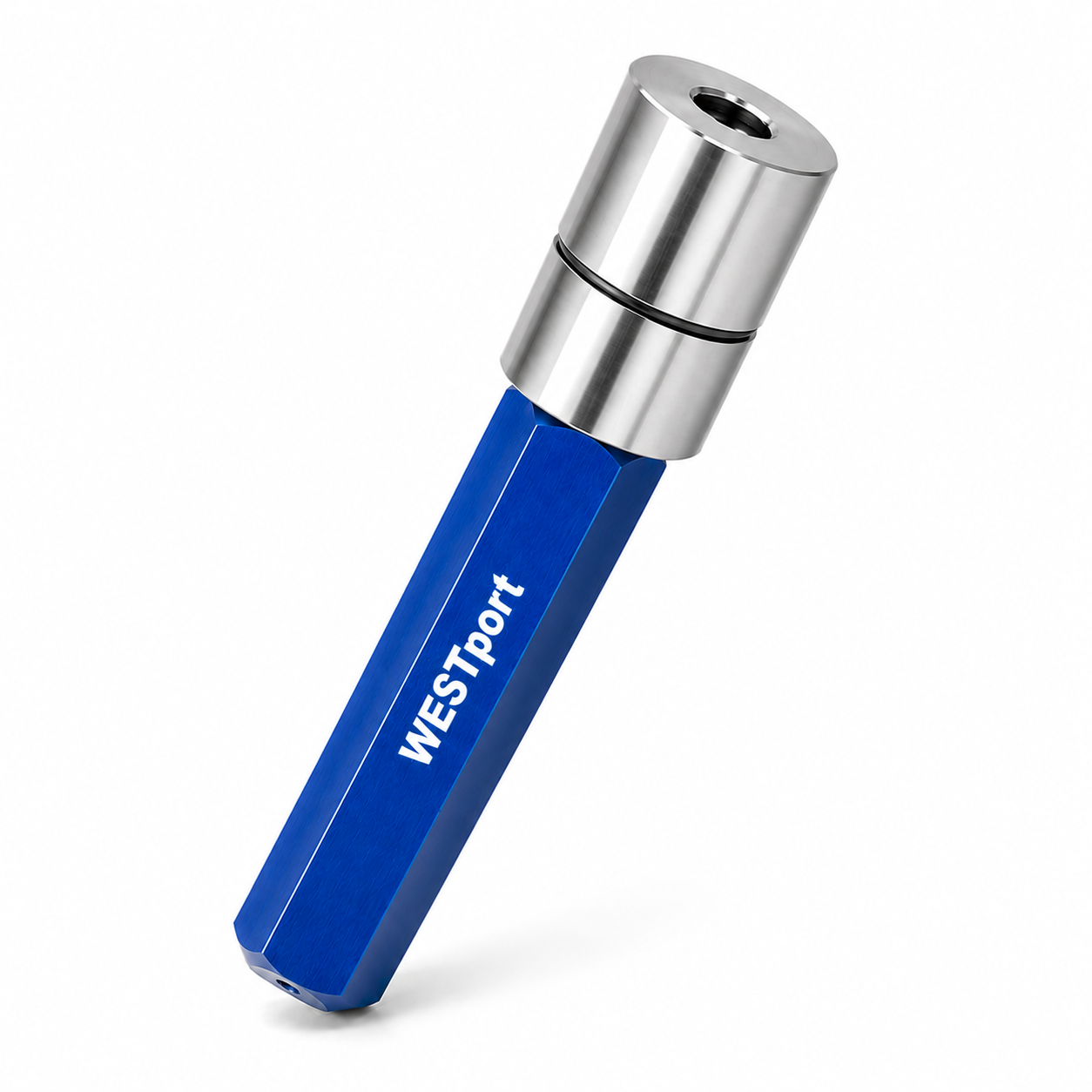

Progressive Taperlock Cylindrical Plug Gage
Progressive Taperlock Cylindrical Plug Gage
Regular price
$225.00 USD
Regular price
Sale price
$225.00 USD
Part #:PTLSI-XX01
Optional Add-Ons
Quantity
Couldn't load pickup availability
Features
- Progressive Taperlock Plug Gages checks the GO and NOGO inspection of a hole with one insertion of the gage
- Single end gage having GO and NO GO members stepped on a single gage
- Parts can be inspected quickly
- Class XX, X, Y and Z in steel or chrome
- Precision hand lapped to a 3 micro inch finish to provide superior accuracy and optimum finish
- Manufactured to the high end of the ANSI specifications to provide maximum wearability
- Final inspection of gages is completed in an environmentally controlled ISO/IEC 17025 accredited laboratory
- Designed for size ranges from .105” to 1.510” (2.67 mm - 38.35 mm)
- Free NIST certificate of accuracy
Available Products
| Size Range | Material | Class | SKU | Price | |
|---|---|---|---|---|---|
| .105 - .150 | Steel | XX | PTLSI-XX01 | $225.00 |
|
| .105 - .150 | Steel | X | PTLSI-X01 | $185.00 |
|
| .105 - .150 | Steel | Y | PTLSI-Y01 | $175.00 |
|
| .105 - .150 | Steel | Z | PTLSI-Z01 | $165.00 |
|
| .105 - .150 | Chrome | XX | PTLCI-XX01 | $338.00 |
|
| .105 - .150 | Chrome | X | PTLCI-X01 | $278.00 |
|
| .105 - .150 | Chrome | Y | PTLCI-Y01 | $263.00 |
|
| .105 - .150 | Chrome | Z | PTLCI-Z01 | $248.00 |
|
| .1501 - .230 | Steel | XX | PTLSI-XX02 | $125.00 |
|
| .1501 - .230 | Steel | X | PTLSI-X02 | $112.00 |
|
| .1501 - .230 | Steel | Y | PTLSI-Y02 | $98.00 |
|
| .1501 - .230 | Steel | Z | PTLSI-Z02 | $86.00 |
|
| .1501 - .230 | Chrome | XX | PTLCI-XX02 | $188.00 |
|
| .1501 - .230 | Chrome | X | PTLCI-X02 | $168.00 |
|
| .1501 - .230 | Chrome | Y | PTLCI-Y02 | $147.00 |
|
| .1501 - .230 | Chrome | Z | PTLCI-Z02 | $128.00 |
|
| .2301 - .365 | Steel | XX | PTLSI-XX03 | $133.00 |
|
| .2301 - .365 | Steel | X | PTLSI-X03 | $112.00 |
|
| .2301 - .365 | Steel | Y | PTLSI-Y03 | $99.00 |
|
| .2301 - .365 | Steel | Z | PTLSI-Z03 | $87.00 |
|
| .2301 - .365 | Chrome | XX | PTLCI-XX03 | $200.00 |
|
| .2301 - .365 | Chrome | X | PTLCI-X03 | $168.00 |
|
| .2301 - .365 | Chrome | Y | PTLCI-Y03 | $149.00 |
|
| .2301 - .365 | Chrome | Z | PTLCI-Z03 | $131.00 |
|
| .3651 - .510 | Steel | XX | PTLSI-XX04 | $143.00 |
|
| .3651 - .510 | Steel | X | PTLSI-X04 | $116.00 |
|
| .3651 - .510 | Steel | Y | PTLSI-Y04 | $102.00 |
|
| .3651 - .510 | Steel | Z | PTLSI-Z04 | $88.00 |
|
| .3651 - .510 | Chrome | XX | PTLCI-XX04 | $215.00 |
|
| .3651 - .510 | Chrome | X | PTLCI-X04 | $174.00 |
|
| .3651 - .510 | Chrome | Y | PTLCI-Y04 | $153.00 |
|
| .3651 - .510 | Chrome | Z | PTLCI-Z04 | $129.00 |
|
| .5101 - .825 | Steel | XX | PTLSI-XX05 | $148.00 |
|
| .5101 - .825 | Steel | X | PTLSI-X05 | $121.00 |
|
| .5101 - .825 | Steel | Y | PTLSI-Y05 | $113.00 |
|
| .5101 - .825 | Steel | Z | PTLSI-Z05 | $95.00 |
|
| .5101 - .825 | Chrome | XX | PTLCI-XX05 | $222.00 |
|
| .5101 - .825 | Chrome | X | PTLCI-X05 | $182.00 |
|
| .5101 - .825 | Chrome | Y | PTLCI-Y05 | $170.00 |
|
| .5101 - .825 | Chrome | Z | PTLCI-Z05 | $140.00 |
|
| .8251 - 1.135 | Steel | XX | PTLSI-XX06 | $166.00 |
|
| .8251 - 1.135 | Steel | X | PTLSI-X06 | $133.00 |
|
| .8251 - 1.135 | Steel | Y | PTLSI-Y06 | $117.00 |
|
| .8251 - 1.135 | Steel | Z | PTLSI-Z06 | $106.00 |
|
| .8251 - 1.135 | Chrome | XX | PTLCI-XX06 | $249.00 |
|
| .8251 - 1.135 | Chrome | X | PTLCI-X06 | $200.00 |
|
| .8251 - 1.135 | Chrome | Y | PTLCI-Y06 | $176.00 |
|
| .8251 - 1.135 | Chrome | Z | PTLCI-Z06 | $158.00 |
|
| 1.1351 - 1.510 | Steel | XX | PTLSI-XX07 | $178.00 |
|
| 1.1351 - 1.510 | Steel | X | PTLSI-X07 | $153.00 |
|
| 1.1351 - 1.510 | Steel | Y | PTLSI-Y07 | $129.00 |
|
| 1.1351 - 1.510 | Steel | Z | PTLSI-Z07 | $120.00 |
|
| 1.1351 - 1.510 | Chrome | XX | PTLCI-XX07 | $267.00 |
|
| 1.1351 - 1.510 | Chrome | X | PTLCI-X07 | $230.00 |
|
| 1.1351 - 1.510 | Chrome | Y | PTLCI-Y07 | $194.00 |
|
| 1.1351 - 1.510 | Chrome | Z | PTLCI-Z07 | $180.00 |
|
| 2.671 - 3.81 | Steel | XX | PTLSM-XX01 | $225.00 |
|
| 2.671 - 3.81 | Steel | X | PTLSM-X01 | $185.00 |
|
| 2.671 - 3.81 | Steel | Y | PTLSM-Y01 | $175.00 |
|
| 2.671 - 3.81 | Steel | Z | PTLSM-Z01 | $165.00 |
|
| 2.671 - 3.81 | Chrome | XX | PTLCM-XX01 | $338.00 |
|
| 2.671 - 3.81 | Chrome | X | PTLCM-X01 | $278.00 |
|
| 2.671 - 3.81 | Chrome | Y | PTLCM-Y01 | $263.00 |
|
| 2.671 - 3.81 | Chrome | Z | PTLCM-Z01 | $248.00 |
|
| 3.811 - 5.84 | Steel | XX | PTLSM-XX02 | $125.00 |
|
| 3.811 - 5.84 | Steel | X | PTLSM-X02 | $112.00 |
|
| 3.811 - 5.84 | Steel | Y | PTLSM-Y02 | $98.00 |
|
| 3.811 - 5.84 | Steel | Z | PTLSM-Z02 | $86.00 |
|
| 3.811 - 5.84 | Chrome | XX | PTLCM-XX02 | $188.00 |
|
| 3.811 - 5.84 | Chrome | X | PTLCM-X02 | $168.00 |
|
| 3.811 - 5.84 | Chrome | Y | PTLCM-Y02 | $147.00 |
|
| 3.811 - 5.84 | Chrome | Z | PTLCM-Z02 | $128.00 |
|
| 5.841 - 9.27 | Steel | XX | PTLSM-XX03 | $133.00 |
|
| 5.841 - 9.27 | Steel | X | PTLSM-X03 | $112.00 |
|
| 5.841 - 9.27 | Steel | Y | PTLSM-Y03 | $99.00 |
|
| 5.841 - 9.27 | Steel | Z | PTLSM-Z03 | $87.00 |
|
| 5.841 - 9.27 | Chrome | XX | PTLCM-XX03 | $200.00 |
|
| 5.841 - 9.27 | Chrome | X | PTLCM-X03 | $168.00 |
|
| 5.841 - 9.27 | Chrome | Y | PTLCM-Y03 | $149.00 |
|
| 5.841 - 9.27 | Chrome | Z | PTLCM-Z03 | $131.00 |
|
| 9.271 - 12.95 | Steel | XX | PTLSM-XX04 | $143.00 |
|
| 9.271 - 12.95 | Steel | X | PTLSM-X04 | $116.00 |
|
| 9.271 - 12.95 | Steel | Y | PTLSM-Y04 | $102.00 |
|
| 9.271 - 12.95 | Steel | Z | PTLSM-Z04 | $88.00 |
|
| 9.271 - 12.95 | Chrome | XX | PTLCM-XX04 | $215.00 |
|
| 9.271 - 12.95 | Chrome | X | PTLCM-X04 | $174.00 |
|
| 9.271 - 12.95 | Chrome | Y | PTLCM-Y04 | $153.00 |
|
| 9.271 - 12.95 | Chrome | Z | PTLCM-Z04 | $129.00 |
|
| 12.951 - 20.96 | Steel | XX | PTLSM-XX05 | $148.00 |
|
| 12.951 - 20.96 | Steel | X | PTLSM-X05 | $121.00 |
|
| 12.951 - 20.96 | Steel | Y | PTLSM-Y05 | $113.00 |
|
| 12.951 - 20.96 | Steel | Z | PTLSM-Z05 | $95.00 |
|
| 12.951 - 20.96 | Chrome | XX | PTLCM-XX05 | $222.00 |
|
| 12.951 - 20.96 | Chrome | X | PTLCM-X05 | $182.00 |
|
| 12.951 - 20.96 | Chrome | Y | PTLCM-Y05 | $170.00 |
|
| 12.951 - 20.96 | Chrome | Z | PTLCM-Z05 | $140.00 |
|
| 20.961 - 28.83 | Steel | XX | PTLSM-XX06 | $166.00 |
|
| 20.961 - 28.83 | Steel | X | PTLSM-X06 | $133.00 |
|
| 20.961 - 28.83 | Steel | Y | PTLSM-Y06 | $117.00 |
|
| 20.961 - 28.83 | Steel | Z | PTLSM-Z06 | $106.00 |
|
| 20.961 - 28.83 | Chrome | XX | PTLCM-XX06 | $249.00 |
|
| 20.961 - 28.83 | Chrome | X | PTLCM-X06 | $200.00 |
|
| 20.961 - 28.83 | Chrome | Y | PTLCM-Y06 | $176.00 |
|
| 20.961 - 28.83 | Chrome | Z | PTLCM-Z06 | $158.00 |
|
| 28.831 - 38.35 | Steel | XX | PTLSM-XX07 | $178.00 |
|
| 28.831 - 38.35 | Steel | X | PTLSM-X07 | $153.00 |
|
| 28.831 - 38.35 | Steel | Y | PTLSM-Y07 | $129.00 |
|
| 28.831 - 38.35 | Steel | Z | PTLSM-Z07 | $120.00 |
|
| 28.831 - 38.35 | Chrome | XX | PTLCM-XX07 | $267.00 |
|
| 28.831 - 38.35 | Chrome | X | PTLCM-X07 | $230.00 |
|
| 28.831 - 38.35 | Chrome | Y | PTLCM-Y07 | $194.00 |
|
| 28.831 - 38.35 | Chrome | Z | PTLCM-Z07 | $180.00 |
|
|
No variants match your selected filters. |
|||||
Product Details
Progressive taperlock plug gages allow for both the GO and NO GO inspection of a hole with one insertion of the gage. The Progressive style gage is a single end gage having GO and NO GO members stepped on a single gage. Parts can be inspected quickly with this type of gage. Members are securely attached to a taperlock handle with mounting bolts. Gages are ring lapped to size and hand polished providing for superior accuracy and ensuring maximum gage wearability.
Progressive plug gages are available in Class XX, X, Y and Z and are manufactured in accordance to ANSI standards. Available in steel and chrome from .105” – 1.509" (2.67 mm - 38.35 mm). WESTport Gage provides a Certificate of Accuracy, traceable to NIST (National Institute of Standards and Technology), free of charge with every gage.
Progressive plug gages are available in Class XX, X, Y and Z and are manufactured in accordance to ANSI standards. Available in steel and chrome from .105” – 1.509" (2.67 mm - 38.35 mm). WESTport Gage provides a Certificate of Accuracy, traceable to NIST (National Institute of Standards and Technology), free of charge with every gage.
