Phase II Portable/Leeb Hardness Tester PHT-1900
Phase II Portable/Leeb Hardness Tester PHT-1900
Regular price
$0.10
$0.10
Features:
- Easy to use keypad operation
- Auto identification of Impact Device
- Large LCD color display with back light
- USB Output
- Automatic conversions to: Brinell, Rockwell B & C, Vicker and Shore
- Automatic mean value as well as Min & Max values
- Battery Indicator
- Memory capacity (100 groups)
Call For Quote - We will beat any advertised price
Download PDF
| Part# | PHT-1900 |

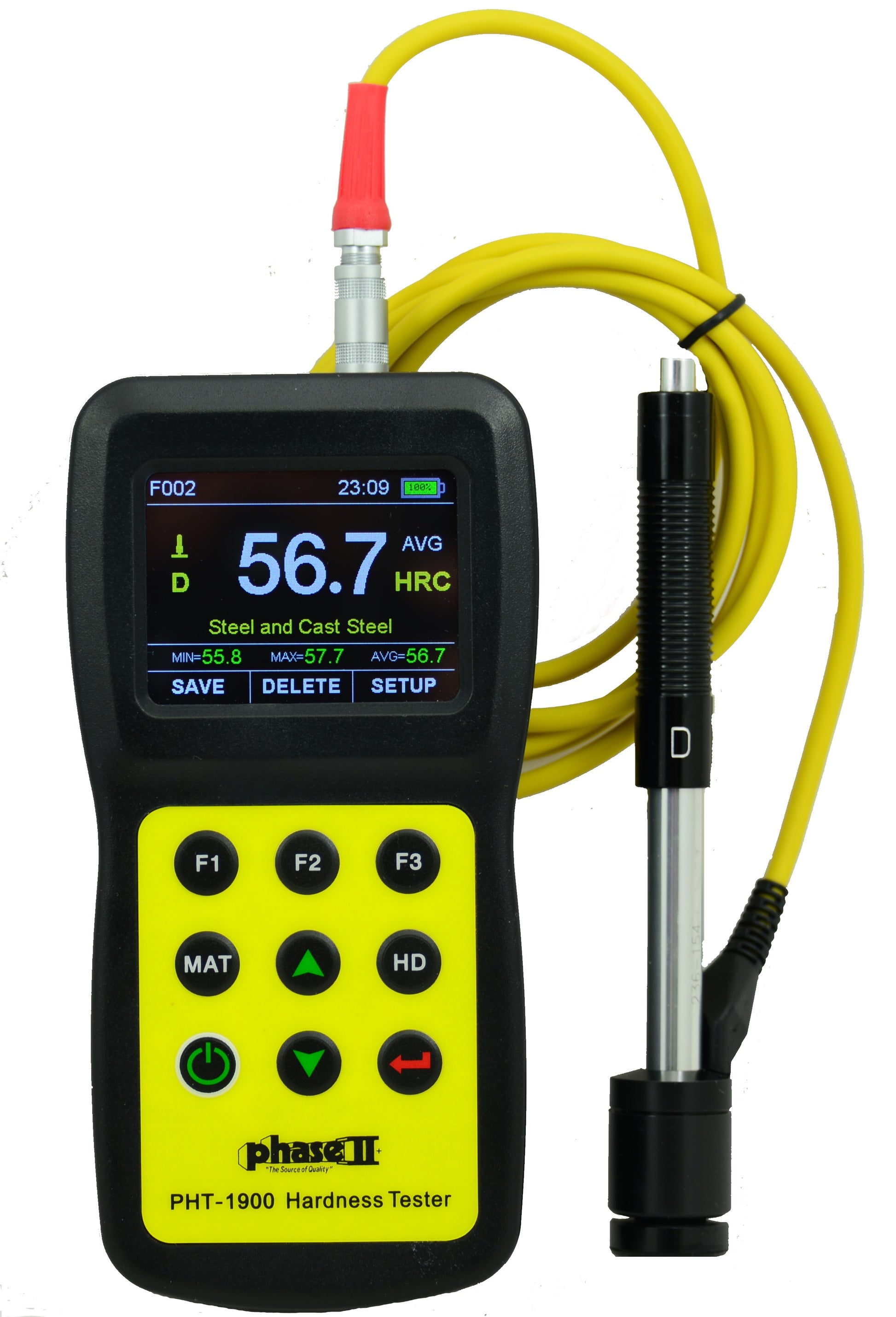

This state of the art, digital portable hardness tester is designed to test the hardness of large hard metal parts. The clean crisp display shows the incredible optimal functions that can only be found on this new portable hardness tester such as auto-probe detection, auto direction detector, single and multi-point calibration make the new 1900 the most versatile portable hardness tester in the industry. Blazing fast test speeds coupled with memory and output, this unit is a must have for virtually any work shop.
The PHT-1900 portable hardness tester can perform tests that easily convert to the most popular hardness scales, including Rockwell, Brinell, Vickers, Shore, etc.
Operation:
• Load the impact body
• Place the impact body on your test piece
• Push the button to begin testing and obtain reading
Standard Accessories:
• Base instrument
• Impact device D
• Calibrated test block
• Custom carry case
• Cleaning brush
• Operation manual
Optional accessories:
• Impact devices; DC, D+15, DL, G, C
• Special support rings
Specifications:
• Accuracy: +/- 0.5% (referred to L=800,
• Repeatability accuracy: +/- 4L units) L=Leeb
• Measuring range: 200-960 HL
• Materials: steel & cast steel, alloy tool steel, stainless steel, grey cast iron,
• spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy.
• Battery type: AA alkaline (4)
• Operating temperature: 5-104 degrees F
• Dimensions: 150 x 74 x 32mm
• Weight: 245 grams
Special Application Impact Devices
Impact Device D
Universal standard device:
Use for the majority of hardness testing assignments
Impact Device DL (not shown)
Needle front section .109- diameter x 1.96- length
Measurements in extremely confined spaces
Impact Device G
Enlarged test tip: For use on solid heavy components such as; rough castings and forgings. Brinell only.
Impact Device DC
Extremely short impact device
Used for very confined spaces such as holes, cylinders, internal measurements
Impact Device D+15
Slim front section with coil set back.
Hardness measurements in grooves, recessed surface.
Impact Device C
Reduced impact energy
For testing case hardened or thin walled components
Impact Device Specifications for PHT-1900 Portable Hardness Tester
|
Impact devices |
D/DC/DL |
D+15 |
C |
G |
|
Impact energy |
11Nmm |
11Nmm |
3Nmm |
90Nmm |
|
Mass of the impact body |
5.5g |
7.8g |
3.0g |
20g |
|
|
DL: 7.2g |
|||
|
Test tip |
||||
|
* Hardness |
1600HV |
1600HV |
1600HV |
1600HV |
|
* Diameter |
3mm |
3mm |
3mm |
5mm |
|
* Material |
Tungsten |
Tungsten |
||
|
* |
carbide |
carbide |
||
|
Impact device |
||||
|
* Diameter |
20mm |
20mm |
20mm |
30mm |
|
* Length |
147/86mm |
162mm |
141mm |
254mm |
|
* Weight |
75/50g |
80g |
75g |
250g |
|
Max. hardness of sample |
940HV |
940HV |
1000HV |
650HB |
|
Preparation of surface |
||||
|
* Max. roughness depth Rt |
10 m m |
10 m m |
2.5 m m |
30 m m |
|
* Average roughness Ra |
2 µ m |
2 µ m |
0.4 µ m |
6.3 µ m |
|
Min. weight of sample |
||||
|
* Of compact shape |
5kg |
5kg |
1.5kg |
15kg |
|
* On solid support |
2kg |
2kg |
0.5kg |
5kg |
|
* Coupled on plate |
0.1kg |
0.1kg |
0.02kg |
0.5kg |
|
Min. thickness of sample |
||||
|
* Coupled |
3mm |
3mm |
1mm |
10mm |
|
* Min. thickness of layers |
0.8mm |
0.8mm |
0.2mm |
- |
|
Indentation of test tip |
||||
|
With 300 HV |
||||
|
* Diameter |
0.54mm |
0.54mm |
0.38mm |
1.03mm |
|
* Depth |
24 µ m |
24 µ m |
12 µ m |
53 µ m |
|
with 600 HV |
||||
|
* Diameter |
0.45mm |
0.45mm |
0.32mm |
0.90mm |
|
* Depth |
17 µ m |
17 µ m |
8 µ m |
41 µ m |
|
with 800 HV |
||||
|
* Diameter |
0.35mm |
0.35mm |
0.30mm |
- |
|
* Depth |
10 µ m |
10 µ m |
7 µ m |
- |
| part | PHT-1900 |
