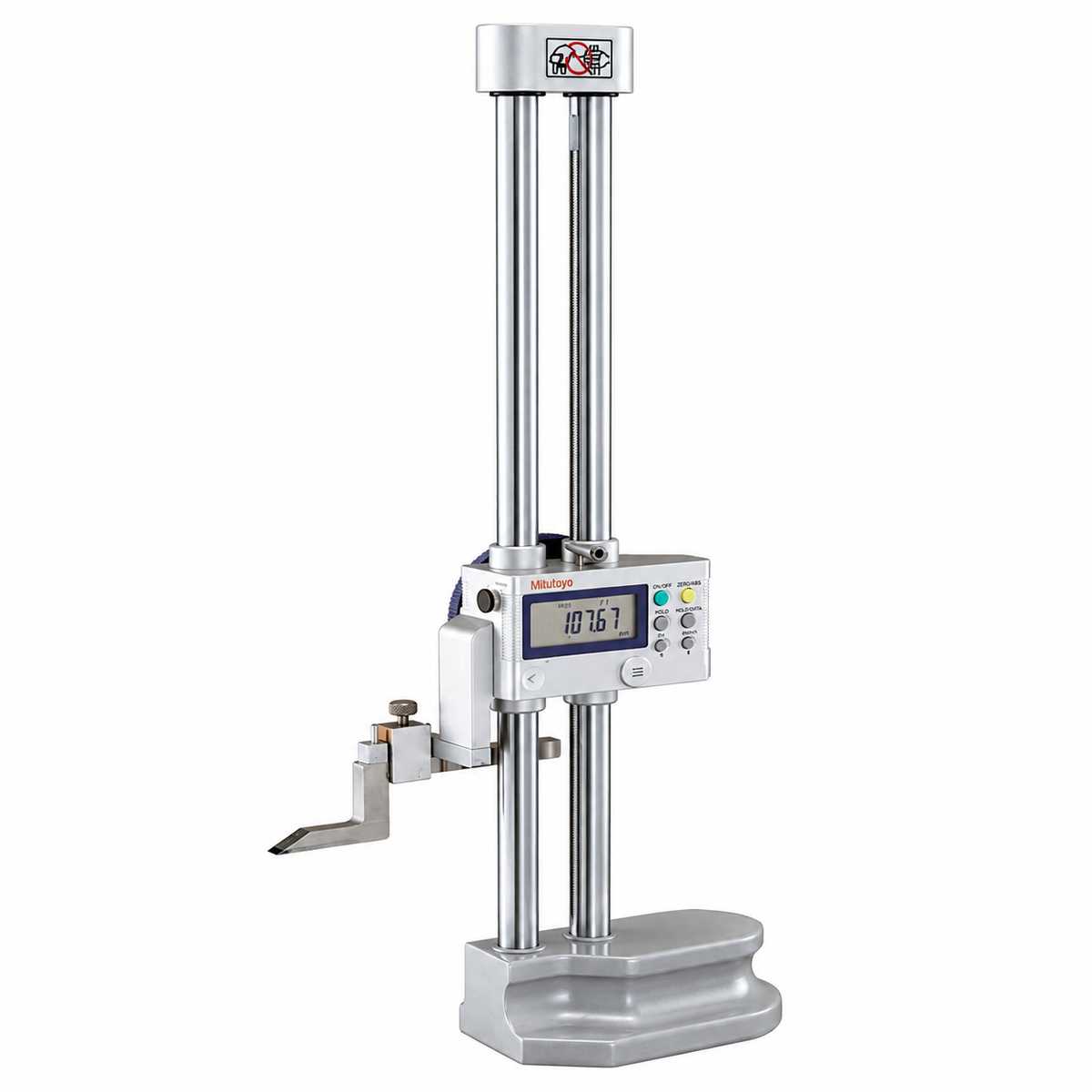

Mitutoyo Digimatic Double-Column Height Gage — 24"
Mitutoyo Digimatic Double-Column Height Gage — 24"
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Part #:192-632-10
Quantity
Couldn't load pickup availability
Key Features
- 0–24" / 0–600 mm measuring range
- .0005" / 0.01 mm resolution, switchable to .0002" / 0.005 mm
- ±.002" / ±0.05 mm accuracy
- Rigid double-column design
- Coarse and fine feed
- SPC data output
- Large 11 mm LCD characters
- Large measuring capacity for bigger components
- Carbide-tipped scriber and scriber clamp included
Overview
The Mitutoyo 192-632-10 Digimatic Height Gage provides a 24-inch measuring range for precision inspection of medium and larger components.
Capacity and Rigidity
The double-column structure is built for rigidity and measuring stability, while coarse and fine positioning simplifies accurate placement of the measuring point.
Display and Data
Large 11 mm LCD characters and a right-hand button layout keep operation simple. SPC data output is standard, and resolution is switchable between .0005" (0.01 mm) and .0002" (0.005 mm).
Applications
A strong choice for quality departments needing more capacity than a 12-inch height gage while keeping the familiar operation of a conventional digital double-column instrument.
Specifications
| Manufacturer | Mitutoyo |
|---|---|
| Part Number | 192-632-10 |
| Measuring Range | 0–24" / 0–600 mm |
| Resolution | .0005" (0.01 mm); .0002" (0.005 mm) switchable |
| Accuracy | ±.002" / ±0.05 mm |
| Repeatability | .0005" / 0.01 mm |
| Construction | Double column |
| Response Speed | Approx. 500 mm/s |
| Data Output | SPC data output |
| Power Supply | One SR44 silver-oxide battery (No. 938882) |
| Battery Life | Approx. 3,500 hours |
| Operating Temperature | 0 °C to 40 °C |
| Standard Accessories | Scriber (No. 07GZA000), scriber clamp (No. 05GZA033), battery |
| Weight | 8.3 kg |
