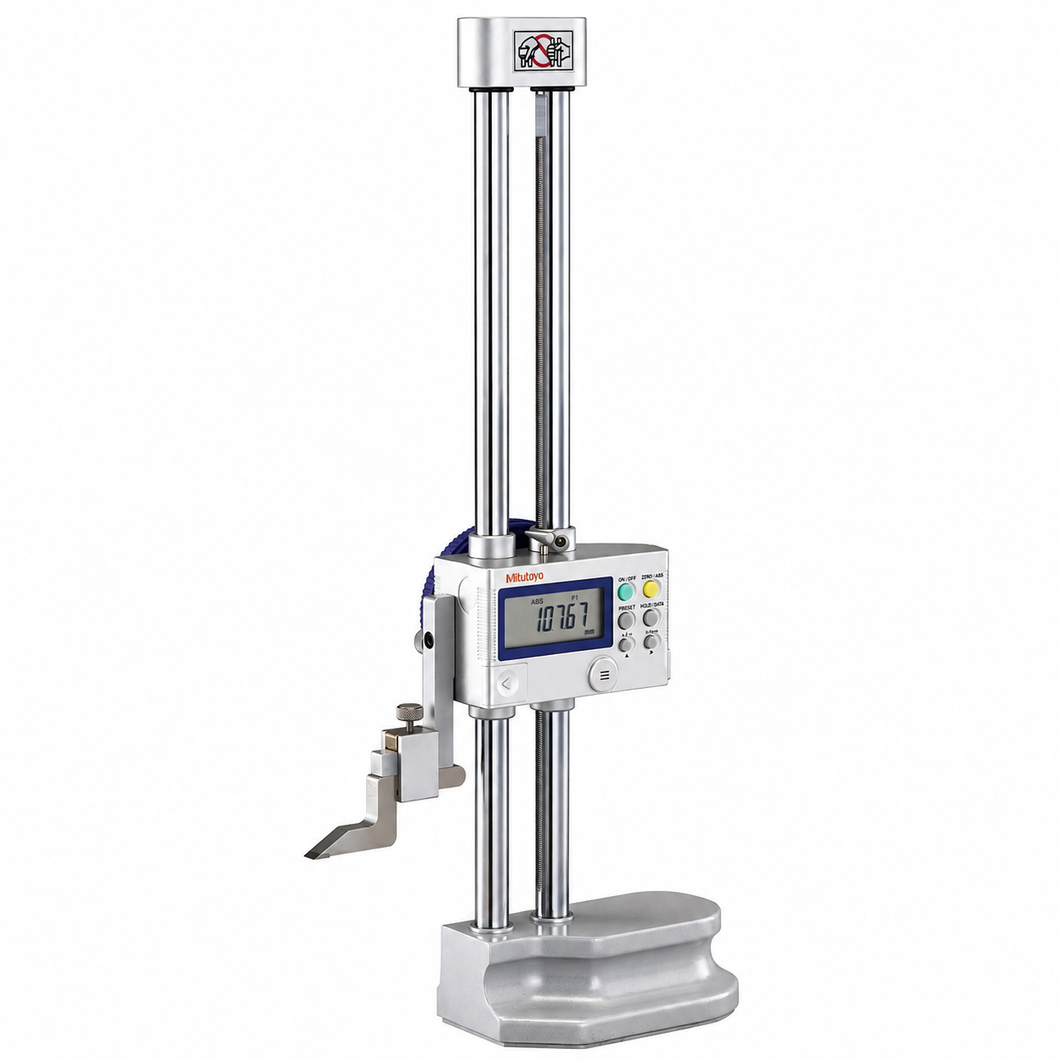

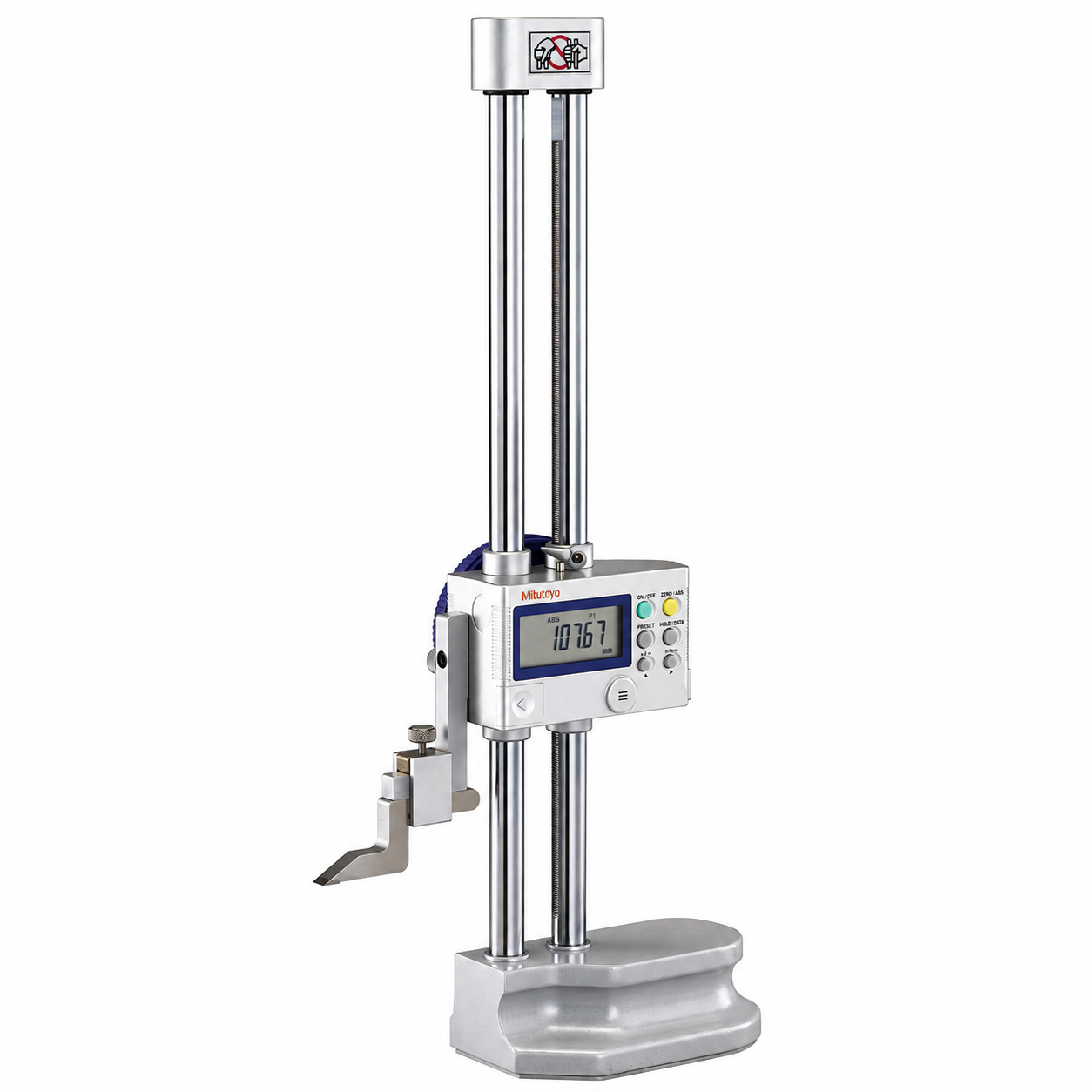

Mitutoyo Digimatic Double-Column Height Gage — 18"
Mitutoyo Digimatic Double-Column Height Gage — 18"
Part #:192-631-10
Couldn't load pickup availability
Key Features
- 0–18" / 0–450 mm measuring range
- .0005" / 0.01 mm resolution, switchable to .0002" / 0.005 mm
- ±.002" / ±0.05 mm accuracy
- Rigid double-column construction
- Coarse and fine feed
- SPC data output
- Large 11 mm LCD characters
- Extended capacity without excessive size

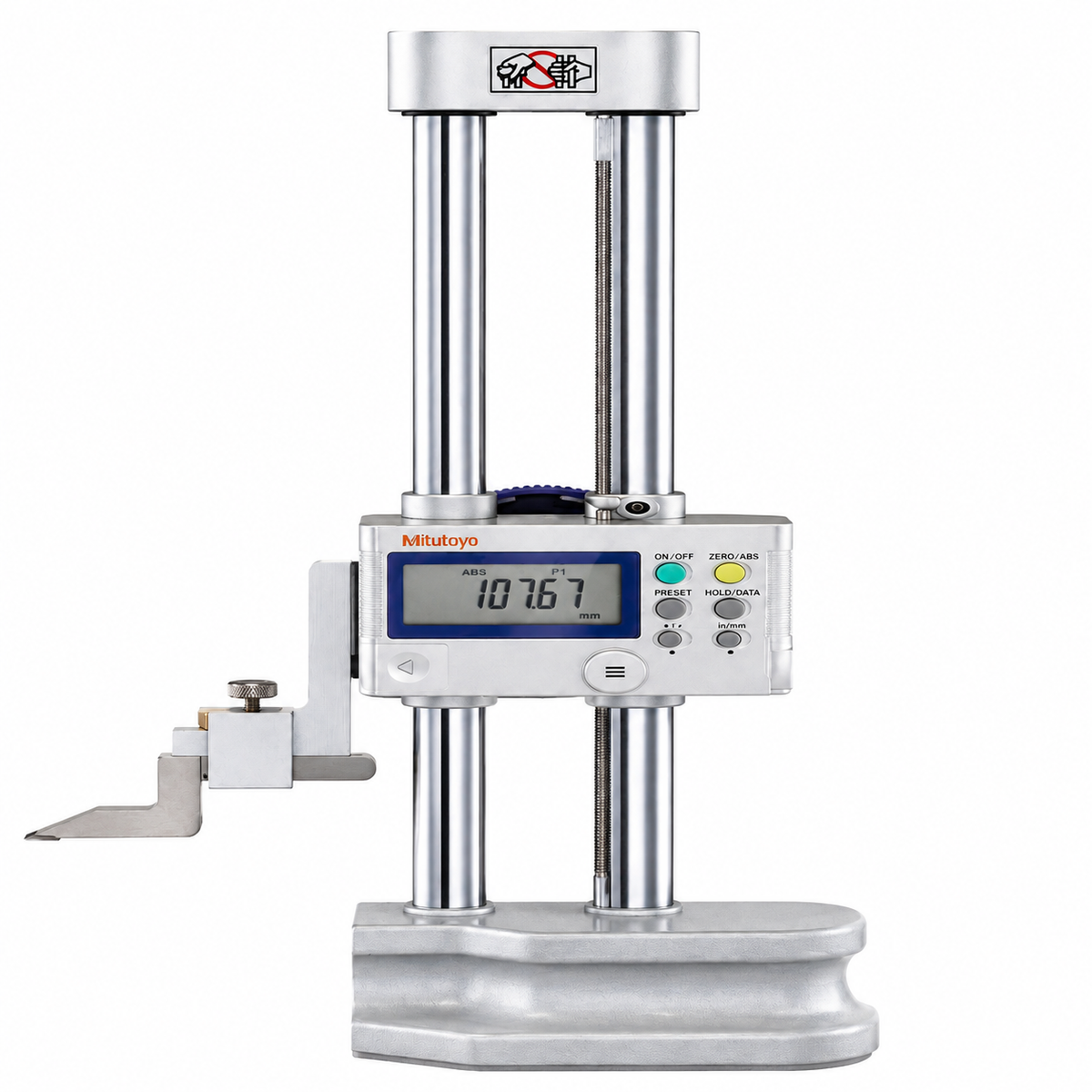

- Carbide-tipped scriber and scriber clamp included
Overview
The Mitutoyo 192-631-10 provides an extended 18-inch measuring range with the same rigid double-column construction for stable, repeatable dimensional inspection.
Extended Capacity
The 18-inch capacity adds versatility for shops inspecting a wider range of component sizes while keeping the footprint and operation of a conventional double-column height gage.
Display and Data
A clear digital display with large 11 mm characters, a carbide-tipped scriber and a coarse/fine positioning system make this a straightforward professional surface-plate measuring instrument. SPC data output is standard, and resolution is switchable between .0005" (0.01 mm) and .0002" (0.005 mm).
Applications
Precision height measurement and layout work in production inspection, quality laboratories and toolrooms.
Specifications
| Manufacturer | Mitutoyo |
|---|---|
| Part Number | 192-631-10 |
| Measuring Range | 0–18" / 0–450 mm |
| Resolution | .0005" (0.01 mm); .0002" (0.005 mm) switchable |
| Accuracy | ±.002" / ±0.05 mm |
| Repeatability | .0005" / 0.01 mm |
| Construction | Double column |
| Response Speed | Approx. 500 mm/s |
| Data Output | SPC data output |
| Power Supply | One SR44 silver-oxide battery (No. 938882) |
| Battery Life | Approx. 3,500 hours |
| Operating Temperature | 0 °C to 40 °C |
| Standard Accessories | Scriber (No. 07GZA000), scriber clamp (No. 05GZA033), battery |
| Weight | 7.5 kg |
