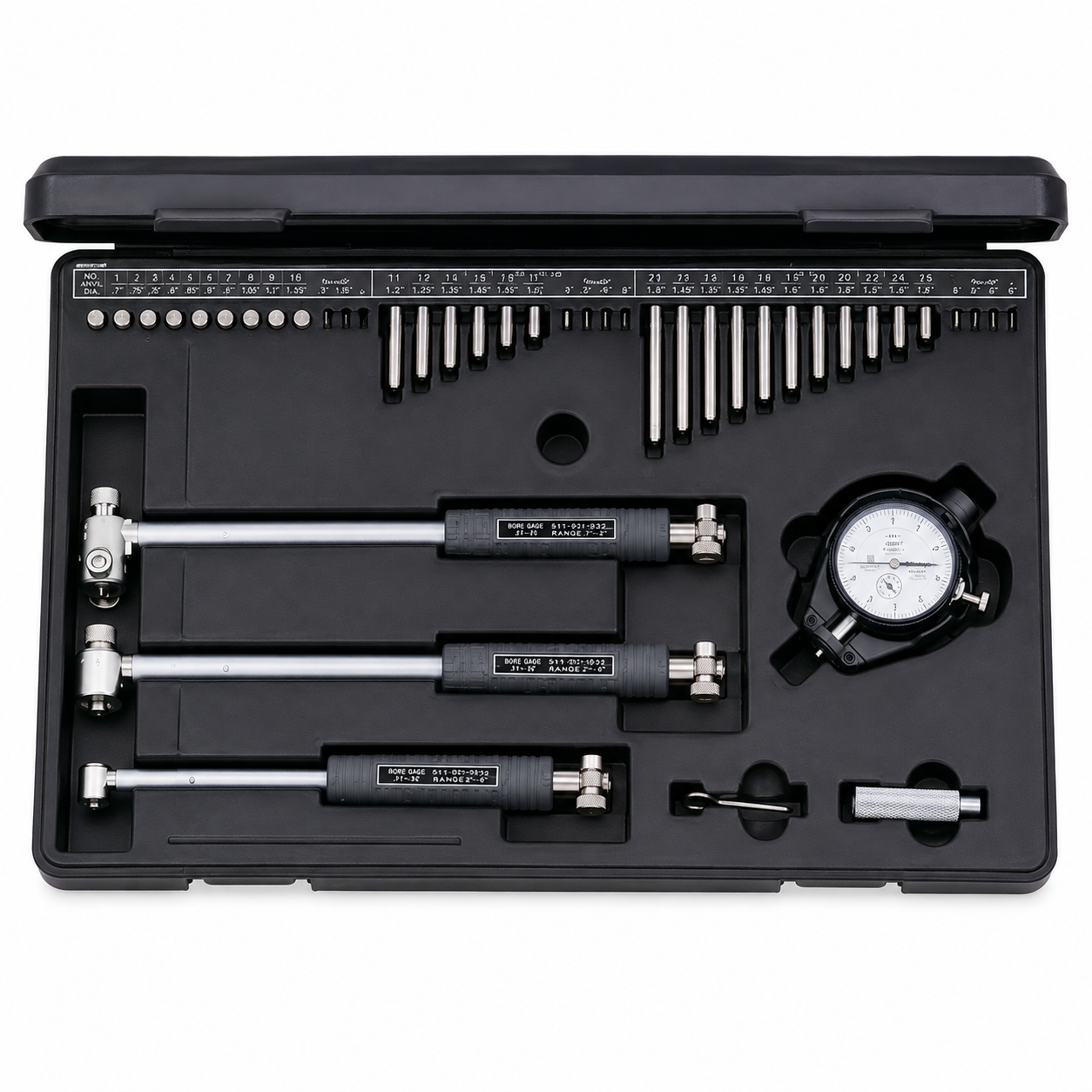

Mitutoyo Complete Dial Bore Gage Set — .7"–6"

Key Features

• Exceptional .7"–6" overall range
• .0001" graduation
• 26 anvils
• 10 spacers
• 4" and 6" measuring depths
• Carbide-tipped contact points
• Multiple bore ranges covered by one system
• Eliminates the need to order several individual gages
• Excellent quality-control department investment
• Premium Mitutoyo quality

Overview

The Mitutoyo 511-932-20 is the premium general-purpose dial bore gage set, covering internal diameters from .7" through 6" in a single fitted system.

Rather than purchasing several individual bore gages separately, this comprehensive set makes one system cover a wide variety of component sizes — highly attractive for inspection departments, job shops and manufacturing facilities.

What's Included

The set combines .0001" graduation with 26 anvils, 10 spacers and carbide-tipped contact points, plus 4" and 6" measuring depths, for a versatile precision bore-inspection system.

Applications

Best suited to quality-control departments and job shops that inspect a broad mix of bore sizes and would otherwise need to stock three or four separate single-range gages.
