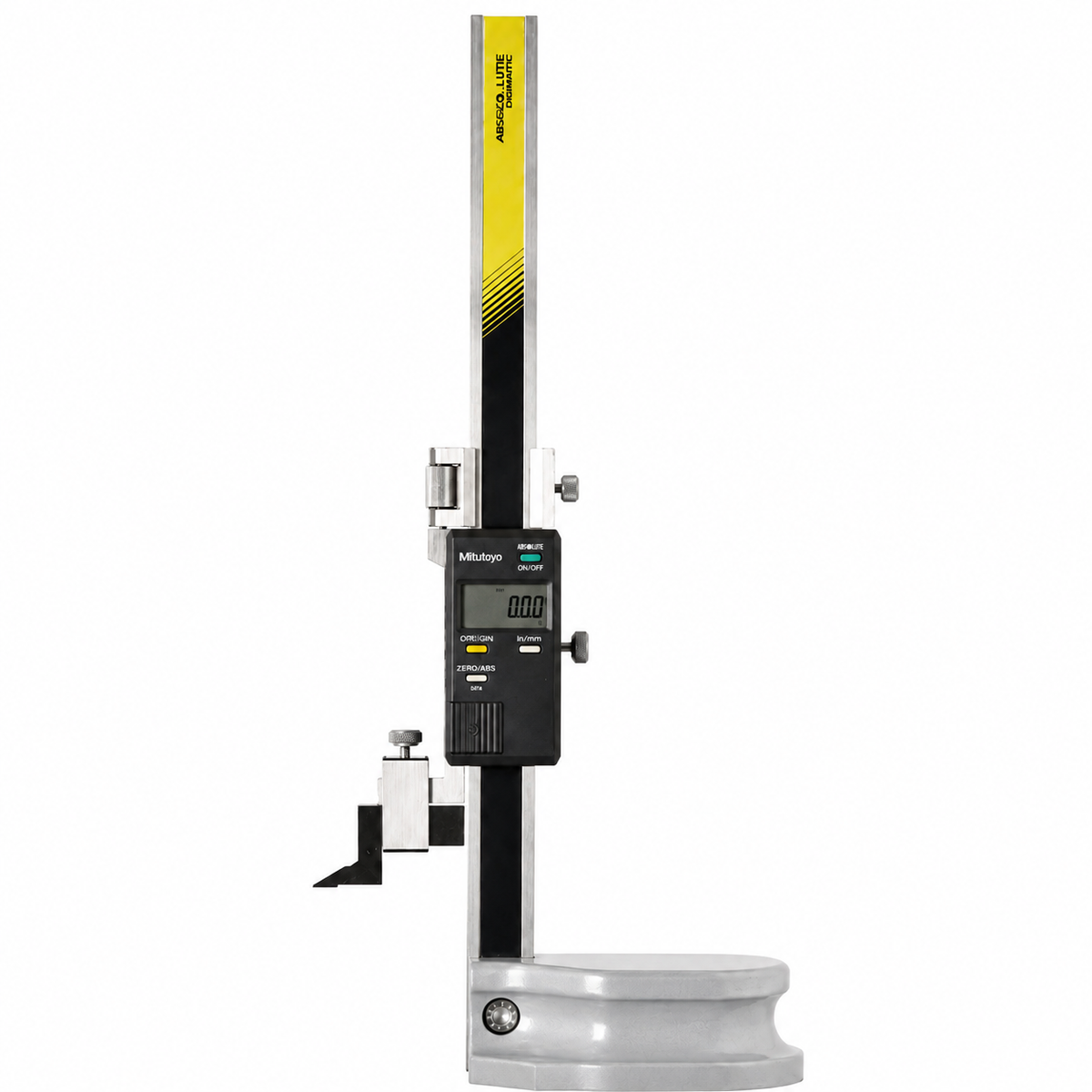

Mitutoyo ABSOLUTE Digimatic Height Gage — 8"

Key Features

• 0–8" measuring range
• Mitutoyo ABSOLUTE linear encoder
• Digital readout
• Eliminates repeated origin setting
• Compact footprint
• Easy surface-plate operation
• Suitable for dimensional inspection
• Suitable for layout and scribing

Overview

The Mitutoyo 570-244 ABSOLUTE Digimatic Height Gage is a compact digital height gage for reliable surface-plate measurement and layout work.

ABSOLUTE Encoder

Its built-in ABSOLUTE linear encoder retains the reference position, so there is no need to reset the origin each time the gage is powered on.

Applications

The compact measuring range suits smaller components and inspection applications where a larger height gage is unnecessary — dimensional inspection, layout and scribing on the surface plate.
