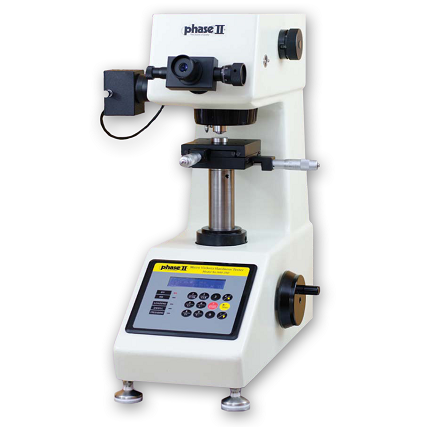

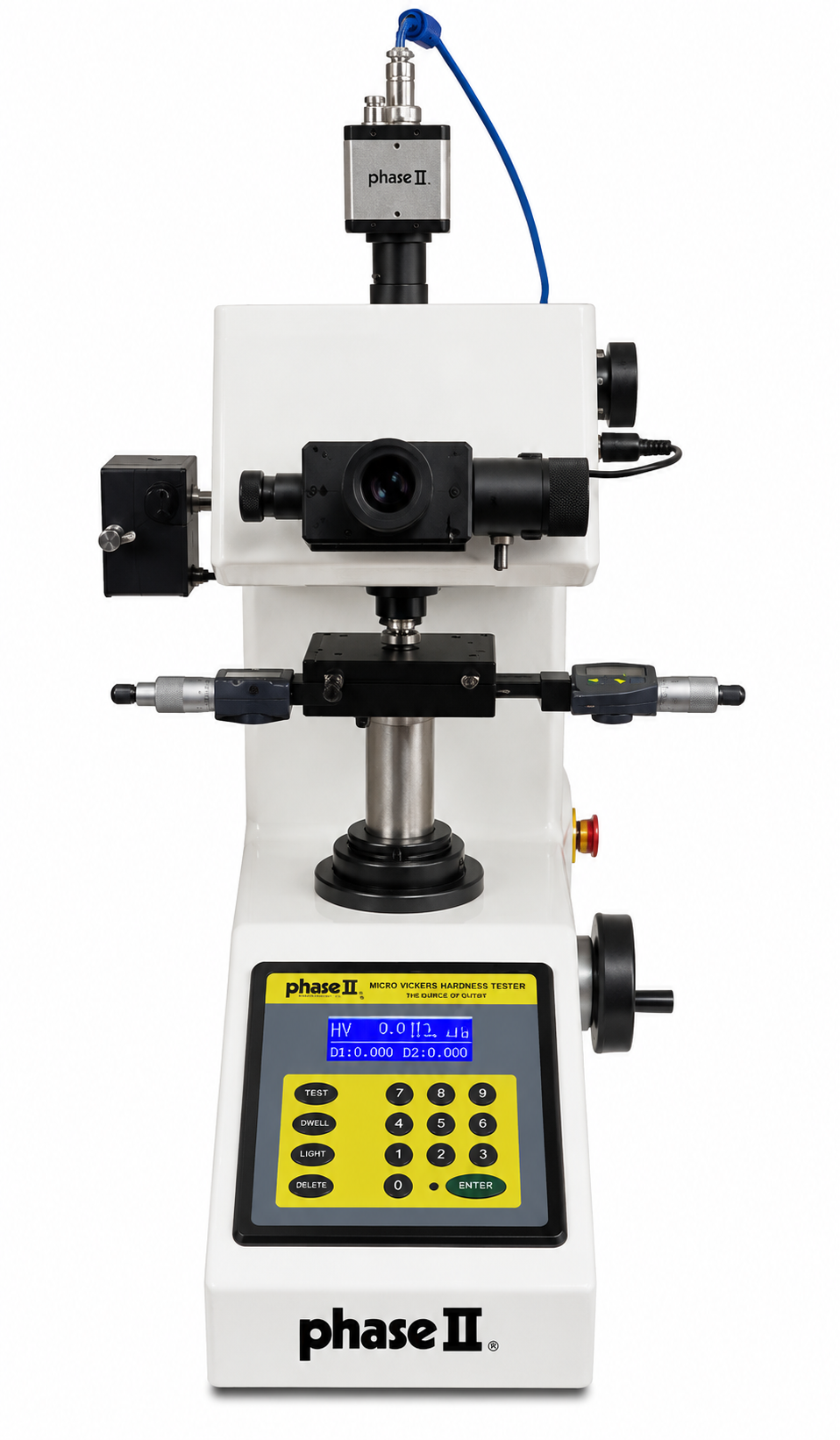

Micro Vickers Hardness Tester Phase II - Model 900-390

Key Features

• Designed for Vickers (HV) hardness testing
• Optional Knoop (HK) hardness testing with optional Knoop indenter
• Ideal for small precision components, thin materials, coatings, wire, and case depth measurements
• Digital video camera included
• Camera adapter included
• USB output cable included
• Measurement software included
• Hardness conversions performed directly within the software
• LCD display with PC/laptop connectivity
• Automatic carriage control
• Manual turret
• ASTM E384 compliant
• 5-Year Warranty
• Free Lifetime Technical Support

Overview

The Phase II 900-390 Series Micro Vickers Hardness Tester is a precision hardness testing system designed for hardness analysis of metallic specimens in metallography laboratories and production environments. The system is engineered for accurate hardness testing of small precision parts, thin materials, coatings, wires, and case depth determinations. It performs both Vickers (HV) and, with an optional indenter, Knoop (HK) hardness testing.

The 900-390 Series includes a digital video camera, camera adapter, USB output cable, and measurement software as standard equipment. Measurement data, indentation lengths, hardness values, statistical information, and hardness conversions can be displayed on both the integrated LCD display and a connected PC or laptop. The tester conforms to ASTM E384 standards and is backed by a 5-year warranty and free lifetime technical support.

Applications

• Small precision components
• Thin materials
• Metallic specimens
• Surface coatings
• Fine wire
• Case depth determinations
• Metallography laboratories
• Production environments

Included Accessories

• Base Machine
• X-Y Stage with Micrometer
• Mini Thin Part Holding Fixture
• Mini Drill Chuck Fixture
• Mini Vise Fixture
• Video Camera with Adapter
• Measurement Software
• USB Cable
• Tool Kit

Optional Accessories

• Knoop Indenter (for HK hardness testing)
