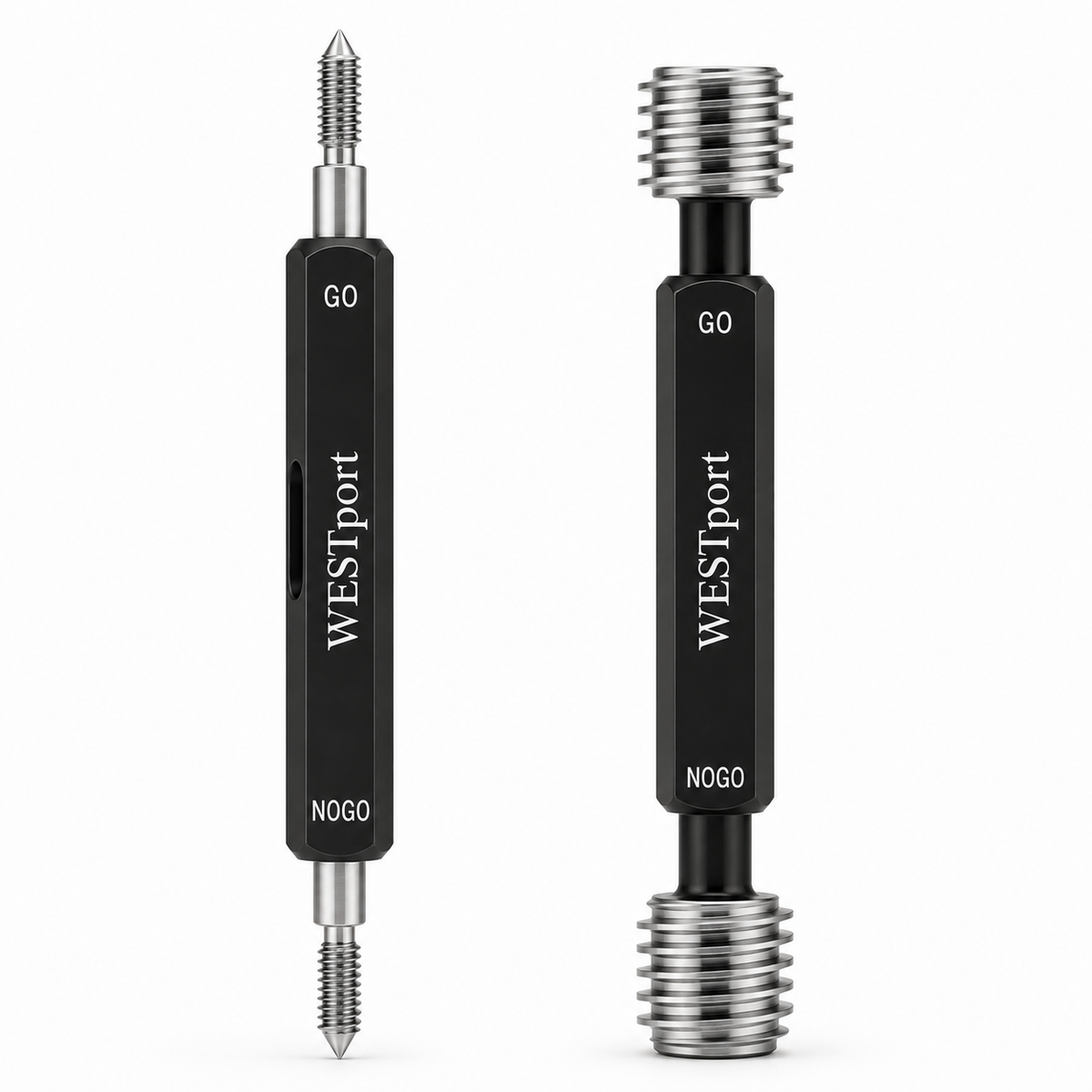

Medical Thread Plug Gage GO/NO GO
Medical Thread Plug Gage GO/NO GO
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Quantity
Couldn't load pickup availability
Fixed-limit GO/NO GO thread plug gages for internal medical threads — bone-screw holes, implant fastener threads, and the complex conical thread forms used in orthopedic and prosthetic devices. The medical field has some of the most demanding thread profiles in manufacturing, and WESTport is among the country's foremost medical thread gage makers.
Standard or complex conical forms
Whether you need a standard thread form or a highly complex conical medical thread, we build the gage to your exact specification.
Certification & quality
- Precision ground, hand lapped and polished for accuracy, optimum finish, and maximum wear life
- Certificate of Accuracy, NIST-traceable — included with every gage
- Calibrated in our ISO/IEC 17025 accredited (A2LA) laboratory; Long Form Certificate available on a 5–7 business day turnaround
Request a quote. For external threads see the Conical Medical Thread Ring Gage; for variable data, the Variable Thread Inspection System.
Specifications
| Gage Type | Medical thread plug gage |
|---|---|
| Measurement Mode | Go/No-Go |
| What It Inspects | Internal medical & implant threads |
| Profile / Thread Form | Standard or conical medical thread |
| Certification | NIST-traceable Certificate of Accuracy included with every gage. |
| Standards | Customer print |
| Lead Time | Per drawing — quoted per part |
