Luer Taper Ring Gage Outside Diameter (OD)
Luer Taper Ring Gage Outside Diameter (OD)
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Quantity
Couldn't load pickup availability

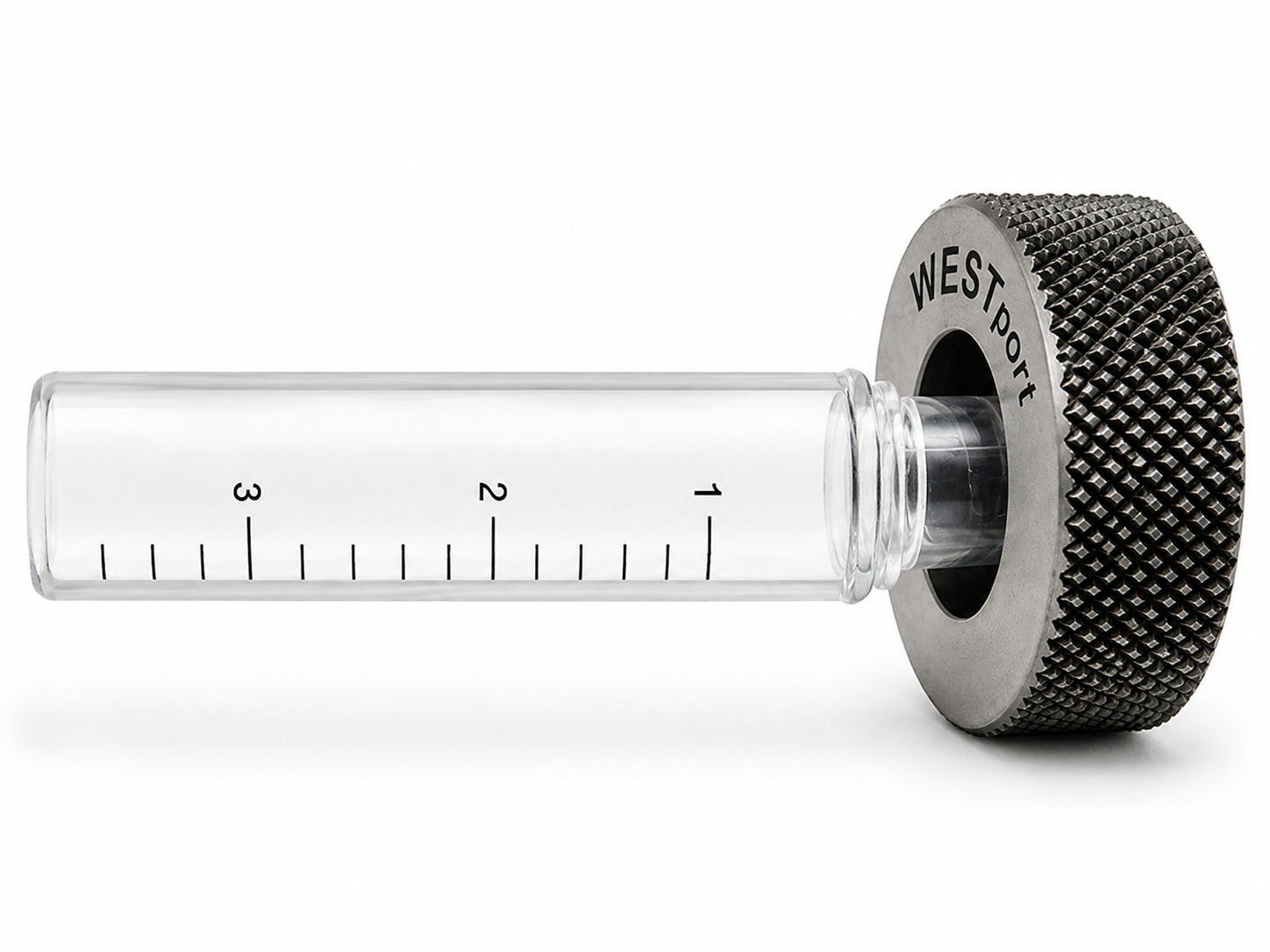

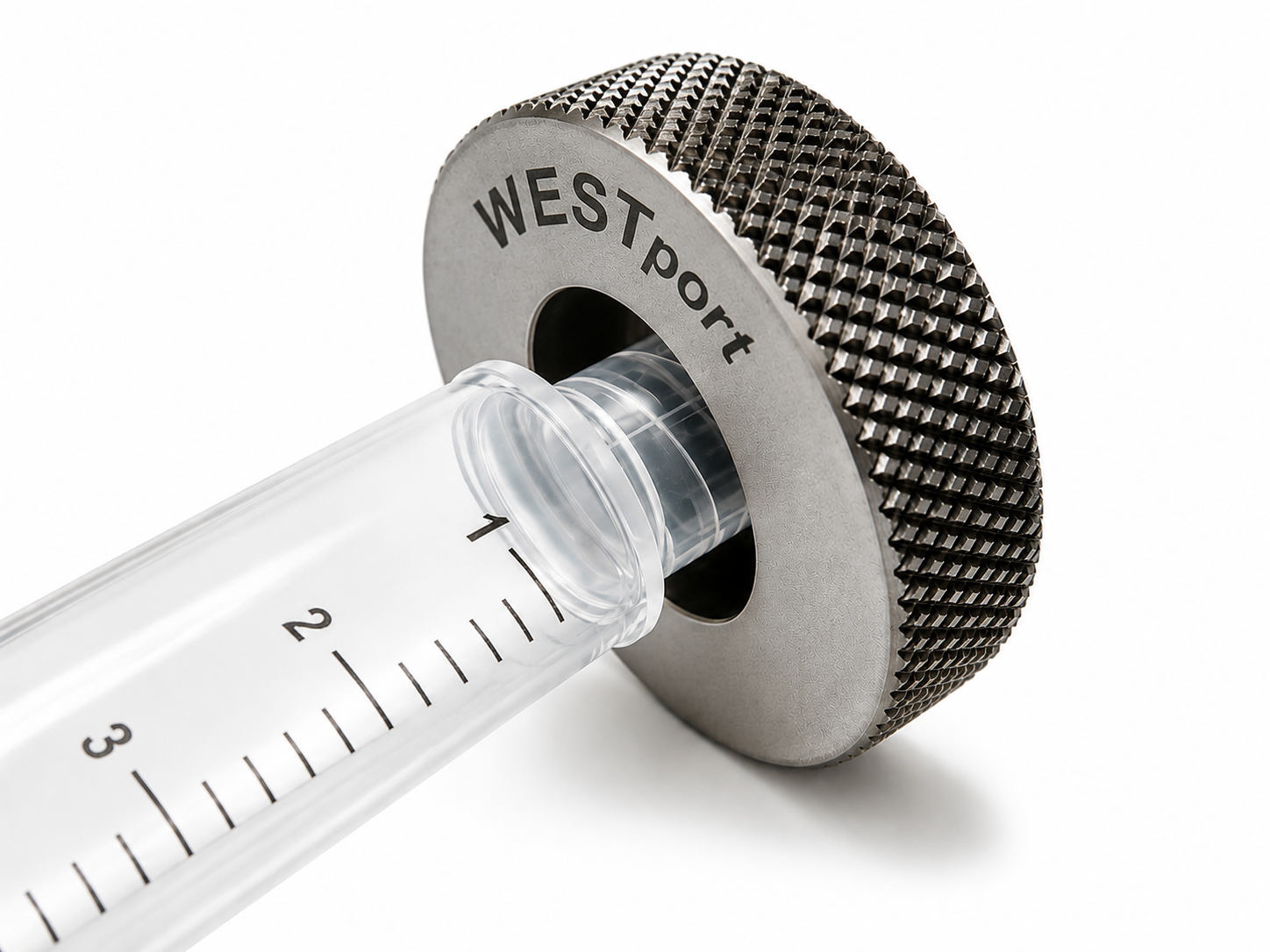

WESTport Luer taper OD gages are ring-style gages for inspecting the outside diameter and taper of Luer fittings — catheter tips, syringe barrels, and connection nozzles. WESTport is a leading supplier of both ID and OD Luer taper gages for the most critical connections in medical device assembly.
Standards
Manufactured to ISO 594 and ISO 80369 small-bore connector standards.
Certification & quality
- Precision ground, hand lapped and polished for accuracy, optimum finish, and maximum wear life
- Certificate of Accuracy, NIST-traceable — included with every gage
- Calibrated in our ISO/IEC 17025 accredited (A2LA) laboratory; Long Form Certificate available on a 5–7 business day turnaround
Request a quote, or inspect internal hubs with the Luer Taper Gage — ID.
Specifications
| Gage Type | Luer taper ring gage |
|---|---|
| Measurement Mode | Go/No-Go / limit |
| What It Inspects | External Luer taper on fittings & tips |
| Profile / Thread Form | Luer conical taper |
| Certification | NIST-traceable Certificate of Accuracy included with every gage. |
| Standards | ISO 594, ISO 80369 |
| Lead Time | Per drawing — quoted per part |
