Involute Spline Plug Gage
Involute Spline Plug Gage
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Quantity
Couldn't load pickup availability

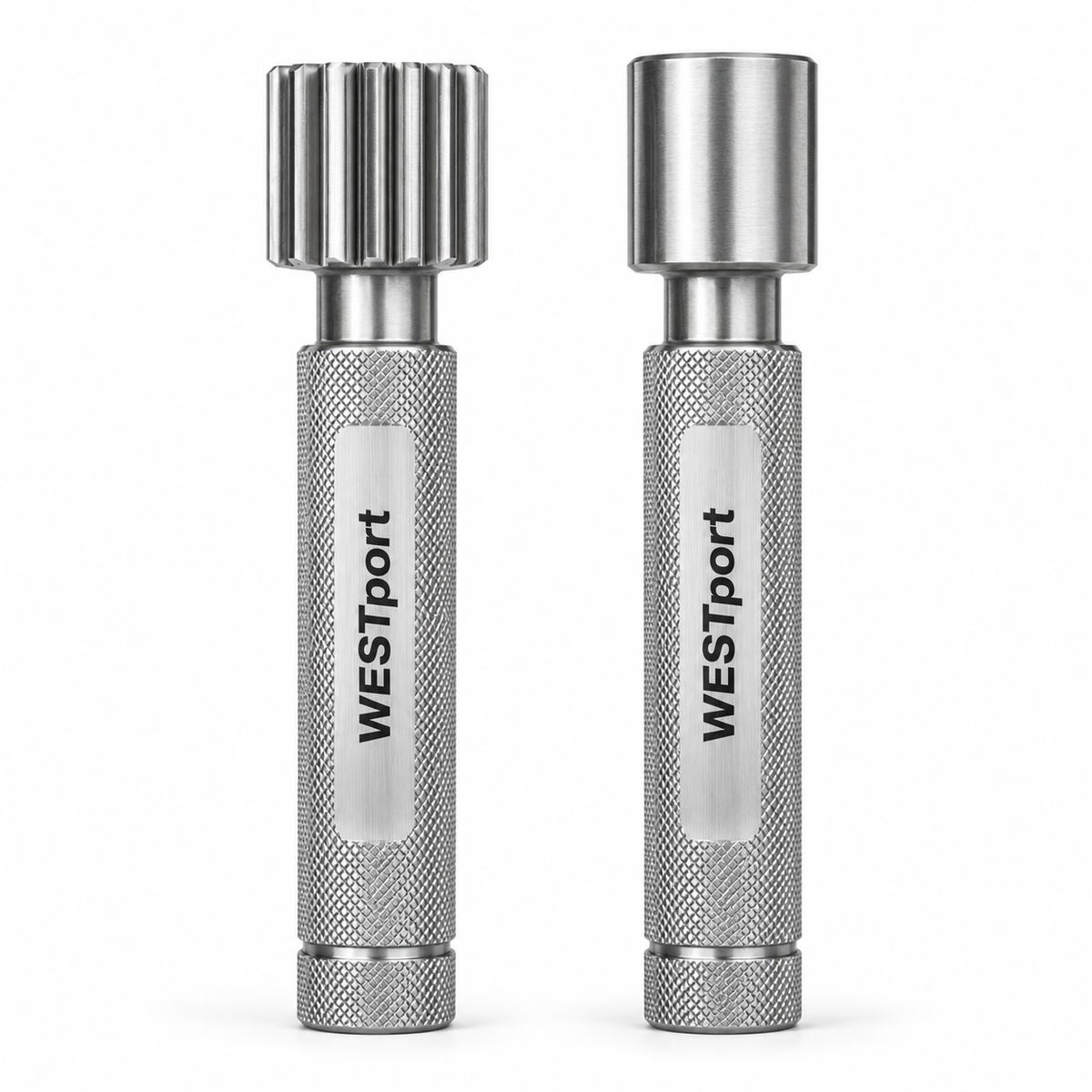

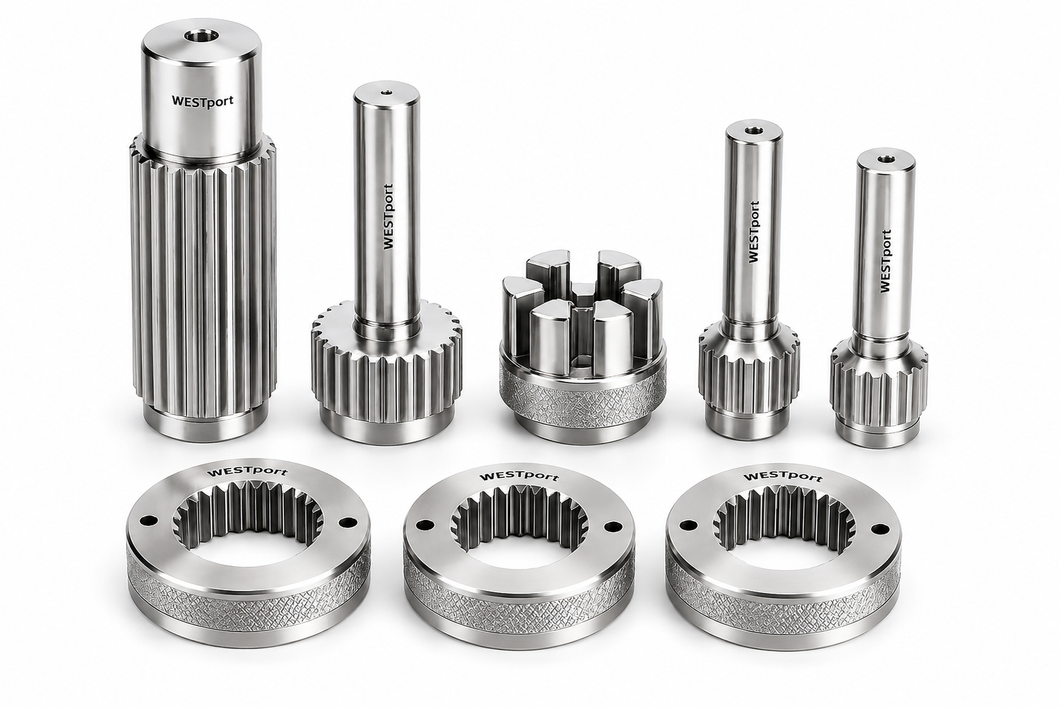

WESTport involute spline plug gages check internal splined bores for composite (effective) error, tooth form, index/pitch, and effective/actual size. Supplied as GO and NO-GO sets: the GO member verifies full-form fit with the mating part, while the NO-GO guards individual space width.
Standards
Built to the major involute spline standards — ANSI B92.1, ANSI B92.2M, ISO 4156, DIN 5480, JIS B 1603, and SAE J498 — or to your drawing.
Actual and effective tolerance
Designed to both actual and effective tolerance, so a part that assembles correctly and stays within individual-feature limits is confirmed in one workflow.
Certification & quality
- Designed, ground, and hand lapped in-house for accuracy and long service life
- Certificate of Accuracy, NIST-traceable — included with every gage
- Calibrated in our ISO/IEC 17025 accredited laboratory; Long Form Certificate available on a 5–7 business day turnaround
Request a quote, or inspect external shafts with the Involute Spline Ring Gage.
Specifications
| Gage Type | Spline plug gage |
|---|---|
| Measurement Mode | Go/No-Go |
| Spline Profile | Involute |
| Diameter Range | 3/16"–20" (5–500 mm) |
| Pitch | 220–1 DP / 0.1–25.4 module |
| Helix Angle | Up to 45° |
| Number of Teeth | Up to 550 |
| What It Inspects | Composite error, tooth form, pitch, effective & actual size |
| Material | Gage steel 62/63C (HSS or tungsten carbide optional) |
| Hardness | 62–63 HRC |
| Certification | NIST-traceable Certificate of Accuracy included with every gage. |
| Standards | ANSI B92.1, ANSI B92.2M, DIN 5480, ISO 4156 |
