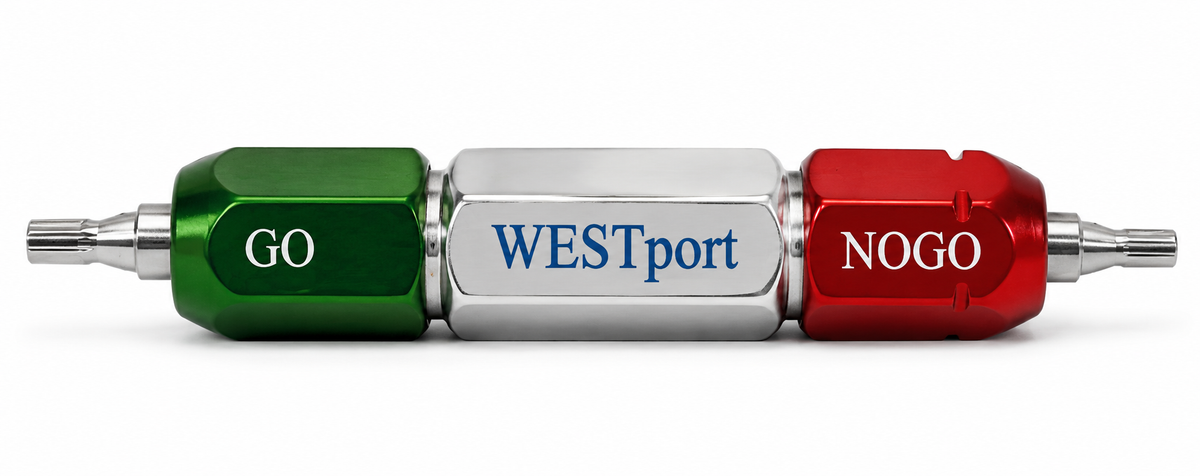

Hexalobe Plug Gage GO/NO GO
Hexalobe Plug Gage GO/NO GO
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Quantity
Couldn't load pickup availability
WESTport hexalobe plug gages are fixed-limit GO/NO GO gages for verifying internal hexalobe drive recesses on surgical fasteners, bone screws, and implant components. The GO member confirms the recess accepts a correctly sized driver; the NO GO guards the upper limit so worn or oversized recesses are caught before assembly.
Built to standard or to your print
Manufactured to ISO 10664 hexalobular driving-feature sizes, or to your own patented or proprietary drive profile. Our engineering team is experienced across the full range of standard and custom hexalobe geometries.
Certification & quality
- Precision ground, hand lapped and polished for accuracy, optimum finish, and maximum wear life
- Certificate of Accuracy, NIST-traceable — included with every gage
- Calibrated in our ISO/IEC 17025 accredited (A2LA) laboratory; Long Form Certificate available on a 5–7 business day turnaround
Request a quote for standard ISO 10664 or custom sizes, or pair with the external Hexalobe Ring Gage.
Specifications
| Gage Type | Hexalobe plug gage |
|---|---|
| Measurement Mode | Go/No-Go |
| What It Inspects | Internal hexalobe drive recesses on fasteners & implants |
| Profile / Thread Form | Hexalobe (ISO 10664 or custom) |
| Certification | NIST-traceable Certificate of Accuracy included with every gage. |
| Standards | ISO 10664, customer print |
| Lead Time | Per drawing — quoted per part |
