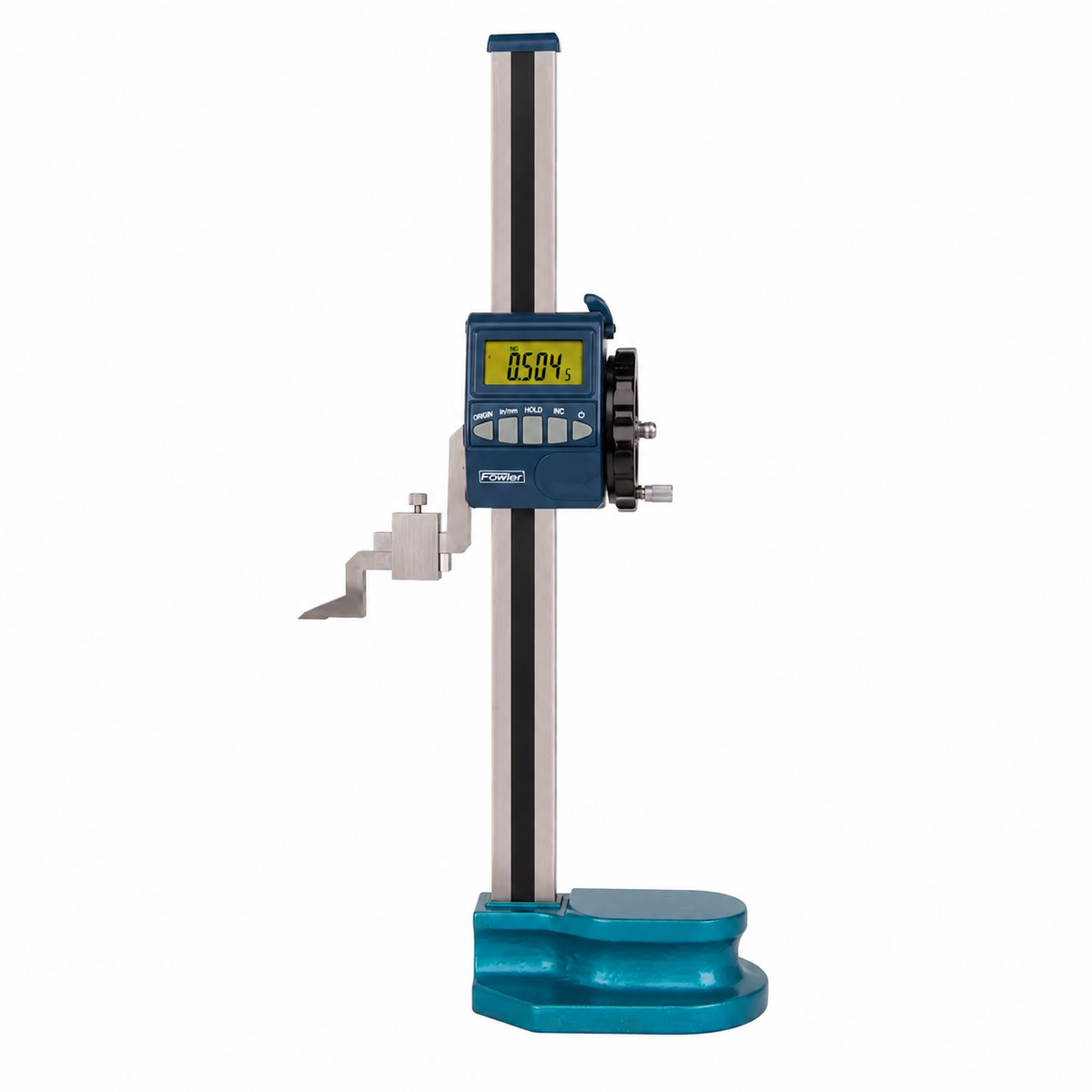

Fowler Z-Height-E ABS PLUS Electronic Height Gage — 12"

Key Features

• True ABS absolute measuring system
• 0–12" / 0–300 mm measuring range
• .0005" / 0.01 mm resolution
• No need to reset the reference after power-down
• Heavy-duty single-column construction
• Coarse and fine adjustment
• Carbide scriber and ground, lapped base
• NIST-certified test block included
• USB data cable included
• Wireless transmitter capability

Overview

The Fowler Z-Height-E ABS PLUS pairs convenient electronic height measurement with a true absolute measuring system that maintains its reference position, letting the operator begin measuring immediately after power-up.

Absolute Measuring System

Because the ABS system does not lose its origin at power-down, there is no reference-setting step at the start of each session — one of the more common sources of operator setup error on conventional incremental height gages.

Construction and Data Output

The heavy-duty single-column construction provides a stable measuring platform, and the large hand wheel handles both coarse and fine positioning. The unit ships with a NIST-certified test block and a USB data cable, and supports a wireless transmitter — making it a strong fit for quality-control departments that need measurement verification and electronic data capture.

Applications

Routine surface-plate inspection, dimensional measurement and layout where absolute measurement and data collection are wanted.
