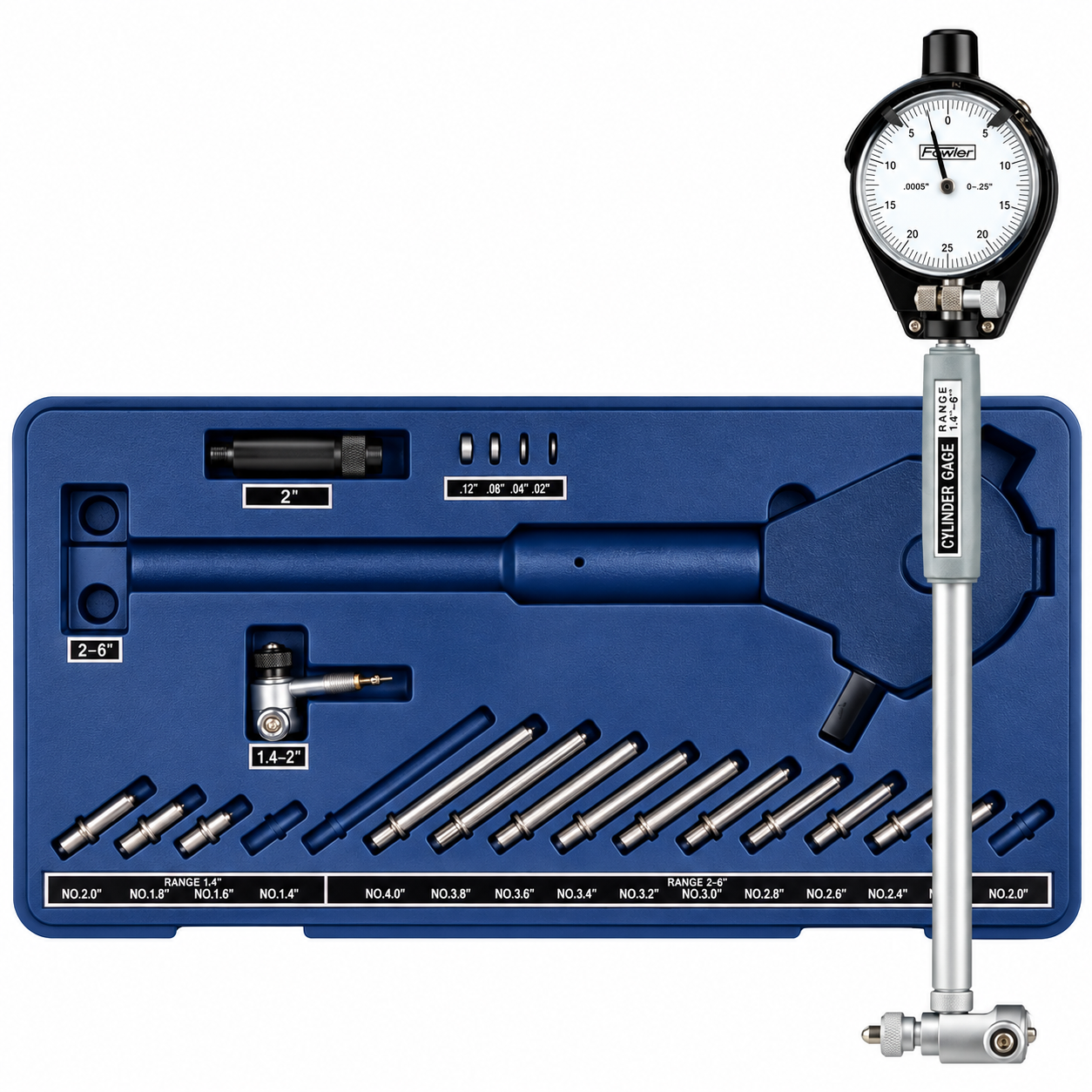

Fowler X-Tender Dial Bore Gage Set — 1.4"–6"

Key Features

• Broad 1.4"–6" measuring range
• .0005" graduations
• 9.5" measuring depth
• Carbide anvils for extended service life
• Self-centering design
• Insulated grip
• Chrome-plated handle
• Extension holder included
• Protective fitted case
• Excellent value for general-purpose bore inspection

Overview

The Fowler X-Tender 1.4"–6" Dial Bore Gage Set is a general-purpose solution for comparative measurement of internal diameters in machine shops, manufacturing facilities and quality-control departments.

Its broad 1.4"–6" measuring range allows one system to cover many common bore inspection applications, and the 9.5" measuring depth reaches well into deeper bores.

Measurement and Operation

Carbide anvils provide wear resistance under repeated inspection, while the self-centering design helps the operator locate the correct measuring position inside the bore. Rocking the gage through the bore lets the operator find the true diameter rather than a chord.

Applications

An economical professional bore-gaging system for everyday internal-diameter inspection, with an insulated grip and chrome-plated handle for comfortable shop-floor handling and a fitted case for storage and transport.
