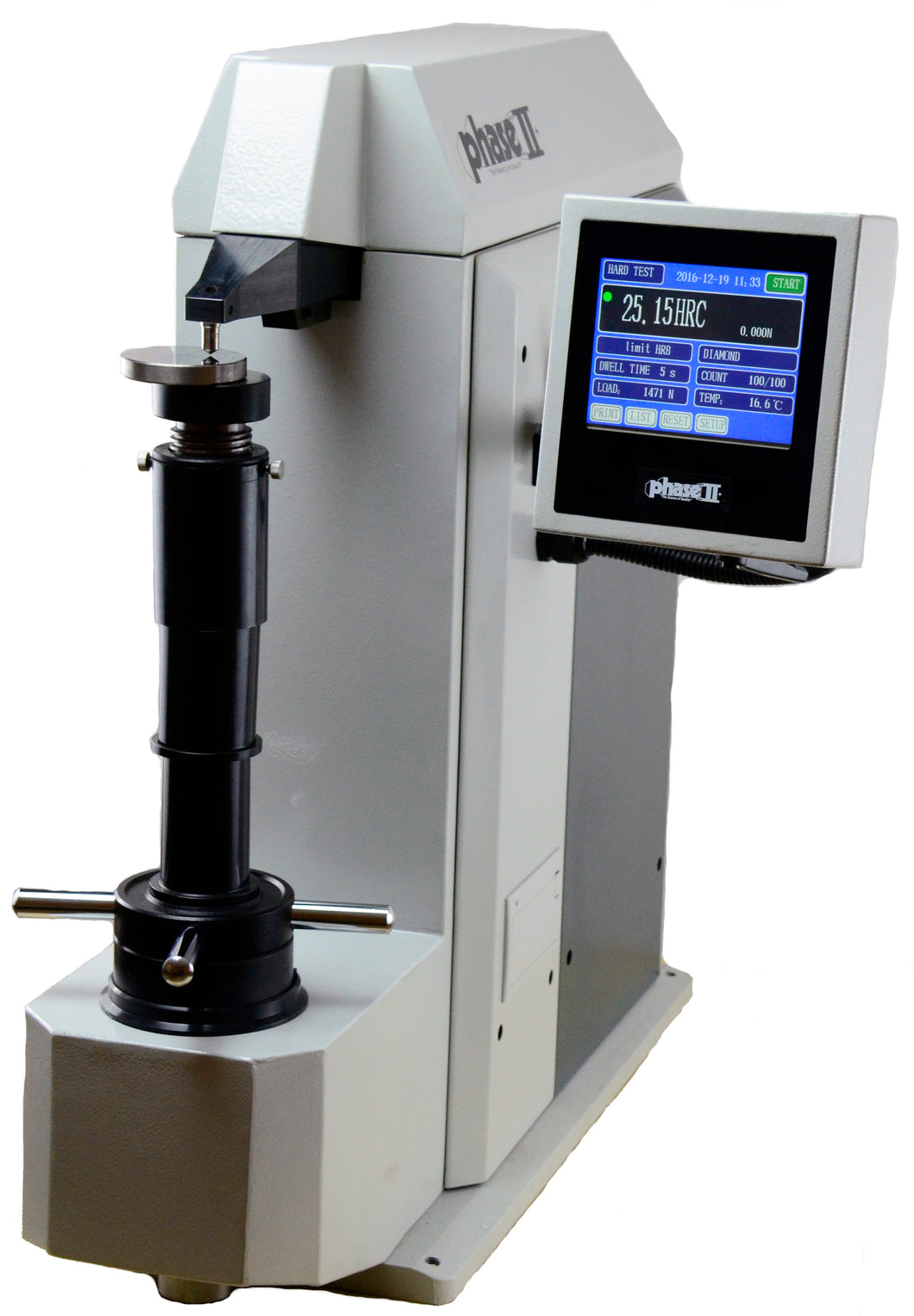

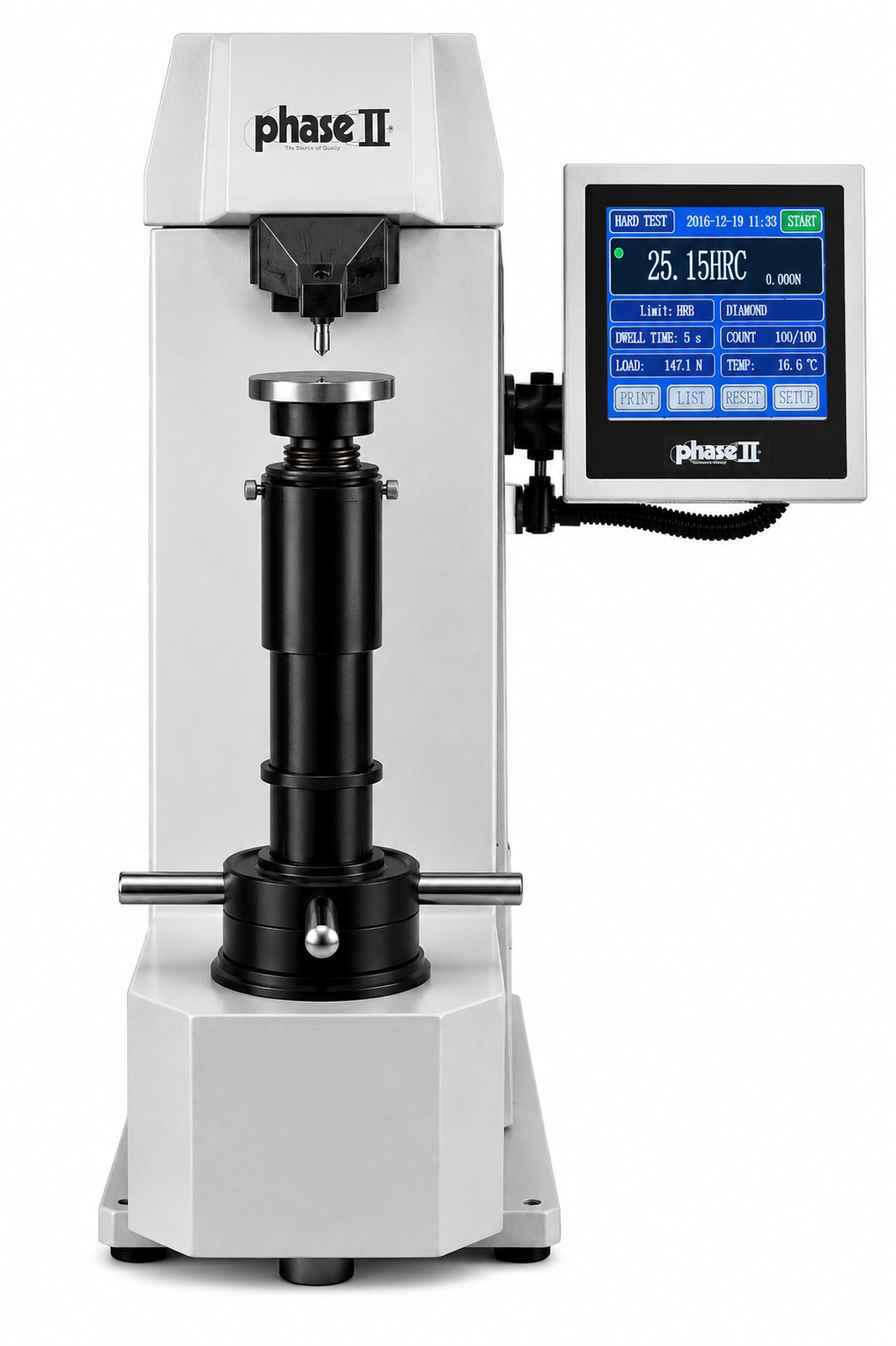

Digital Rockwell Superficial Hardness Tester Phase II - Model 900-387

Key Features

• Performs both Regular Rockwell and Superficial Rockwell testing
• Closed-loop load cell force application
• Fully automatic loading and unloading cycle
• Microcomputer-controlled touch screen
• High-definition LCD display
• USB output
• Programmable dwell time
• Statistical functions
• Test counter
• Upper and lower tolerance settings
• Automatic hardness conversions
• High-speed testing cycle
• Manufactured utilizing ASTM E18 guidelines

Overview

The Phase II Model 900-387 Digital Twin Rockwell / Superficial Rockwell Hardness Tester is a digital hardness testing system that performs both Regular Rockwell and Superficial Rockwell hardness testing in a single instrument. Utilizing a closed-loop load cell system rather than traditional dead weights, the tester automatically controls the application of test forces for improved repeatability and ease of operation.

The Model 900-387 features a microcomputer-controlled touch screen, automatic loading and unloading, programmable dwell times, USB output, statistical functions, and automatic hardness conversions. It is designed for quality control laboratories, manufacturing facilities, research laboratories, and production environments requiring accurate Rockwell hardness testing. Phase II states the Model 900-387 is manufactured utilizing the guidelines of ASTM E18.

Applications

The Model 900-387 is suitable for:

• Heat-treated steel
• Tool steel
• Stainless steel
• Thin sheet materials
• Surface-hardened components
• Cast iron
• Aluminum alloys
• Copper alloys
• Brass
• Precision machined components
• Production inspection
• Incoming material verification

Industries Served

• Aerospace
• Automotive
• Medical Device Manufacturing
• Heat Treating
• Precision Machining
• Tool & Die
• Metal Fabrication
• Research Laboratories
• Quality Assurance Laboratories
• Production Manufacturing

Included Accessories

• C/N diamond indenter
• 1/16 in. ball indenter
• Two HRC hardness test blocks
• One HRB hardness test block
• Two HRN hardness test blocks
• One HRT hardness test block
• 5.87 in. (150 mm) test table
• 2.5 in. (63 mm) flat anvil
• Standard V-anvil
• Accessory case
• Dust cover

Optional Accessories

Available accessories include:

• Certified Rockwell hardness test blocks
• Certified Superficial Rockwell hardness test blocks
• Replacement diamond indenters
• Replacement ball indenters
• Additional anvils
• Calibration accessories

Calibration & Verification

Routine verification should be performed using certified Rockwell and Superficial Rockwell hardness test blocks appropriate for the hardness scales being used. Periodic inspection of the load cell system, indenters, anvils, and machine performance is recommended.

WESTport provides:

• Certified hardness test blocks
• Replacement indenters
• Calibration and verification services
• Repair services
• Technical application assistance

Why Buy from WESTport?

WESTport supports your hardness testing program with:

• Certified hardness test blocks
• Replacement indenters and anvils
• Calibration and repair services
• Product application assistance
• Technical support before and after the sale
• Long-term customer service

Frequently Asked Questions

What makes the 900-387 different from traditional Rockwell testers?

The Model 900-387 uses a motorized closed-loop load cell system instead of a dead-weight loading system.

Can the tester perform both Regular and Superficial Rockwell testing?

Yes. The 900-387 performs both testing methods in one instrument.

Does the tester automatically apply the test force?

Yes. The tester performs automatic loading and unloading using its motorized load cell system.

Does the tester include hardness conversions?

Yes. Automatic hardness conversions are provided as part of the standard software.

Is USB output included?

Yes. USB output is provided for exporting test data.
