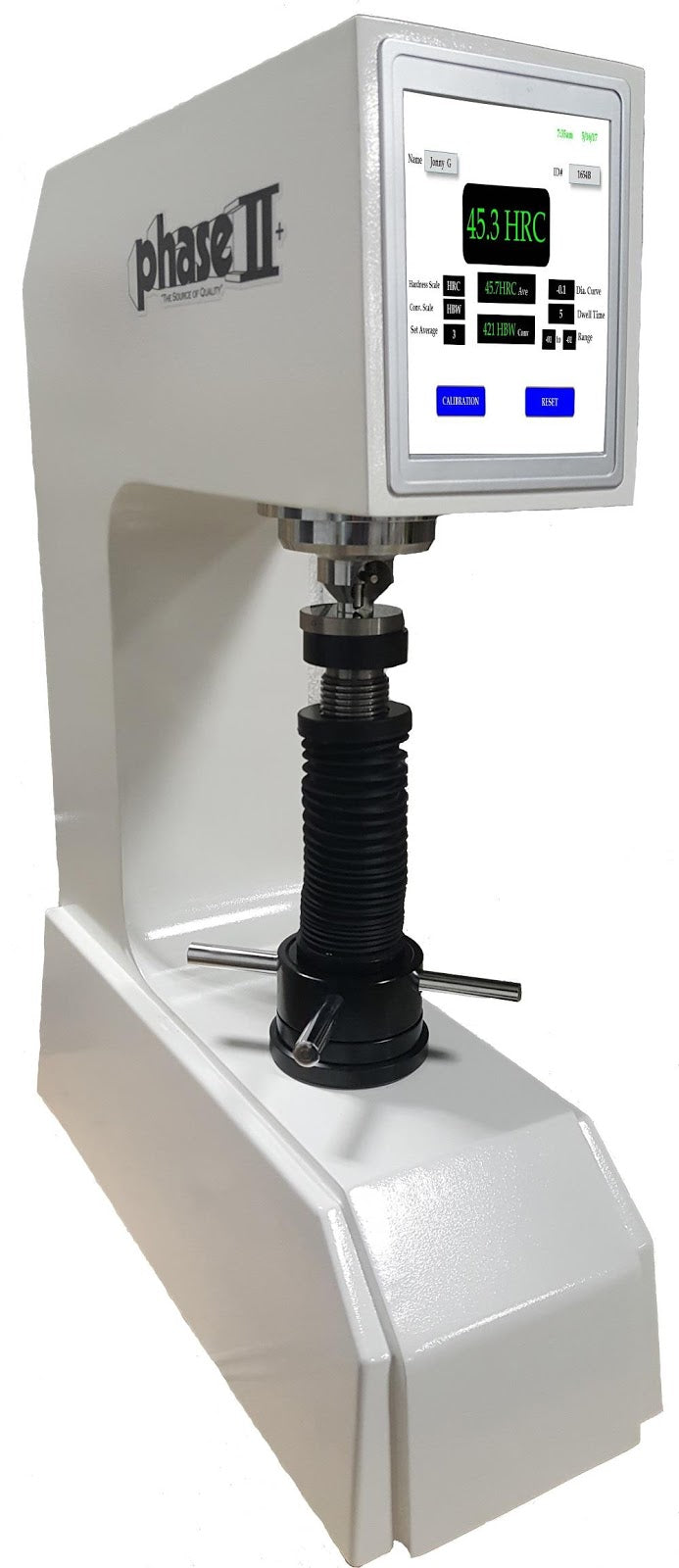

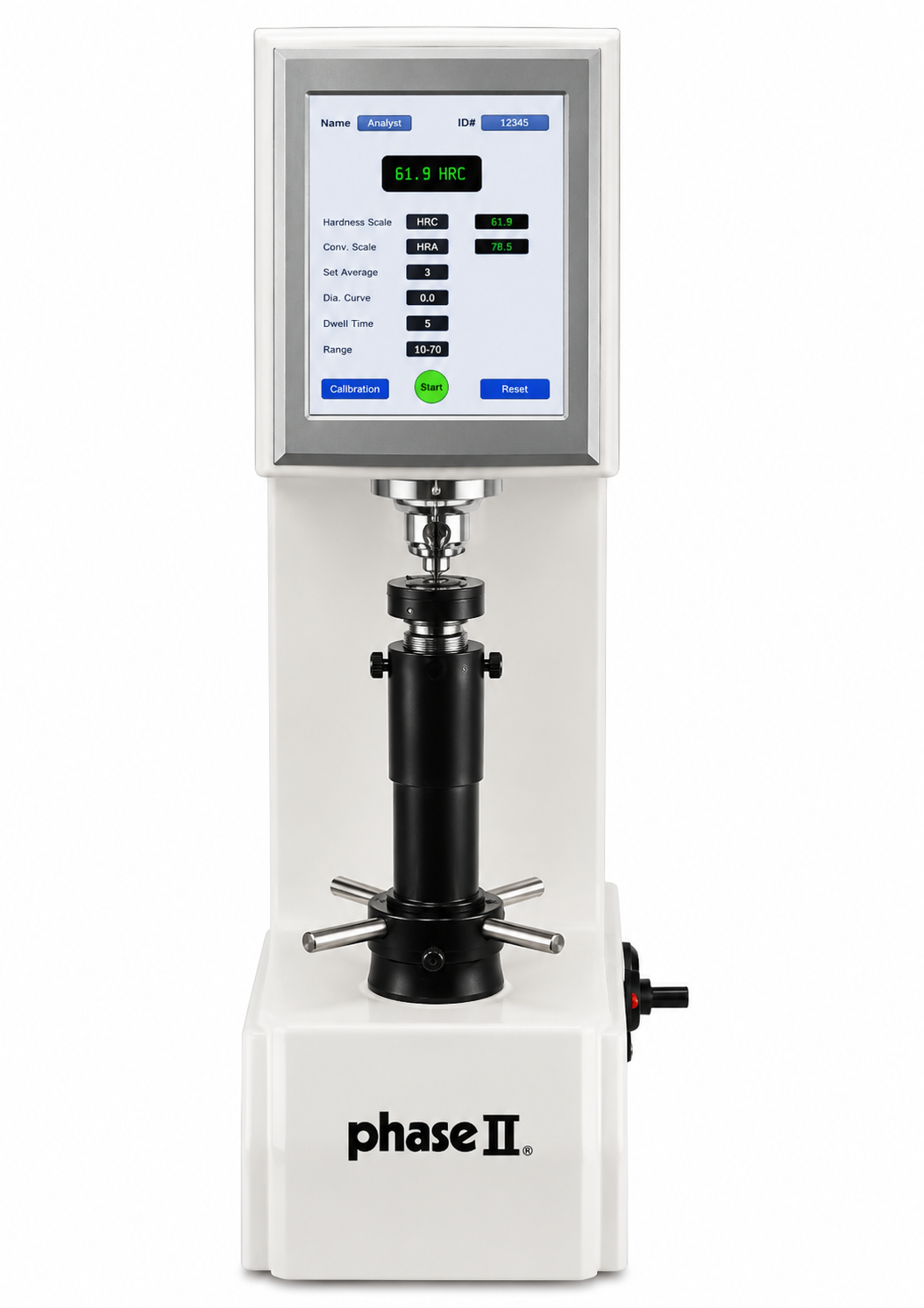

Digital Rockwell Hardness Tester Phase II - Model 900-415

Key Features

• Digital Rockwell hardness tester
• Closed-loop electronic load cell system
• Motorized test force application
• Automatic loading and unloading
• High-definition LCD touch screen
• Microcomputer-controlled operation
• USB output
• Programmable dwell time
• Statistical analysis
• Test counter
• Upper and lower tolerance limits
• Automatic hardness scale conversions
• High-speed testing cycle
• Manufactured utilizing the guidelines of ASTM E18

Overview

The Phase II Model 900-415 Digital Rockwell Hardness Tester is a bench-top hardness testing system designed for Regular Rockwell hardness testing using a closed-loop electronic load cell for precise force control. Unlike traditional dead-weight testers, the Model 900-415 automatically applies and controls the test force through a motorized system, improving repeatability while reducing operator influence.

The tester features a microcomputer-controlled touch screen, automatic loading and unloading, programmable dwell times, automatic hardness conversions, statistical analysis, USB output, and tolerance settings. The Model 900-415 is intended for quality control laboratories, production facilities, machine shops, heat-treating operations, and inspection departments. Phase II states the tester is manufactured utilizing the guidelines of ASTM E18.

Applications

The Model 900-415 is well suited for testing:

• Heat-treated steel
• Tool steel
• Stainless steel
• Carbon steel
• Alloy steel
• Cast iron
• Brass
• Bronze
• Aluminum alloys
• Production components
• Incoming material inspection
• Finished machined parts

The proper Rockwell scale, indenter, and test force should be selected according to the material and applicable testing standard.

Industries Served

• Aerospace
• Automotive
• Defense
• Medical Device Manufacturing
• Heat Treating
• Precision Machining
• Tool & Die
• Metal Fabrication
• Quality Assurance Laboratories
• Research Laboratories

Included Accessories

• C-scale diamond indenter
• 1/16 in. ball indenter
• Two HRC hardness test blocks
• One HRB hardness test block
• 5.87 in. (150 mm) test table
• 2.5 in. (63 mm) flat anvil
• Standard V-anvil
• Accessory case
• Dust cover

Optional Accessories

Available accessories include:

• Certified Rockwell hardness test blocks
• Replacement diamond indenters
• Replacement ball indenters
• Additional anvils
• Calibration accessories
• Hardness testing accessory kits

Calibration & Verification

Routine verification should be performed using certified Rockwell hardness test blocks that correspond to the hardness scales being evaluated. Regular inspection of the load cell system, indenters, anvils, and machine performance helps maintain consistent test results.

WESTport provides:

• Certified Rockwell hardness test blocks
• Replacement diamond and ball indenters
• Calibration and verification services
• Hardness tester repair
• Technical application assistance

Why Buy from WESTport?

WESTport offers complete hardness testing solutions, including:

• Certified Rockwell hardness test blocks
• Replacement indenters and anvils
• Calibration and repair services
• Technical application assistance
• Responsive customer support
• Long-term product support

Frequently Asked Questions

What makes the 900-415 different from a traditional Rockwell tester?

The Model 900-415 replaces the traditional dead-weight system with a closed-loop electronic load cell that automatically controls the applied force.

Which Rockwell scales can the tester perform?

The tester performs all standard Regular Rockwell hardness scales when equipped with the correct indenter and test force.

Does the tester automatically apply the test force?

Yes. The motorized closed-loop load cell system automatically applies and controls the testing force.

Can test results be transferred to a computer?

Yes. USB output is included for exporting test results.

Does the tester provide statistical functions?

Yes. Statistical analysis and a test counter are included as standard features.

Can WESTport provide calibration and certified hardness test blocks?

Yes. WESTport supplies certified Rockwell hardness test blocks, replacement indenters, calibration services, repair services, and technical support.
