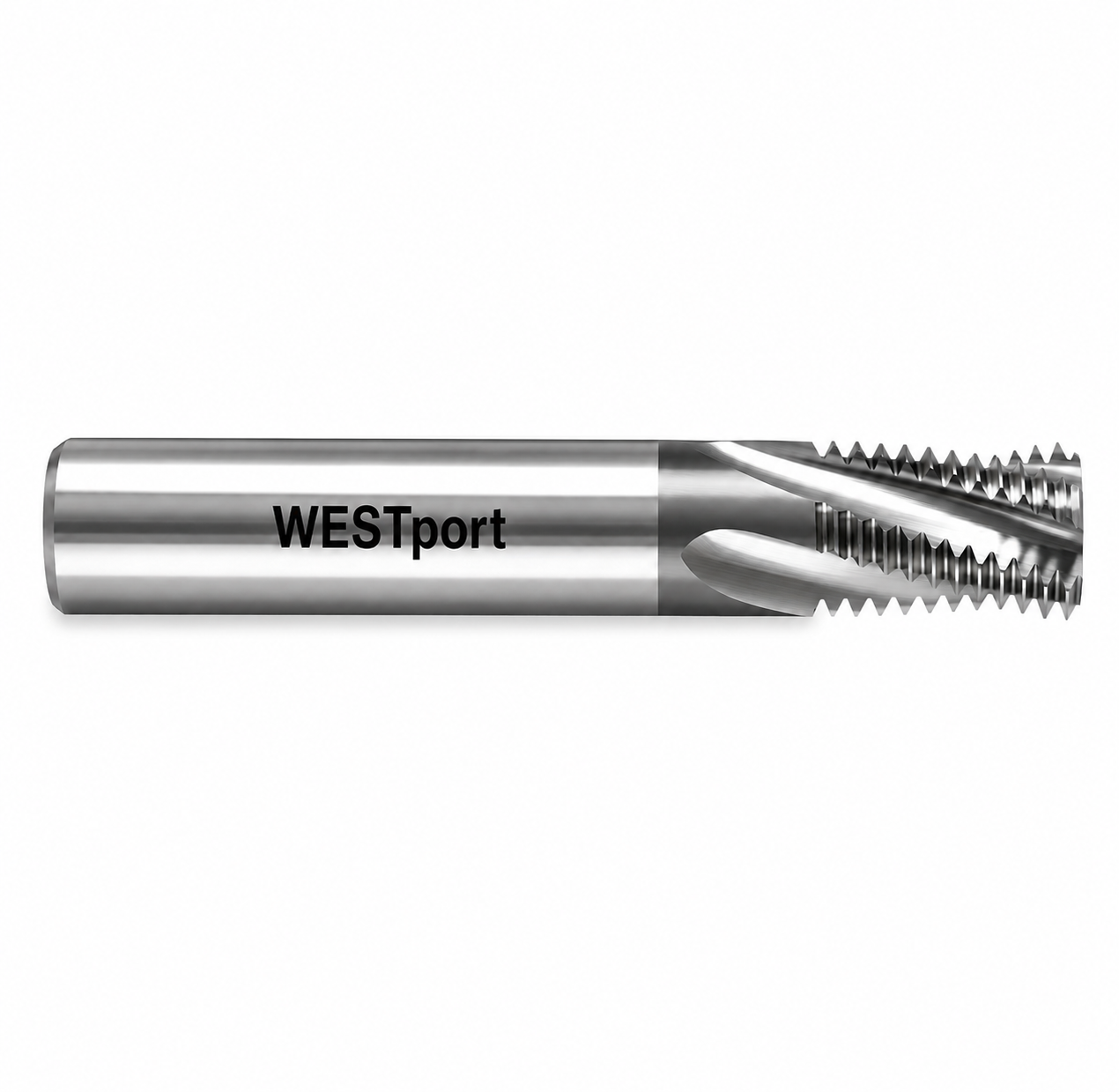

WESTport Carbide Helical UN Thread Mills are engineered to produce precision Unified National (UN) threads using CNC helical interpolation. Designed for high-performance machining, these solid carbide thread mills provide exceptional accuracy, excellent surface finish, and outstanding tool life while significantly reducing cutting forces compared to conventional tapping. Whether machining internal or external threads, thread milling offers greater flexibility, improved process reliability, and reduced risk of damaging expensive workpieces.
Manufactured from premium solid carbide, WESTport Carbide Helical UN Thread Mills provide the rigidity and wear resistance required for today's demanding machining environments. The precision helical flute geometry minimizes chatter, improves chip evacuation, and produces exceptionally clean thread profiles. Solid carbide construction also allows higher cutting speeds and feed rates while maintaining dimensional stability throughout long production runs, making these tools ideal for CNC machining centers and high-volume manufacturing.
WESTport offers Carbide Helical Thread Mills for the complete family of Unified National thread forms, including UNC, UNF, UNEF, and UNS. A major advantage of thread milling is that one cutter can often produce multiple thread diameters sharing the same pitch, reducing tooling inventory while increasing manufacturing flexibility. Because the cutter removes material gradually rather than all at once, spindle loads remain lower than with conventional taps, improving machining stability and reducing the likelihood of catastrophic tool failure.
Thread milling is particularly valuable when machining large thread diameters, blind holes, interrupted threads, and difficult materials where broken taps can be costly or impossible to remove. If a thread mill becomes damaged, the workpiece can frequently be recovered simply by replacing the cutter and restarting the operation. This advantage makes Carbide Helical UN Thread Mills especially attractive for aerospace, medical, defense, energy, mold and die, and precision manufacturing applications where component value is high and machining reliability is essential.
WESTport Carbide Helical UN Thread Mills are designed to machine stainless steel, titanium, Inconel®, nickel-based alloys, hardened steels, cast iron, aluminum, brass, bronze, and engineering plastics with excellent consistency. Whether producing prototypes or supporting continuous production, these tools deliver precision thread quality, outstanding repeatability, and long service life while reducing overall manufacturing costs.
Since 1989, WESTport has supplied manufacturers throughout North America and around the world with precision thread gages, custom taps, thread mills, dies, metrology equipment, hardness testing products, and ISO/IEC 17025 calibration services. Our commitment to engineering excellence, responsive customer service, and precision manufacturing has made WESTport a trusted supplier of thread-cutting solutions for more than 35 years.
Benefits
- Produces highly accurate Unified National threads
- Lower cutting forces than conventional tapping
- Reduces the risk of broken taps and scrapped parts
- Excellent thread finish and dimensional consistency
- Longer tool life
- One cutter can often machine multiple thread diameters with the same pitch
- Outstanding performance in difficult-to-machine materials
- Increases machining flexibility and production efficiency
Typical Applications
- Aerospace components
- Medical devices
- Automotive manufacturing
- Hydraulic components
- Mold and die manufacturing
- Defense industry parts
- Industrial machinery
- Energy industry equipment
- Precision machine shops
- High-performance CNC machining
Technical Information
WESTport Carbide Helical UN Thread Mills use CNC helical interpolation to generate precision Unified National threads while minimizing cutting pressure and improving thread quality. Solid carbide construction provides exceptional rigidity and wear resistance, allowing higher machining speeds and longer service life in demanding applications. Available in UNC, UNF, UNEF, and UNS thread forms, these thread mills are ideal for machining stainless steel, titanium, Inconel®, hardened steels, aluminum, and other challenging materials where accuracy and reliability are critical.
Why Choose WESTport-
For more than 35 years, WESTport has been a trusted supplier of precision thread gages, custom taps, thread mills, dies, metrology products, hardness testing equipment, and ISO/IEC 17025 calibration services. Our experienced engineering team works directly with manufacturers to develop thread-cutting solutions that improve productivity, reduce machining costs, and consistently deliver precision results. Whether you require standard tooling or a fully customized thread milling solution, WESTport delivers the quality, technical expertise, and responsive customer support manufacturers have relied on since 1989.
