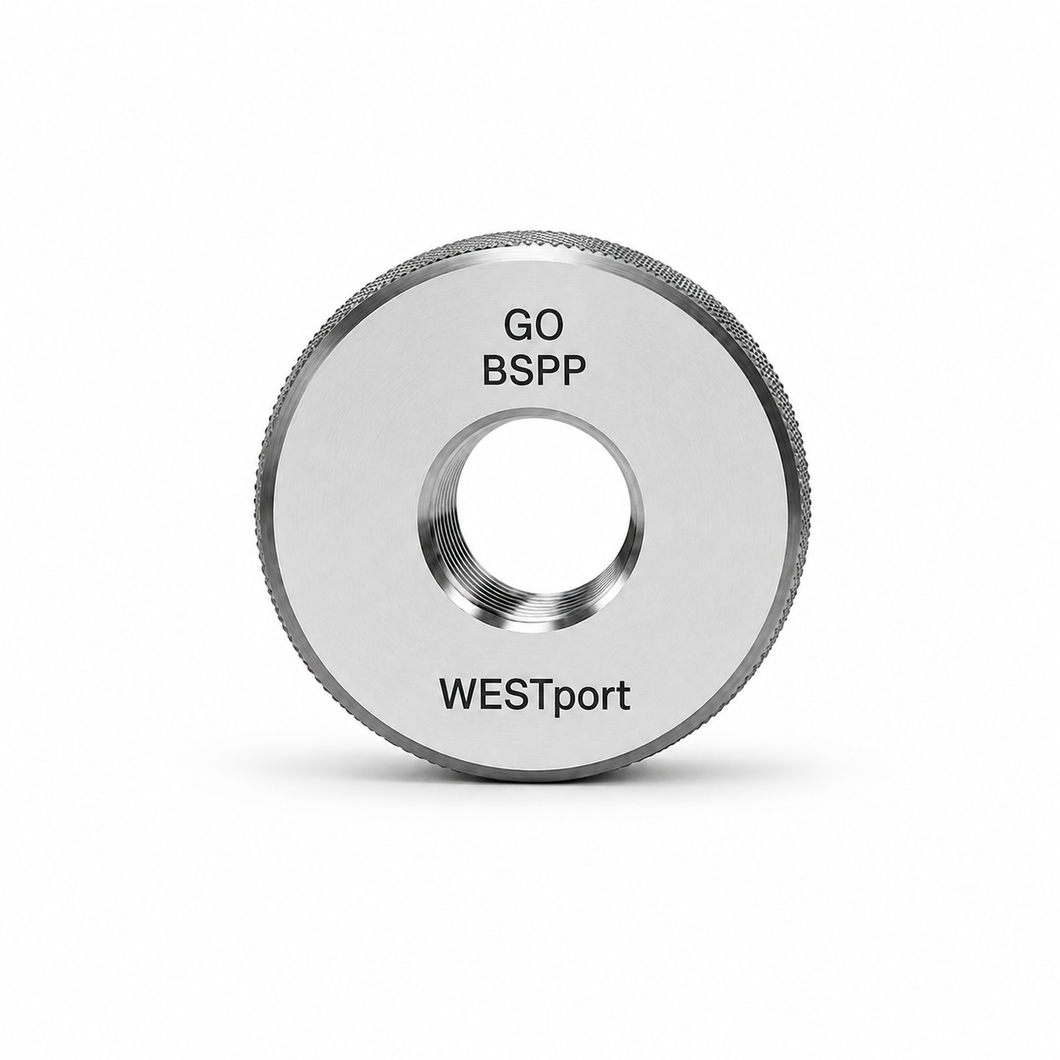

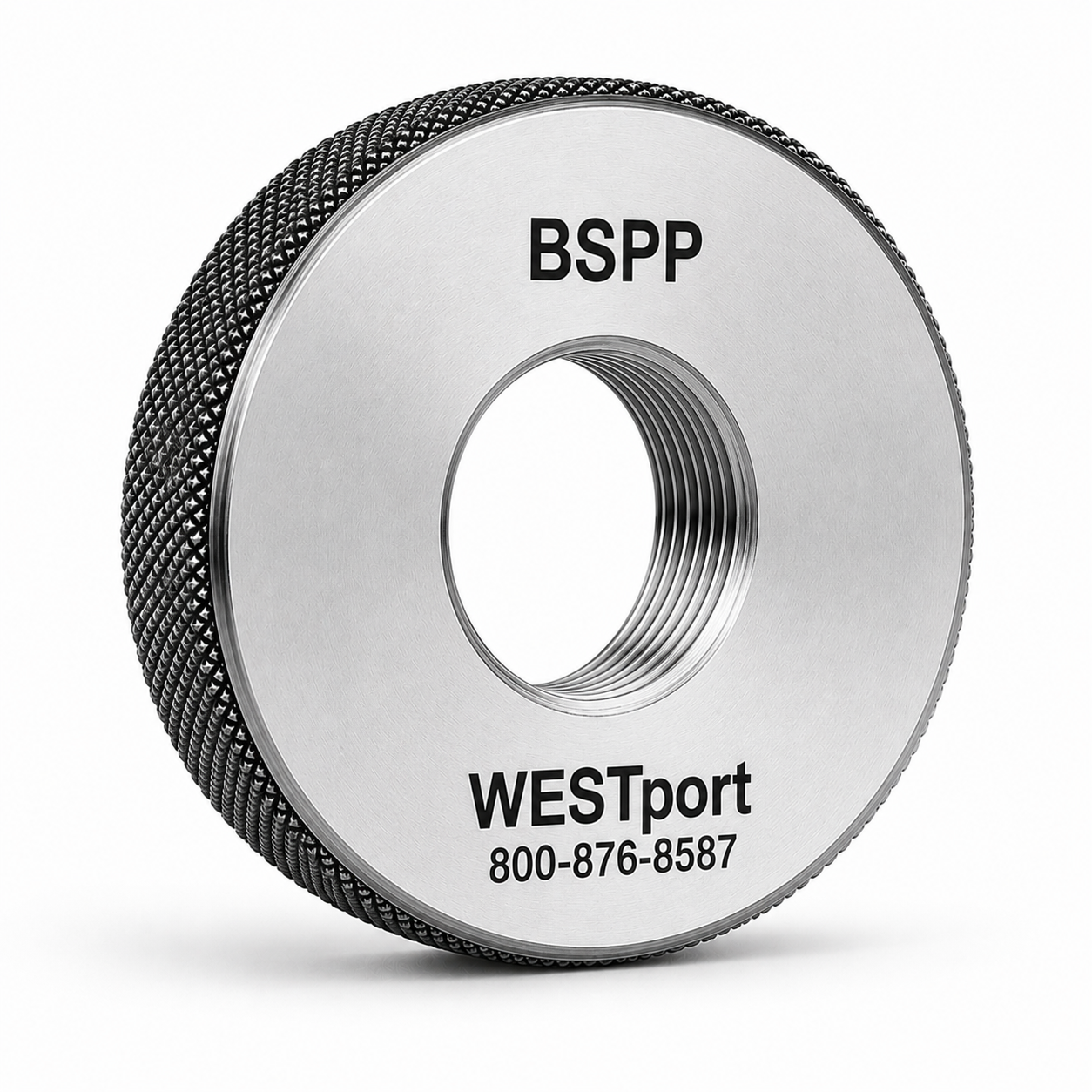

BSPP Thread Ring Gage

BSPP Thread Ring Gage

$211.00 USD
$211.00 USD
Sale Sold out

Part #:BSPPGAR1
Call for Quote

Features

  • Checks parallel threads
  • Checks external threads
  • GO/NOGO members
More Details View full details

Available Products

SizeTypeMemberTPISKUPrice
G1/8 Adjustable GO 28 BSPPGAR1 $211.00
G1/8 Adjustable NO GO 28 BSPPNGAR1 $191.00
G1/8 Adjustable GO/NO GO Ring Gage Set 28 BSPPARS1 $402.00
G1/8 Solid GO 28 BSPPGSR1 $274.00
G1/8 Solid NO GO 28 BSPPNGSR1 $250.00
G1/8 Solid GO/NO GO Ring Gage Set 28 BSPPSRS1 $524.00
G1/4 Adjustable GO 19 BSPPGAR2 $243.00
G1/4 Adjustable NO GO 19 BSPPNGAR2 $217.00
G1/4 Adjustable GO/NO GO Ring Gage Set 19 BSPPARS2 $460.00
G1/4 Solid GO 19 BSPPGSR2 $316.00
G1/4 Solid NO GO 19 BSPPNGSR2 $283.00
G1/4 Solid GO/NO GO Ring Gage Set 19 BSPPSRS2 $599.00
G3/8 Adjustable GO 19 BSPPGAR3 $281.00
G3/8 Adjustable NO GO 19 BSPPNGAR3 $252.00
G3/8 Adjustable GO/NO GO Ring Gage Set 19 BSPPARS3 $533.00
G3/8 Solid GO 19 BSPPGSR3 $365.00
G3/8 Solid NO GO 19 BSPPNGSR3 $330.00
G3/8 Solid GO/NO GO Ring Gage Set 19 BSPPSRS3 $695.00
G1/2 Adjustable GO 14 BSPPGAR4 $336.00
G1/2 Adjustable NO GO 14 BSPPNGAR4 $304.00
G1/2 Adjustable GO/NO GO Ring Gage Set 14 BSPPARS4 $640.00
G1/2 Solid GO 14 BSPPGSR4 $437.00
G1/2 Solid NO GO 14 BSPPNGSR4 $392.00
G1/2 Solid GO/NO GO Ring Gage Set 14 BSPPSRS4 $829.00
G5/8 Adjustable GO 14 BSPPGAR5 $359.00
G5/8 Adjustable NO GO 14 BSPPNGAR5 $323.00
G5/8 Adjustable GO/NO GO Ring Gage Set 14 BSPPARS5 $682.00
G5/8 Solid GO 14 BSPPGSR5 $464.00
G5/8 Solid NO GO 14 BSPPNGSR5 $418.00
G5/8 Solid GO/NO GO Ring Gage Set 14 BSPPSRS5 $882.00
G3/4 Adjustable GO 14 BSPPGAR6 $386.00
G3/4 Adjustable NO GO 14 BSPPNGAR6 $349.00
G3/4 Adjustable GO/NO GO Ring Gage Set 14 BSPPARS6 $735.00
G3/4 Solid GO 14 BSPPGSR6 $503.00
G3/4 Solid NO GO 14 BSPPNGSR6 $451.00
G3/4 Solid GO/NO GO Ring Gage Set 14 BSPPSRS6 $954.00
G7/8 Adjustable GO 14 BSPPGAR7 $427.00
G7/8 Adjustable NO GO 14 BSPPNGAR7 $383.00
G7/8 Adjustable GO/NO GO Ring Gage Set 14 BSPPARS7 $810.00
G7/8 Solid GO 14 BSPPGSR7 $554.00
G7/8 Solid NO GO 14 BSPPNGSR7 $498.00
G7/8 Solid GO/NO GO Ring Gage Set 14 BSPPSRS7 $1,052.00
G1 Adjustable GO 11 BSPPGAR8 $462.00
G1 Adjustable NO GO 11 BSPPNGAR8 $416.00
G1 Adjustable GO/NO GO Ring Gage Set 11 BSPPARS8 $878.00
G1 Solid GO 11 BSPPGSR8 $603.00
G1 Solid NO GO 11 BSPPNGSR8 $541.00
G1 Solid GO/NO GO Ring Gage Set 11 BSPPSRS8 $1,144.00
G1 1/8 Adjustable GO 11 BSPPGAR9 $516.00
G1 1/8 Adjustable NO GO 11 BSPPNGAR9 $463.00
G1 1/8 Adjustable GO/NO GO Ring Gage Set 11 BSPPARS9 $979.00
G1 1/8 Solid GO 11 BSPPGSR9 $670.00
G1 1/8 Solid NO GO 11 BSPPNGSR9 $604.00
G1 1/8 Solid GO/NO GO Ring Gage Set 11 BSPPSRS9 $1,274.00
G1 1/4 Adjustable GO 11 BSPPGAR10 $549.00
G1 1/4 Adjustable NO GO 11 BSPPNGAR10 $494.00
G1 1/4 Adjustable GO/NO GO Ring Gage Set 11 BSPPARS10 $1,043.00
G1 1/4 Solid GO 11 BSPPGSR10 $714.00
G1 1/4 Solid NO GO 11 BSPPNGSR10 $642.00
G1 1/4 Solid GO/NO GO Ring Gage Set 11 BSPPSRS10 $1,356.00
G1 1/2 Adjustable GO 11 BSPPGAR11 $563.00
G1 1/2 Adjustable NO GO 11 BSPPNGAR11 $507.00
G1 1/2 Adjustable GO/NO GO Ring Gage Set 11 BSPPARS11 $1,070.00
G1 1/2 Solid GO 11 BSPPGSR11 $734.00
G1 1/2 Solid NO GO 11 BSPPNGSR11 $658.00
G1 1/2 Solid GO/NO GO Ring Gage Set 11 BSPPSRS11 $1,392.00
G1 3/4 Adjustable GO 11 BSPPGAR12 $601.00
G1 3/4 Adjustable NO GO 11 BSPPNGAR12 $567.00
G1 3/4 Adjustable GO/NO GO Ring Gage Set 11 BSPPARS12 $1,168.00
G1 3/4 Solid GO 11 BSPPGSR12 $782.00
G1 3/4 Solid NO GO 11 BSPPNGSR12 $737.00
G1 3/4 Solid GO/NO GO Ring Gage Set 11 BSPPSRS12 $1,519.00
G2 Adjustable GO 11 BSPPGAR13 $658.00
G2 Adjustable NO GO 11 BSPPNGAR13 $592.00
G2 Adjustable GO/NO GO Ring Gage Set 11 BSPPARS13 $1,250.00
G2 Solid GO 11 BSPPGSR13 $857.00
G2 Solid NO GO 11 BSPPNGSR13 $771.00
G2 Solid GO/NO GO Ring Gage Set 11 BSPPSRS13 $1,628.00
G2 1/4 Adjustable GO 11 BSPPGAR14 $916.00
G2 1/4 Adjustable NO GO 11 BSPPNGAR14 $824.00
G2 1/4 Adjustable GO/NO GO Ring Gage Set 11 BSPPARS14 $1,740.00
G2 1/4 Solid GO 11 BSPPGSR14 $1,192.00
G2 1/4 Solid NO GO 11 BSPPNGSR14 $1,074.00
G2 1/4 Solid GO/NO GO Ring Gage Set 11 BSPPSRS14 $2,266.00
G2 1/2 Adjustable GO 11 BSPPGAR15 $916.00
G2 1/2 Adjustable NO GO 11 BSPPNGAR15 $824.00
G2 1/2 Adjustable GO/NO GO Ring Gage Set 11 BSPPARS15 $1,740.00
G2 1/2 Solid GO 11 BSPPGSR15 $1,192.00
G2 1/2 Solid NO GO 11 BSPPNGSR15 $1,074.00
G2 1/2 Solid GO/NO GO Ring Gage Set 11 BSPPSRS15 $2,266.00
G3 Adjustable GO 11 BSPPGAR16 $1,064.00
G3 Adjustable NO GO 11 BSPPNGAR16 $958.00
G3 Adjustable GO/NO GO Ring Gage Set 11 BSPPARS16 $2,022.00
G3 Solid GO 11 BSPPGSR16 $1,382.00
G3 Solid NO GO 11 BSPPNGSR16 $1,244.00
G3 Solid GO/NO GO Ring Gage Set 11 BSPPSRS16 $2,626.00
G3 1/2 Adjustable GO 11 BSPPGAR17 $1,227.00
G3 1/2 Adjustable NO GO 11 BSPPNGAR17 $1,103.00
G3 1/2 Adjustable GO/NO GO Ring Gage Set 11 BSPPARS17 $2,330.00
G3 1/2 Solid GO 11 BSPPGSR17 $1,594.00
G3 1/2 Solid NO GO 11 BSPPNGSR17 $1,437.00
G3 1/2 Solid GO/NO GO Ring Gage Set 11 BSPPSRS17 $3,031.00
G4 Adjustable GO 11 BSPPGAR18 $1,426.00
G4 Adjustable NO GO 11 BSPPNGAR18 $1,284.00
G4 Adjustable GO/NO GO Ring Gage Set 11 BSPPARS18 $2,710.00
G4 Solid GO 11 BSPPGSR18 $1,852.00
G4 Solid NO GO 11 BSPPNGSR18 $1,668.00
G4 Solid GO/NO GO Ring Gage Set 11 BSPPSRS18 $3,520.00
G5 Adjustable GO 11 BSPPGAR19 $1,888.00
G5 Adjustable NO GO 11 BSPPNGAR19 $1,702.00
G5 Adjustable GO/NO GO Ring Gage Set 11 BSPPARS19 $3,590.00
G5 Solid GO 11 BSPPGSR19 $2,457.00
G5 Solid NO GO 11 BSPPNGSR19 $2,210.00
G5 Solid GO/NO GO Ring Gage Set 11 BSPPSRS19 $4,667.00
G6 Adjustable GO 11 BSPPGAR20 $2,352.00
G6 Adjustable NO GO 11 BSPPNGAR20 $2,115.00
G6 Adjustable GO/NO GO Ring Gage Set 11 BSPPARS20 $4,467.00
G6 Solid GO 11 BSPPGSR20 $3,057.00
G6 Solid NO GO 11 BSPPNGSR20 $2,751.00
G6 Solid GO/NO GO Ring Gage Set 11 BSPPSRS20 $5,808.00

Product Details

These gages checks parallel threads. However it checks the external threads instead of the internal threads. They utilize GO/NOGO members and the standard for this gage is ISO 228-1 and ISO 228-2.

ISO 228 ‐ 1 covers pipe threads where pressure‐tight joints are not made on the threads. ISO 228 ‐ 2 covers the limit gages for pipe threads where pressure‐tight joints are not made on the threads. BSPP thread plug gages have a 55 degree thread profile. This specification covers many GO and NOGO gages that are used to verify different elements of the thread. The GO gage insures that the profile of the machined piece does not exceed the maximum of material provided for by the tolerances applied to the dimensions of the profile defined by ISO 228‐1. The NOGO gage for the threads of the pieces fix the minimum material limit on the flanks of the thread. These gages are available in full form style compliant with the ISO specification or a modified style manufactured in the United States. The full form BSPP thread ring gages are made in a solid style and are available in Class A and Class B. The Class A GO BSPP ring gage are also compatible for Class B threads and are calibrated with a wear check plug gage. The NOGO Class B gage are quoted on request.

WESTport provides a complete line of BSPP British Standard Pipe Parallel Thread Gages. Free Technical support is available from our core of engineers to assist you with any questions you may have.
