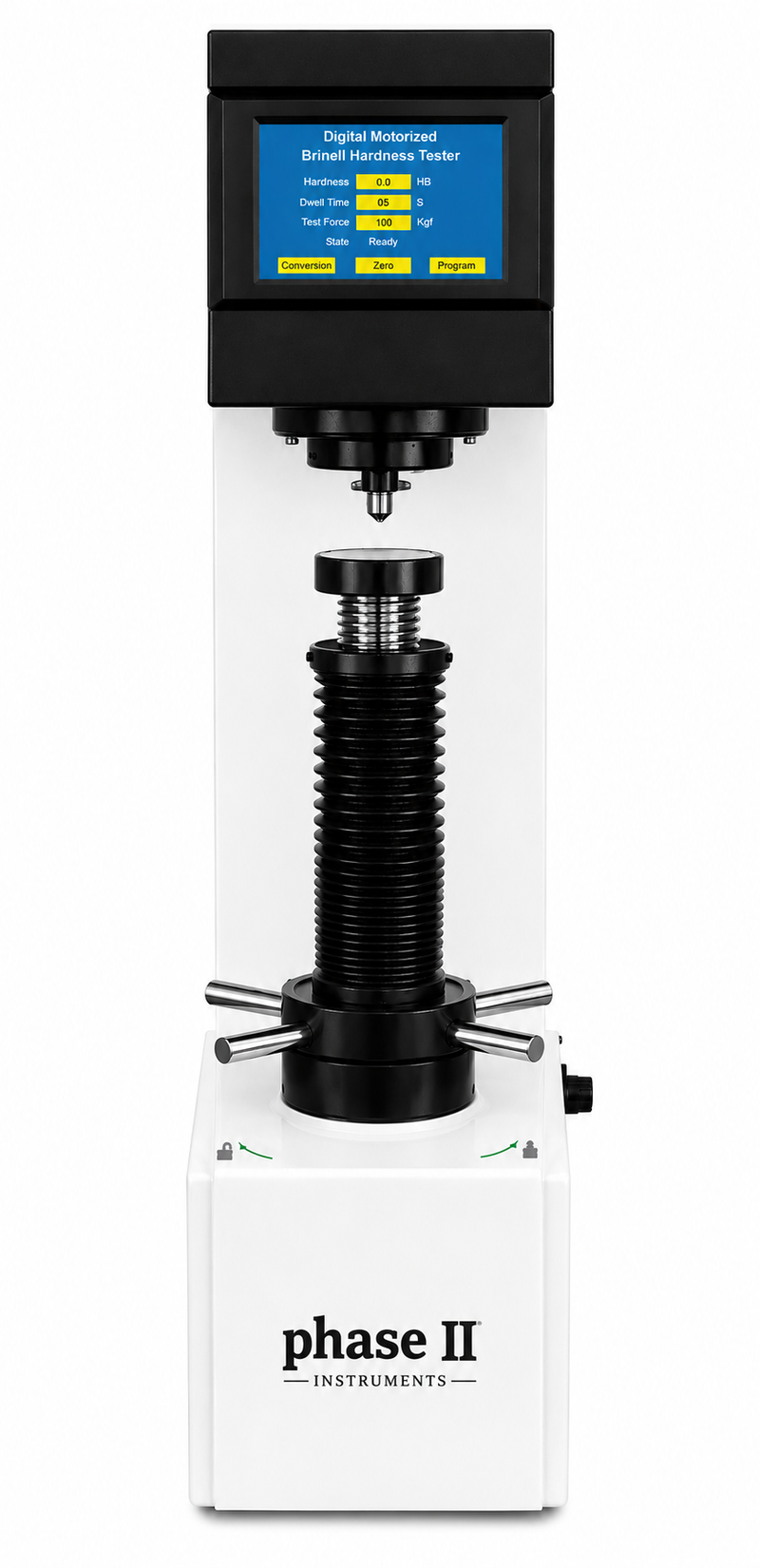

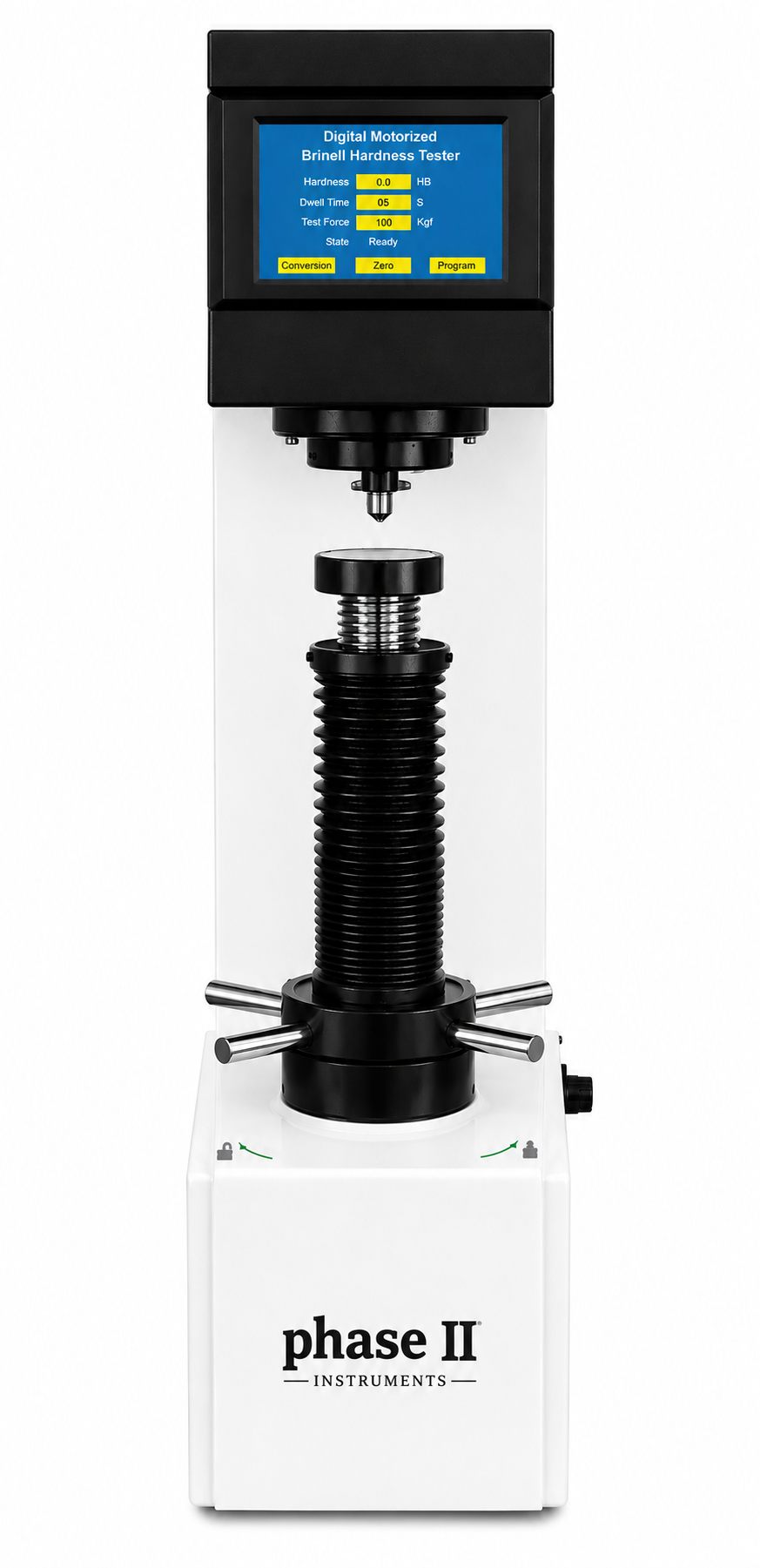

Brinell Hardness Tester Phase II - Model 900-356A
Brinell Hardness Tester Phase II - Model 900-356A
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Part #:900-356A
Quantity
Couldn't load pickup availability
Key Features
- Innovative closed-loop load-cell technology — accurate to 0.5% at all test loads; eliminates dead-weight overshoot/undershoot
- About 50% lighter than traditional dead-weight testers; less sensitive to vibration and misalignment
- Fully automatic test cycle (load / hold / unload) for excellent reproducibility
- Test-load selection and selectable dwell times via keyboard and LCD
- On-screen guidance for 0.102F/D² ratio selection by material and hardness range
- 20× optical microscope with light supply; Brinell Hardness Calculator (BHC)
- Lighted microscope and large 8" flat anvil included
Model No. 900-356A is a newly designed Brinell hardness tester for Brinell determination of metallic materials — cast iron, steel profiles, non-ferrous metals, and soft alloys — as well as hard plastics, bakelite, and other non-metallic materials. Suitable for factories, workshops, laboratories, universities, and research institutes.
Specifications
| Test Method | Closed-loop load cell Brinell - fully automatic test cycle |
|---|---|
| Test Range | 8-650 HBW |
| Total Test Force | 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000 kgf |
| Indenters | Tungsten carbide balls - 10 mm, 5 mm, 2.5 mm |
| Dwell Time | 2-99 s |
| Magnification | 20× lighted microscope |
| Min. Measuring Unit | 0.005 mm (microscope resolution) |
| Conversions | Selectable on touch screen |
| Max. Test Height | 15.7 in (400 mm) |
| Throat Depth | 6.10 in (155 mm) |
| Dimensions (L×W×H) | 550 × 210 × 780 mm |
| Power Supply | Single-phase AC 110V, 50/60 Hz, 4A |
| Weight | 300 lb (140 kg) |
| Standards | ISO 6506, ASTM E10 |
