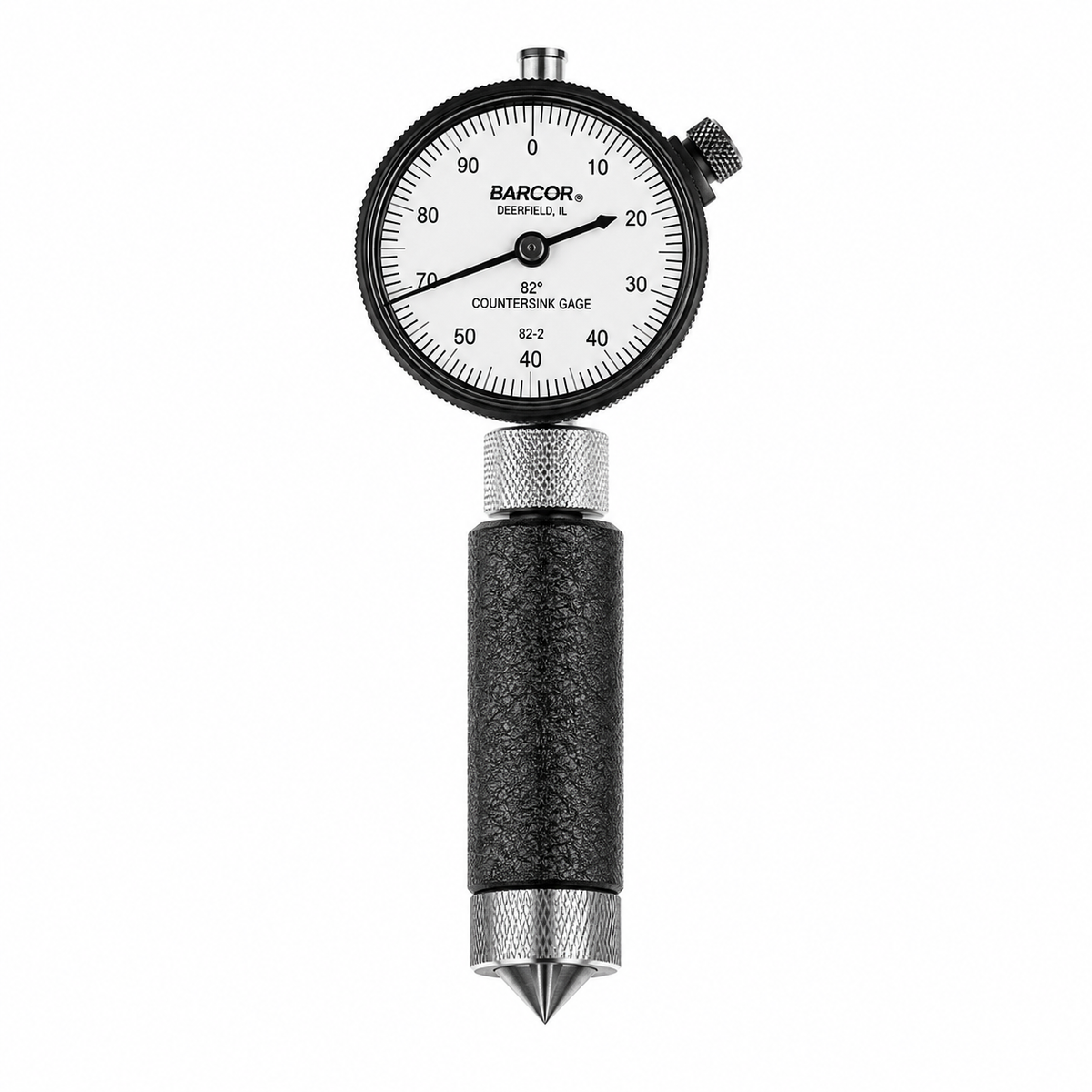

• Barcor 82 degree countersink gage with one-revolution dial reading the major diameter of a countersink to .002 inch

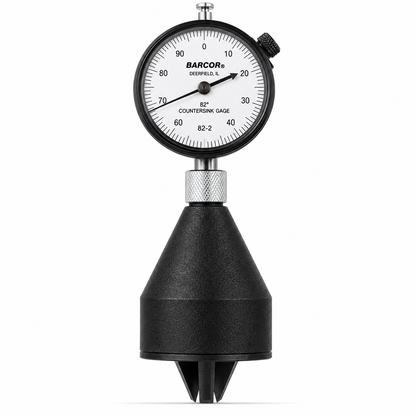

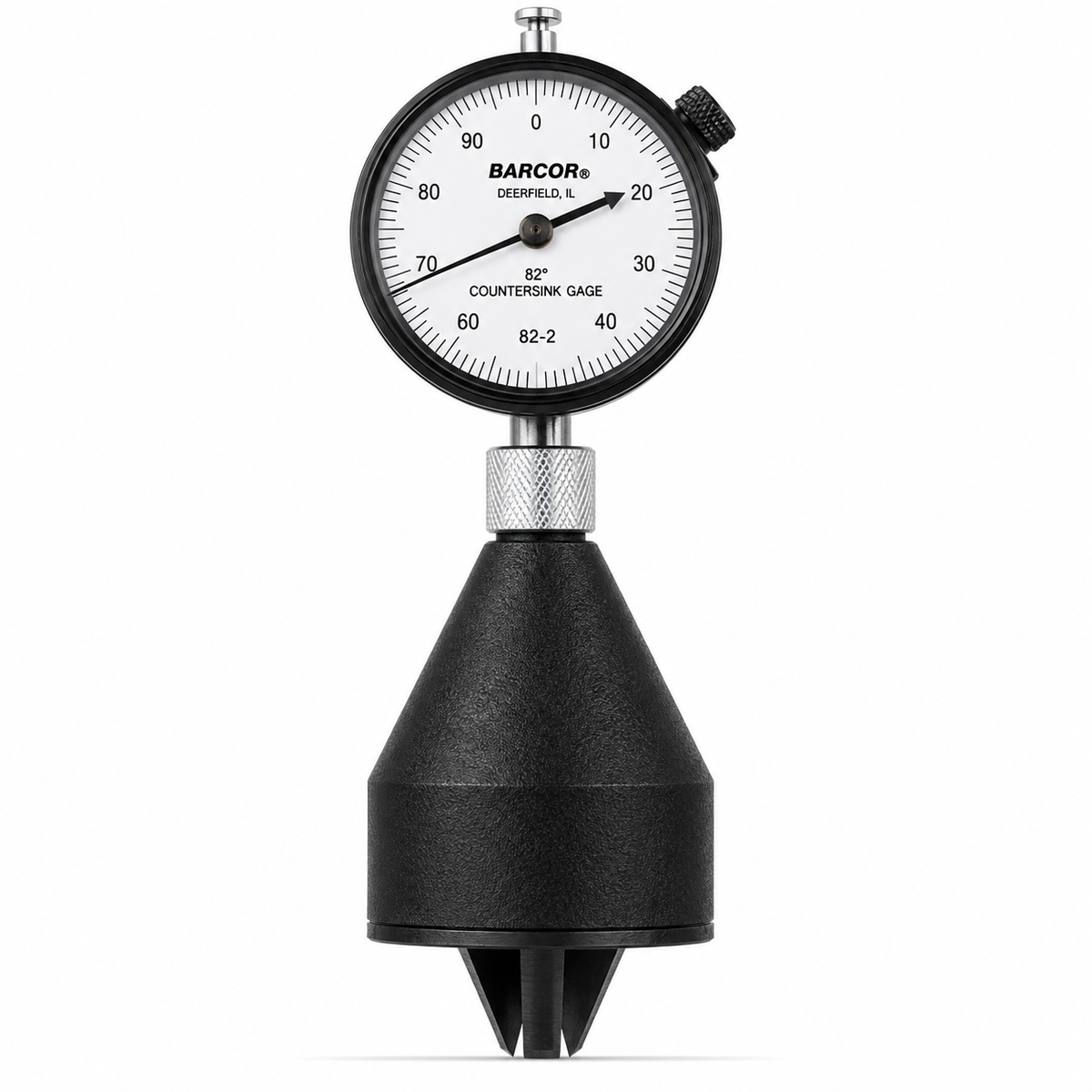

  • Barcor 82 degree countersink gage, alternate view showing the exact-angle conical gaging plunger

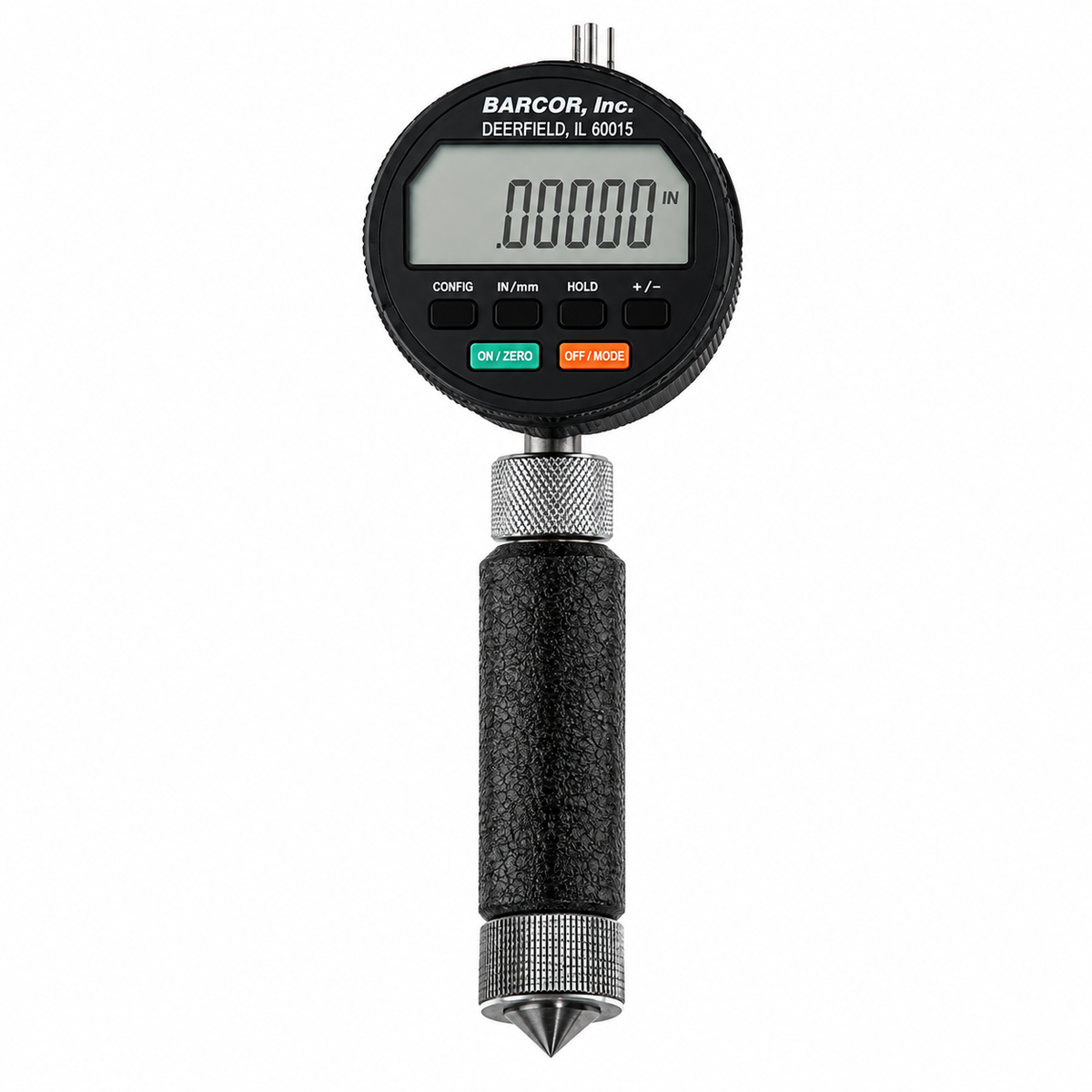

  • Barcor 82 degree countersink gage shown with its calibrated setting ring
1 3

Barcor 82° Countersink Gage — Precision Direct-Reading

Barcor 82° Countersink Gage — Precision Direct-Reading

$0.01 USD
$0.01 USD
Sale Sold out

Part #:82-0
Call for Quote

Features

  • Dedicated 82° measuring geometry
  • Direct major-diameter measurement
  • Mechanical dial indication
  • Fast production inspection
  • Economical alternative to premium countersink gages
More Details View full details

Available Products

RangeSKUPrice
.020-.170" 82-0 Call for Quote
.160-.360" 82-1 Call for Quote
.360-.560" 82-2 Call for Quote
.560-.780" 82-3 Call for Quote
.780-.980" 82-4 Call for Quote
.980-1.180" 82-5 Call for Quote

Product Details

Direct-reading precision gage designed to measure the major diameter of an 82° countersink quickly and repeatably.

Position: value-priced countersink option.

Available Ranges

Six ranges cover .020–.170", .160–.360", .360–.560", .560–.780", .780–.980" and .980–1.180". Select the range in the dropdown above.

Calibration

WESTport is a precision gaging and metrology company, not only a gage supplier. Calibration, recertification and recall-interval support are available from our own calibration department — see hard gage calibration and dimensional inspection, calibration and repair, or contact us for scope and turnaround.

Specifications

Manufacturer Barcor Gages — Deerfield, Illinois
Series 82 — Countersink Gage
Included Angle 82°
Measures Major (top) diameter of a countersink
Resolution .002" diameter increments
Accuracy ±.0005"
Available Ranges .020-.170" · .160-.360" · .360-.560" · .560-.780" · .780-.980" · .980-1.180"
Model Numbers 82-0 · 82-1 · 82-2 · 82-3 · 82-4 · 82-5
Readout Dial indicator, one revolution, direct reading
Plunger Spring-loaded, exact-angle gaging plunger cut to 82°
Setting Calibrated setting ring included
Options Electronic/SPC (-SPC) · metric (-M) · solid carbide plunger with lifetime warranty (-CF) · special angles including 15°, 30°, 60°, 78°, 90°, 100°, 110°, 120°, 127°, 130°, 160° or 0-180° · NIST certification letter
