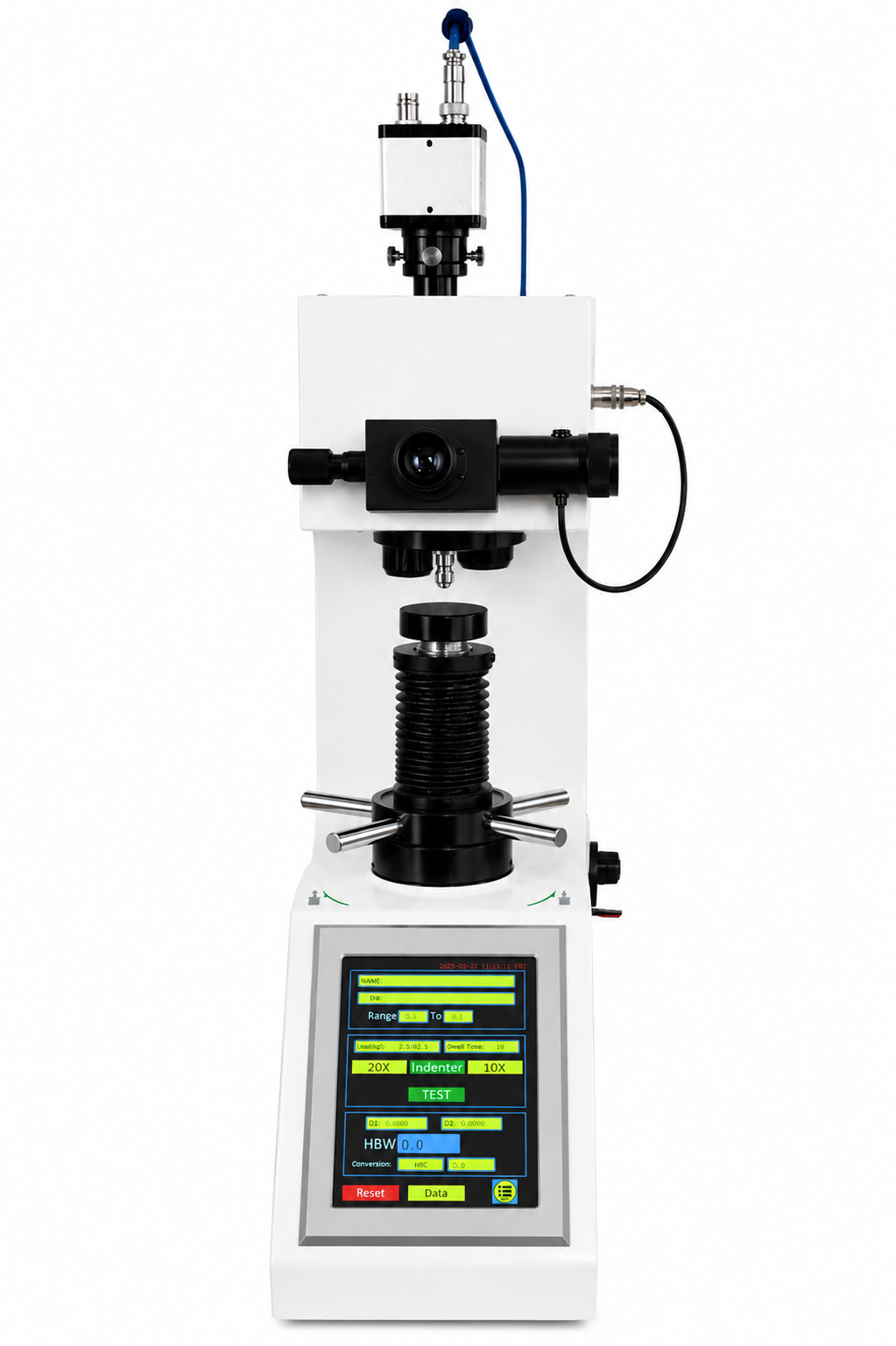

Baby Brinell Hardness Tester Phase II - Model 900-351
Baby Brinell Hardness Tester Phase II - Model 900-351
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Part #:900-351
Quantity
Couldn't load pickup availability
Key Features
- High-accuracy sensor with state-of-the-art closed-loop control
- Automatic turret positions the test point automatically
- Automatic load and unload
- Dual objectives (50× & 100×) with outer lighting for clear, precise indentation reading
- Digital-encoder objectives; LCD shows Brinell value (D1/D2) directly
- Calibrate with standard Brinell test blocks and length scale
- Automatic conversions between Rockwell and Brinell
- All data saved to USB in Excel format
Model No. 900-351 is an auto-turret digital Baby Brinell hardness tester built on a high-accuracy, closed-loop load-cell control system with dual optics (50× / 100×).
Specifications
| Test Method | Auto turret digital Brinell - load cell system, closed-loop control |
|---|---|
| Hardness Scales | HBW1/1, HBW1/2.5, HBW1/5, HBW2.5/6.25, HBW1/10, HBW2.5/15.625, HBW5/25, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW5/62.5 |
| Total Test Force | 1, 2.5, 5, 6.25, 10, 15.625, 25, 30, 31.25, 62.5 kgf |
| Resolution | 0.1 HBW |
| Dwell Time | 0-99 s |
| Magnification | Dual optics 50× / 100× |
| Min. Measuring Unit | 0.1 µm |
| Data Output | USB drive (Excel format); LCD display |
| Conversions | Automatic Rockwell ↔ Brinell |
| Max. Test Height | 180 mm |
| Throat Depth | 160 mm |
| Dimensions (L×W×H) | 590 × 200 × 680 mm |
| Power Supply | AC 110 / 220V (convertible) |
| Weight | 50 kg |
| Standards | ISO 6506, ASTM E10, GB/T231 |
