Automatic Brinell Hardness Tester Phase II - Model 900-357
Automatic Brinell Hardness Tester Phase II - Model 900-357
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Part #:900-357
Quantity
Couldn't load pickup availability
Key Features
- Innovative closed-loop load-cell technology — accurate to 0.5% at all loads; no dead-weight overshoot/undershoot
- Five work stations; supports 2 objectives and 3 indenters (10 / 5 / 2.5 mm)
- Automatic lifting, click lifting, and one-button test
- Automatic focus — no manual screw focusing
- Automatic rotating turret
- Automatic measurement with on-screen conversion to Vickers and Rockwell
- 12-inch display with real-time loading display (~8 s)

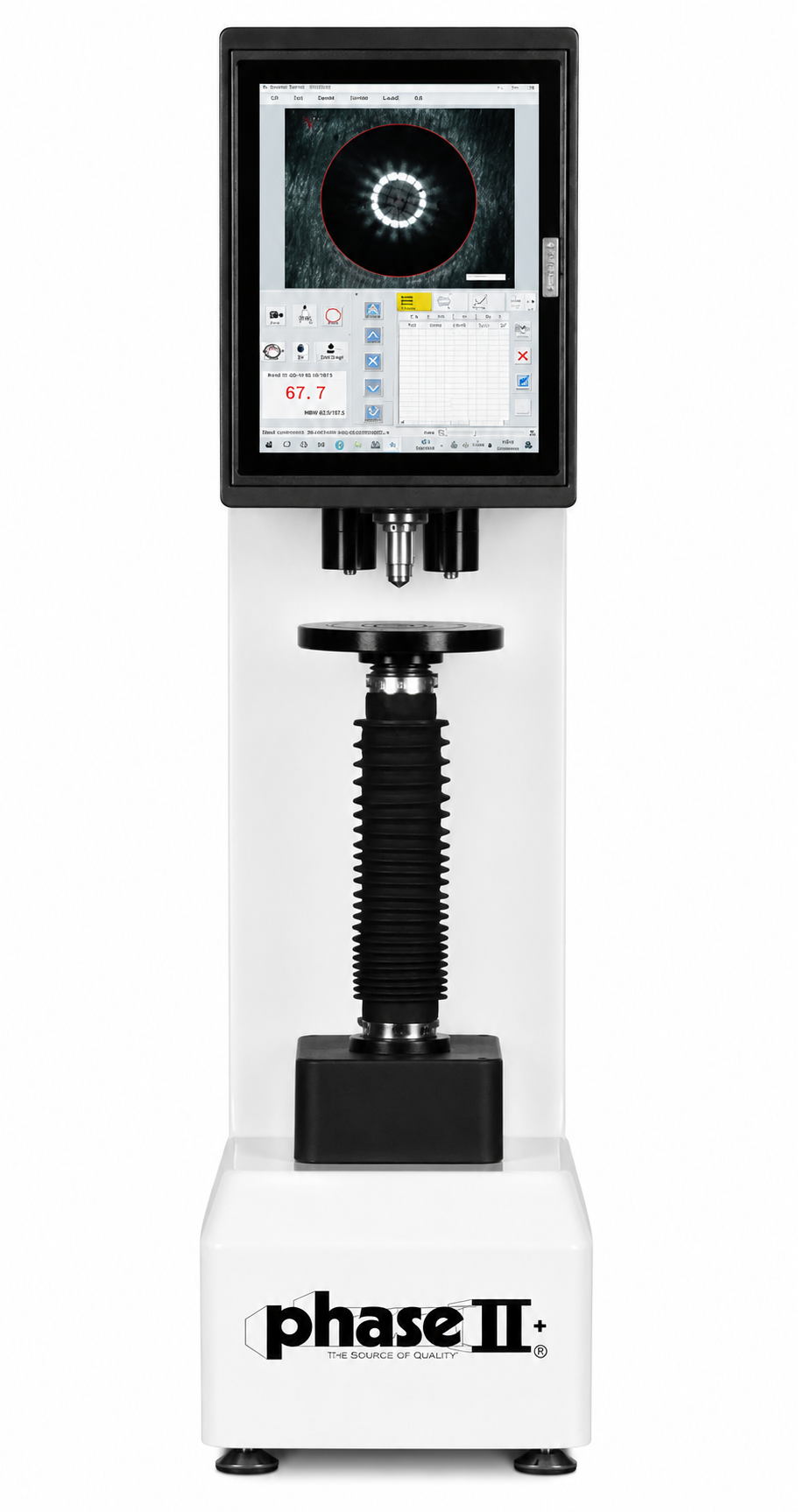

Model No. 900-357 is a fully automatic Brinell hardness tester with load-cell technology, automatic turret, auto-focus, and auto-measurement on a 12-inch display.
Specifications
| Test Method | Fully automatic Brinell - load cell, auto turret, auto-focus, auto-measure |
|---|---|
| Hardness Scales | HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250, HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000 |
| Test Range | 3.18-653 HBW |
| Total Test Force | 31.25, 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000 kgf |
| Indenters | 10 mm, 5 mm, 2.5 mm |
| Resolution | 0.1 HBW |
| Dwell Time | 1-99 s |
| Loading Method | Automatic (load / hold / unload); ~8 s loading; one-button test; auto-focus |
| Magnification | Objectives 1× / 2× (total 20× / 40×) |
| Eyepiece | 20× |
| Data Output | Optional connected printer |
| Conversions | Automatic: Vickers, Rockwell |
| Max. Test Height | 330 mm |
| Throat Depth | 170 mm |
| Dimensions (L×W×H) | 595 × 245 × 1000 mm |
| Power Supply | AC 220V ±5%, 50/60 Hz |
| Weight | 300 lb |
| Standards | EN ISO 6506, ASTM E10-08, GB/T231.2, JJG150-2005 |
