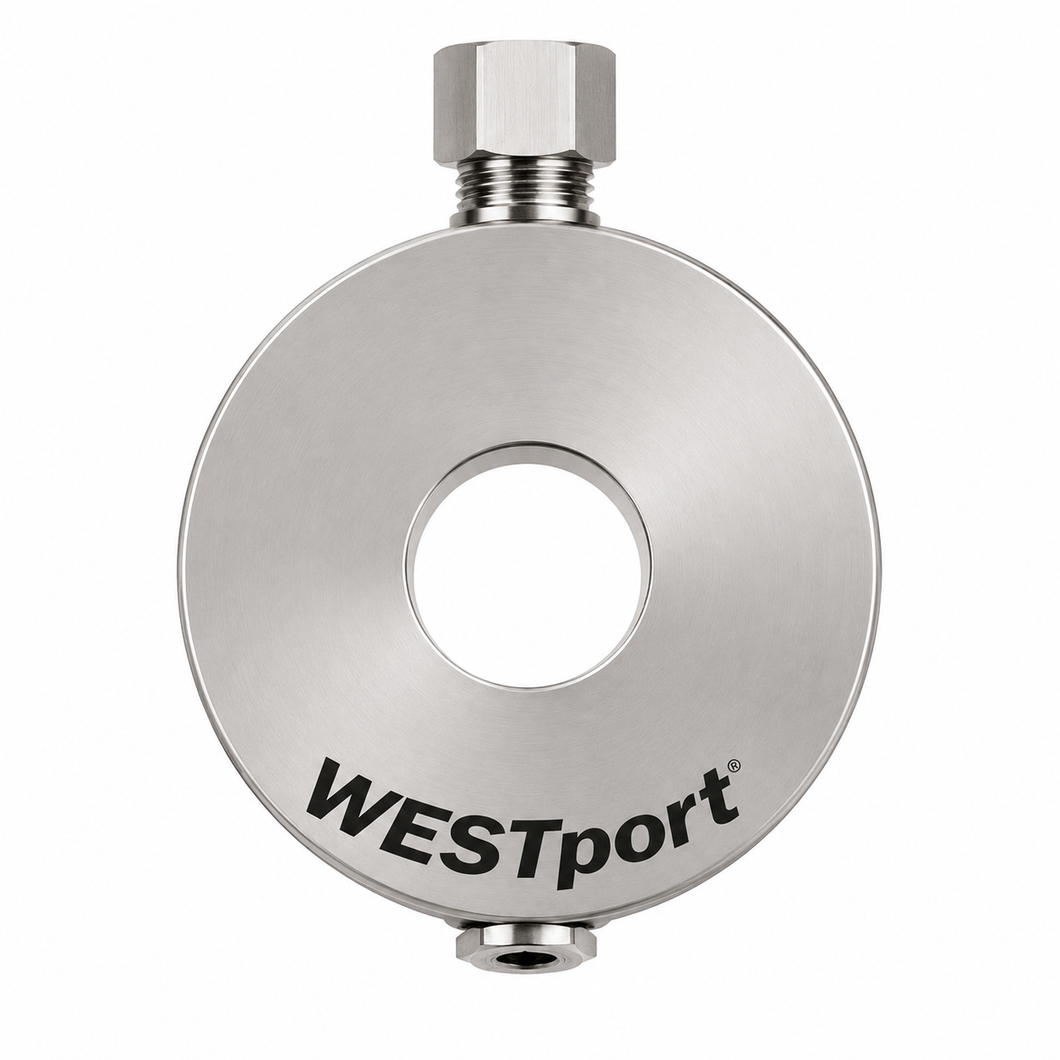

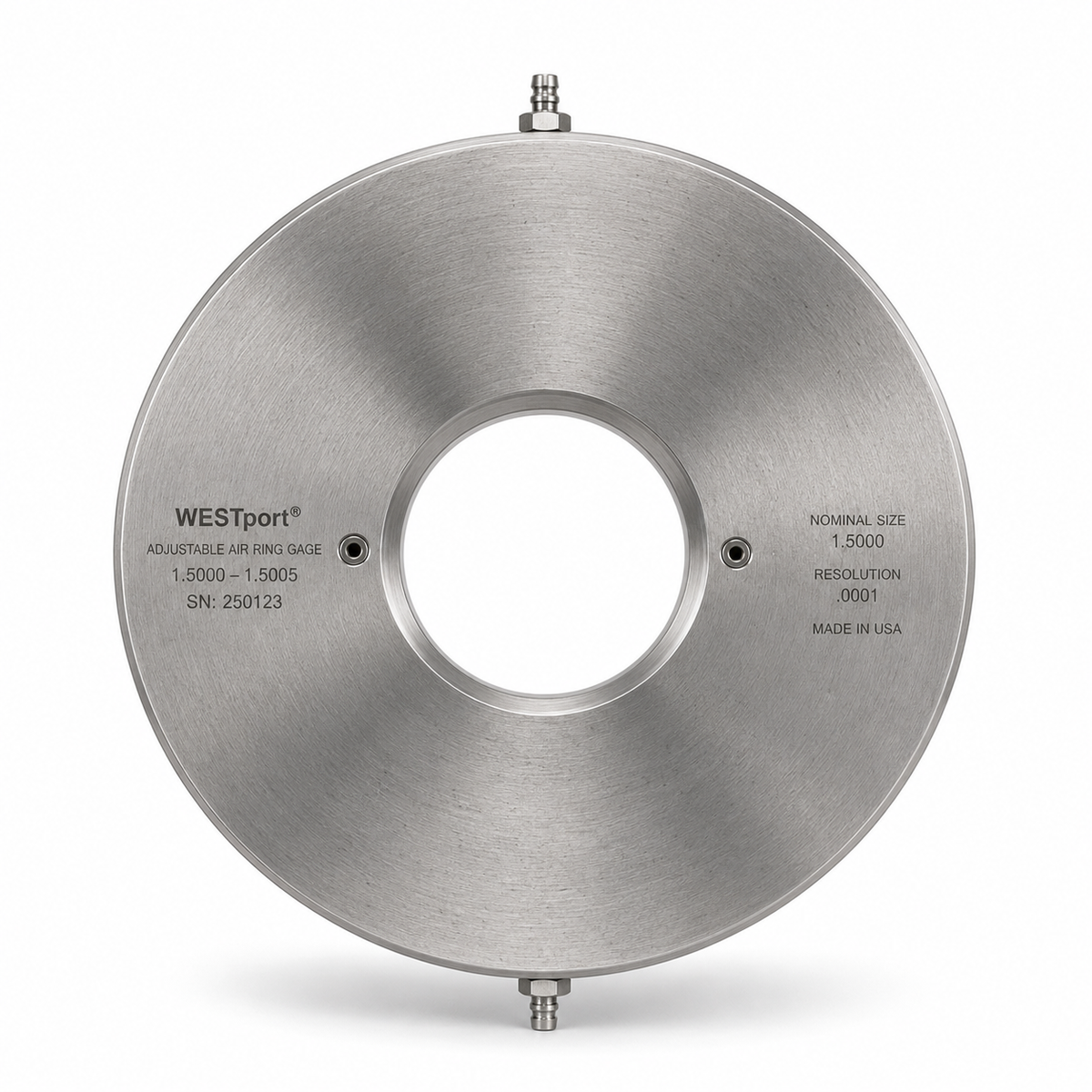

Adjustable Air Ring Gage
Adjustable Air Ring Gage
Regular price
$0.01 USD
Regular price
Sale price
$0.01 USD
Quantity
Couldn't load pickup availability
Air ring with variable jet spacing across a range, set with a master setting disc — ideal for tool-room and low-volume OD inspection.
- Adjustable across a size range
- Set with a master setting disc
- Tool-room / low-volume
Specifications
| Measurement Method | Pneumatic air gaging |
|---|---|
| Measurement Principle | Back-pressure measurement |
| What It Inspects | External diameters (O.D.) |
| Contact Type | Non-contact measurement at the air jets |
| Gage Type | Adjustable air ring gage |
| Adjustment | Adjustable across a size range |
| Jet Configuration | Variable jet spacing across a range |
| Setting Method | Set with a master setting disc |
| Primary Application | Tool-room and low-volume O.D. inspection |
| Size Range | Application-specific |
| Air Gaging System | Manufactured/configured for the specified air gaging system |
| Lead Time | Quoted per application |
