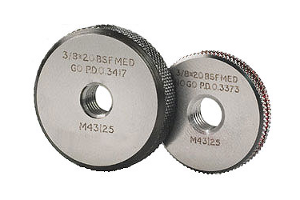

BSF Thread Ring Gages
- British Standard Fine
- Checks parallel screw threads
- Whitworth form
- 55 degree included angle
PART# | PRODUCT NAME | SIZE | TPI | SALE PRICE |
BSFTRG1 | BSF Go/NoGo Thread Ring | 3/16 | 32 | call |
BSFTRGS1 | BSF Thread Ring Gage Set | 3/16 | 32 | call |
BSFTRG2 | BSF Go/NoGo Thread Ring | 1/4 | 26 | call |
BSFTRGS2 | BSF Thread Ring Gage Set | 1/4 | 26 | call |
BSFTRG3 | BSF Go/NoGo Thread Ring | 5/16 | 22 | call |
BSFTRGS3 | BSF Thread Ring Gage Set | 5/16 | 22 | call |
BSFTRG4 | BSF Go/NoGo Thread Ring | 3/8 | 20 | call |
BSFTRGS4 | BSF Thread Ring Gage Set | 3/8 | 20 | call |
BSFTRG5 | BSF Go/NoGo Thread Ring | 7/16 | 18 | call |
BSFTRGS5 | BSF Thread Ring Gage Set | 7/16 | 18 | call |
BSFTRG6 | BSF Go/NoGo Thread Ring | 1/2 | 16 | call |
BSFTRGS6 | BSF Thread Ring Gage Set | 1/2 | 16 | call |
BSFTRG7 | BSF Go/NoGo Thread Ring | 9/16 | 16 | call |
BSFTRGS7 | BSF Thread Ring Gage Set | 9/16 | 16 | call |
BSFTRG8 | BSF Go/NoGo Thread Ring | 5/8 | 14 | call |
BSFTRGS8 | BSF Thread Ring Gage Set | 5/8 | 14 | call |
BSFTRG9 | BSF Go/NoGo Thread Ring | 3/4 | 12 | call |
BSFTRGS9 | BSF Thread Ring Gage Set | 3/4 | 12 | call |
BSFTRG10 | BSF Go/NoGo Thread Ring | 7/8 | 11 | call |
BSFTRGS10 | BSF Thread Ring Gage Set | 7/8 | 11 | call |
BSFTRG11 | BSF Go/NoGo Thread Ring | 1 | 10 | call |
BSFTRGS11 | BSF Thread Ring Gage Set | 1 | 10 | call |
BSFTRG12 | BSF Go/NoGo Thread Ring | 1-1/8 | 9 | call |
BSFTRGS12 | BSF Thread Ring Gage Set | 1-1/8 | 9 | call |
BSFTRG13 | BSF Go/NoGo Thread Ring | 1-1/4 | 9 | call |
BSFTRGS13 | BSF Thread Ring Gage Set | 1-1/4 | 9 | call |
BSFTRG14 | BSF Go/NoGo Thread Ring | 1-3/8 | 8 | call |
BSFTRGS14 | BSF Thread Ring Gage Set | 1-3/8 | 8 | call |
BSFTRG15 | BSF Go/NoGo Thread Ring | 1-1/2 | 8 | call |
BSFTRGS15 | BSF Thread Ring Gage Set | 1-1/2 | 8 | call |
BSF also is known as British Standard Fine screw thread. These gages check the parallel screw thread of Whitworth form. This form has a 55 degree included angle.
WESTport provides a complete line of BSF (British Standard Fine) Thread Ring Gages. They are available in sizes from 3/16 inch to 4 inches. Free Technical support is available from our core of engineers to assist you with any questions you may have.
WESTport provides a complete line of BSF (British Standard Fine) Thread Ring Gages. They are available in sizes from 3/16 inch to 4 inches. Free Technical support is available from our core of engineers to assist you with any questions you may have.
