ITC Comparator Gaging Segments
Please select a Product:
Quick Overview
- Simplicity: Easy to Use
- Accuracy: Provides precise measurements
- Versatility: Provides flexibility in inspection applications.
- Efficiency: Saves time and money
- Reliability: Consistent and repeatable measurements

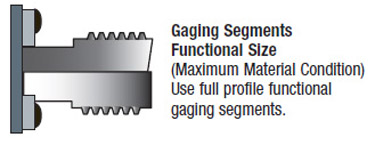

TYPE 3 Full Profile
Functional Diameter Size

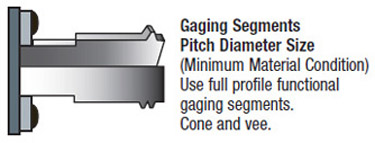

TYPE 4 (Cone & Vee Single Pitch Diameter)
Cone and Vee Type
| PART # | SIZE | TYPE | PRICE | SALE PRICE |
| 101090 | 9/16---18 | Type 4 Cone and Vee | $537.00 | |
| 100760 | 9/16---18 | Type 3 Full Profile | $497.00 | |
| 101085 | 9/16---12 | Type 4 Cone and Vee | $537.00 | |
| 100755 | 9/16---12 | Type 3 Full Profile | $497.00 | |
| 101130 | 7/8---9 | Type 4 Cone and Vee | $537.00 | |
| 100800 | 7/8---9 | Type 3 Full Profile | $497.00 | |
| 101135 | 7/8---14 | Type 4 Cone and Vee | $537.00 | |
| 100805 | 7/8---14 | Type 3 Full Profile | $497.00 | |
| 101055 | 7/16---20 | Type 4 Cone and Vee | $440.00 | |
| 100725 | 7/16---20 | Type 3 Full Profile | $400.00 | |
| 101050 | 7/16---14 | Type 4 Cone and Vee | $440.00 | |
| 100720 | 7/16---14 | Type 3 Full Profile | $400.00 | |
| 101105 | 5/8---18 | Type 4 Cone and Vee | $537.00 | |
| 100775 | 5/8---18 | Type 3 Full Profile | $497.00 | |
| 101100 | 5/8---11 | Type 4 Cone and Vee | $537.00 | |
| 100770 | 5/8---11 | Type 3 Full Profile | $497.00 | |
| 101025 | 5/16---24 | Type 4 Cone and Vee | $440.00 | |
| 100695 | 5/16---24 | Type 3 Full Profile | $400.00 | |
| 101020 | 5/16---18 | Type 4 Cone and Vee | $440.00 | |
| 100690 | 5/16---18 | Type 3 Full Profile | $400.00 | |
| 101040 | 3/8---24 | Type 4 Cone and Vee | $440.00 | |
| 100710 | 3/8---24 | Type 3 Full Profile | $400.00 | |
| 101035 | 3/8---16 | Type 4 Cone and Vee | $440.00 | |
| 100705 | 3/8---16 | Type 3 Full Profile | $400.00 | |
| 101120 | 3/4---16 | Type 4 Cone and Vee | $537.00 | |
| 100790 | 3/4---16 | Type 3 Full Profile | $497.00 | |
| 101107 | 3/4---10 | Type 4 Cone and Vee | $537.00 | |
| 100777 | 3/4---10 | Type 3 Full Profile | $497.00 | |
| 100995 | 12---28 | Type 4 Cone and Vee | $440.00 | |
| 100665 | 12---28 | Type 3 Full Profile | $400.00 | |
| 100990 | 12---24 | Type 4 Cone and Vee | $440.00 | |
| 100660 | 12---24 | Type 3 Full Profile | $400.00 | |
| 100985 | 10---32 | Type 4 Cone and Vee | $440.00 | |
| 100655 | 10---32 | Type 3 Full Profile | $400.00 | |
| 100980 | 10---24 | Type 4 Cone and Vee | $440.00 | |
| 100650 | 10---24 | Type 3 Full Profile | $400.00 | |
| 101010 | 1/4---28 | Type 4 Cone and Vee | $440.00 | |
| 100680 | 1/4---28 | Type 3 Full Profile | $400.00 | |
| 101005 | 1/4---20 | Type 4 Cone and Vee | $440.00 | |
| 100675 | 1/4---20 | Type 3 Full Profile | $400.00 | |
| 101075 | 1/2---20 | Type 4 Cone and Vee | $440.00 | |
| 100745 | 1/2---20 | Type 3 Full Profile | $400.00 | |
| 101070 | 1/2---13 | Type 4 Cone and Vee | $440.00 | |
| 100740 | 1/2---13 | Type 3 Full Profile | $400.00 | |
| 101235 | 1-3/8---6 | Type 4 Cone and Vee | $554.00 | |
| 100900 | 1-3/8---6 | Type 3 Full Profile | $514.00 | |
| 101240 | 1-3/8---12 | Type 4 Cone and Vee | $554.00 | |
| 100905 | 1-3/8---12 | Type 3 Full Profile | $514.00 | |
| 101180 | 1-1/8---7 | Type 4 Cone and Vee | $554.00 | |
| 100850 | 1-1/8---7 | Type 3 Full Profile | $514.00 | |
| 101190 | 1-1/8---12 | Type 4 Cone and Vee | $554.00 | |
| 100855 | 1-1/8---12 | Type 3 Full Profile | $514.00 | |
| 101210 | 1-1/4---7 | Type 4 Cone and Vee | $554.00 | |
| 100875 | 1-1/4---7 | Type 3 Full Profile | $514.00 | |
| 101215 | 1-1/4---12 | Type 4 Cone and Vee | $554.00 | |
| 100880 | 1-1/4---12 | Type 3 Full Profile | $514.00 | |
| 101260 | 1-1/2---6 | Type 4 Cone and Vee | $554.00 | |
| 100925 | 1-1/2---6 | Type 3 Full Profile | $514.00 | |
| 101265 | 1-1/2---12 | Type 4 Cone and Vee | $554.00 | |
| 100930 | 1-1/2---12 | Type 3 Full Profile | $514.00 | |
| 101150 | 1---8 | Type 4 Cone and Vee | $537.00 | |
| 100820 | 1---8 | Type 3 Full Profile | $497.00 | |
| 101160 | 1---14 | Type 4 Cone and Vee | $537.00 | |
| 100830 | 1---14 | Type 3 Full Profile | $497.00 | |
| 101155 | 1---12 | Type 4 Cone and Vee | $537.00 | |
| 100825 | 1---12 | Type 3 Full Profile | $497.00 |
