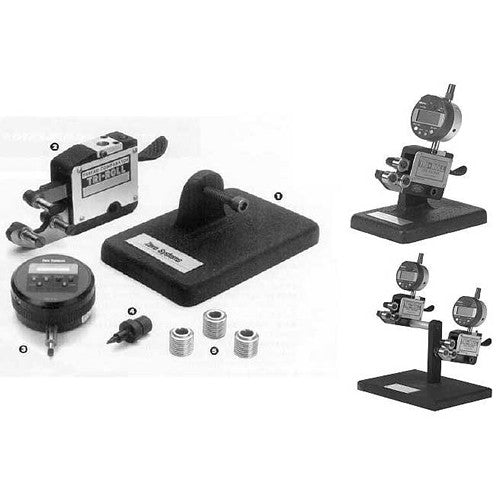

Tri Roll Comparator Gaging Rolls
Please select a Product:
Quick Overview
- System offers actual measurements of dimensional characteristics for quicker machine adjustments during thread production
- Reduces gaging time over thread plug and ring gages
- One single gage can be used for pre-plate, after-plate, class 1, 1A, 2, 2A, 3, 3A eliminating the need for multiple fixed limit thread plug and ring gages
- Ideal for user with Statistical Process Control - SPC
- Rigid construction and constant measuring pressure provides consistent and accurate readings
- Quick setting with the use of a set master
- Easy to setup
TYPE 3 (Functional Diameter Size)
Full ribbed rolls for functional diameter size for pitches coarser than 48 TPI (For 48 TPI and finer the ribs locate on alternate threads)
TYPE 4 (Cone & Vee Single Pitch Diameter)
Two ribs (Vee type) on lower rolls (No 1 and 3 One rib (Cone type) on upper roll (No 2) Flank contact limited to 0.1 pitch.
TYPE 5 “BEST WIRE” (Radius Single Element Pitch Diameter
Single ribs only with "Best Wire" size radius for any given pitch (TPI)
TYPE 6 – Plain Rolls Thread Major Diameter & Plain Cylindrical Parts
Straight Cylindrical Rolls for Checking Diameter and Out of roundness
TYPE 7 – Minor Diameter
(55 degree included angle) Two full profile Out of roundness
TYPE 8 – Lead/Flank Angle Full Profile Single Element Pitch Diameter
Outside flanks relieved. One full profile "Cone" roll (no. 2)
| #PART | SIZE | TYPE | FRAME# | PRICE | SALE PRICE |
| 351641 | 0---80 | Type 3 Full Profile | 0 | $438.00 | |
| 351642 | 1---64 | Type 3 Full Profile | 0 | $438.00 | |
| 351643 | 1---72 | Type 3 Full Profile | 0 | $438.00 | |
| 351644 | 2---56 | Type 3 Full Profile | 1 | $438.00 | |
| 351645 | 2---64 | Type 3 Full Profile | 1 | $438.00 | |
| 351646 | 3---48 | Type 3 Full Profile | 1 | $438.00 | |
| 351647 | 3---56 | Type 3 Full Profile | 1 | $438.00 | |
| 351648 | 4---40 | Type 3 Full Profile | 2 | $438.00 | |
| 351649 | 4---48 | Type 3 Full Profile | 2 | $438.00 | |
| 351650 | 5---40 | Type 3 Full Profile | 2 | $438.00 | |
| 351651 | 5---44 | Type 3 Full Profile | 2 | $438.00 | |
| 351652 | 6---32 | Type 3 Full Profile | 2 | $438.00 | |
| 351653 | 6---40 | Type 3 Full Profile | 2 | $438.00 | |
| 351654 | 8---32 | Type 3 Full Profile | 2 | $438.00 | |
| 351655 | 8---36 | Type 3 Full Profile | 2 | $438.00 | |
| 351656 | 10---24 | Type 3 Full Profile | 3 | $438.00 | |
| 351657 | 10---32 | Type 3 Full Profile | 3 | $438.00 | |
| 351658 | 12---24 | Type 3 Full Profile | 3 | $438.00 | |
| 351659 | 12---28 | Type 3 Full Profile | 3 | $438.00 | |
| 351660 | 1/4---20 | Type 3 Full Profile | 3 | $438.00 | |
| 351661 | 1/4---28 | Type 3 Full Profile | 3 | $438.00 | |
| 351662 | 5/16---18 | Type 3 Full Profile | 3 | $438.00 | |
| 351663 | 5/16---24 | Type 3 Full Profile | 3 | $438.00 | |
| 351664 | 3/8---16 | Type 3 Full Profile | 4 | $438.00 | |
| 351665 | 3/8---24 | Type 3 Full Profile | 4 | $438.00 | |
| 351666 | 7/16---14 | Type 3 Full Profile | 4 | $438.00 | |
| 351667 | 7/16---20 | Type 3 Full Profile | 4 | $438.00 | |
| 351668 | 1/2---13 | Type 3 Full Profile | 4 | $438.00 | |
| 351669 | 1/2---20 | Type 3 Full Profile | 4 | $438.00 | |
| 351670 | 9/16---12 | Type 3 Full Profile | 5 | $438.00 | |
| 351671 | 9/16---18 | Type 3 Full Profile | 5 | $438.00 | |
| 351672 | 5/8---11 | Type 3 Full Profile | 5 | $438.00 | |
| 351673 | 5/8---18 | Type 3 Full Profile | 5 | $438.00 | |
| 351674 | 3/4---10 | Type 3 Full Profile | 5 | $438.00 | |
| 351675 | 3/4---16 | Type 3 Full Profile | 5 | $438.00 | |
| 351676 | 7/8---9 | Type 3 Full Profile | 6 | $450.00 | |
| 351677 | 7/8---14 | Type 3 Full Profile | 6 | $450.00 | |
| 351679 | 1---2 | Type 3 Full Profile | 6 | $450.00 | |
| 351680 | 1---4 | Type 3 Full Profile | 6 | $450.00 | |
| 351678 | 1---8 | Type 3 Full Profile | 6 | $450.00 | |
| 351681 | 1-1/8---7 | Type 3 Full Profile | 6 | $450.00 | |
| 351682 | 1-1/8---12 | Type 3 Full Profile | 6 | $450.00 | |
| 351683 | 1-1/4---7 | Type 3 Full Profile | 7 | $450.00 | |
| 351684 | 1-1/4---12 | Type 3 Full Profile | 7 | $450.00 | |
| 351687 | 1-1/2---6 | Type 3 Full Profile | 7 | $450.00 | |
| 351688 | 1-1/2---12 | Type 3 Full Profile | 7 | $450.00 | |
| 351685 | 1-3/8---6 | Type 3 Full Profile | 7 | $450.00 | |
| 351686 | 1-3/8---12 | Type 3 Full Profile | 7 | $450.00 | |
| 357008 | 4---40 | Type 4 Cone and Vee | 2 | $380.00 | |
| 357010 | 5---40 | Type 4 Cone and Vee | 2 | $380.00 | |
| 357011 | 5---44 | Type 4 Cone and Vee | 2 | $380.00 | |
| 357012 | 6---32 | Type 4 Cone and Vee | 2 | $380.00 | |
| 357013 | 6---40- | Type 4 Cone and Vee | 2 | $380.00 | |
| 357014 | 8---32 | Type 4 Cone and Vee | 2 | $380.00 | |
| 357015 | 8---36 | Type 4 Cone and Vee | 2 | $380.00 | |
| 357016 | 10---24 | Type 4 Cone and Vee | 3 | $380.00 | |
| 357017 | 10---32 | Type 4 Cone and Vee | 3 | $380.00 | |
| 357018 | 12---24 | Type 4 Cone and Vee | 3 | $380.00 | |
| 357019 | 12---28 | Type 4 Cone and Vee | 3 | $380.00 | |
| 357020 | 1/4---20 | Type 4 Cone and Vee | 3 | $380.00 | |
| 357021 | 1/4---28 | Type 4 Cone and Vee | 3 | $380.00 | |
| 357022 | 5/16---18 | Type 4 Cone and Vee | 3 | $380.00 | |
| 357023 | 5/16---24 | Type 4 Cone and Vee | 3 | $380.00 | |
| 357024 | 3/8---16 | Type 4 Cone and Vee | 4 | $380.00 | |
| 357025 | 3/8---24 | Type 4 Cone and Vee | 4 | $380.00 | |
| 357026 | 7/16---14 | Type 4 Cone and Vee | 4 | $380.00 | |
| 357027 | 7/16---20 | Type 4 Cone and Vee | 4 | $380.00 | |
| 357028 | 1/2---13 | Type 4 Cone and Vee | 4 | $380.00 | |
| 357029 | 1/2---20 | Type 4 Cone and Vee | 4 | $380.00 | |
| 357030 | 9/16---12 | Type 4 Cone and Vee | 5 | $380.00 | |
| 357031 | 9/16---28 | Type 4 Cone and Vee | 5 | $380.00 | |
| 357032 | 5/8---11 | Type 4 Cone and Vee | 5 | $380.00 | |
| 357033 | 5/8---18 | Type 4 Cone and Vee | 5 | $380.00 | |
| 357034 | 3/4---10 | Type 4 Cone and Vee | 5 | $380.00 | |
| 357035 | 3/4---16 | Type 4 Cone and Vee | 5 | $380.00 | |
| 357036 | 7/8---9 | Type 4 Cone and Vee | 6 | $429.00 | |
| 357037 | 7/8---14 | Type 4 Cone and Vee | 6 | $429.00 | |
| 357039 | 1---2 | Type 4 Cone and Vee | 6 | $429.00 | |
| 357038 | 1---8 | Type 4 Cone and Vee | 6 | $429.00 | |
| 357040 | 1---14 | Type 4 Cone and Vee | 6 | $429.00 | |
| 357041 | 1-1/8---7 | Type 4 Cone and Vee | 6 | $429.00 | |
| 357042 | 1-1/8---12 | Type 4 Cone and Vee | 6 | $429.00 | |
| 357043 | 1-1/4---7 | Type 4 Cone and Vee | 7 | $429.00 | |
| 357044 | 1-1/4---12 | Type 4 Cone and Vee | 7 | $429.00 | |
| 357045 | 1-3/8---6 | Type 4 Cone and Vee | 7 | $429.00 | |
| 357046 | 1-3/8---12 | Type 4 Cone and Vee | 7 | $429.00 | |
| 357047 | 1-1/2---6 | Type 4 Cone and Vee | 7 | $429.00 | |
| 357048 | 1-1/2---12 | Type 4 Cone and Vee | 7 | $429.00 | |
| 351689 | 0---80 | Type 5 Best Wire Size | 0 | $263.00 | |
| 351691 | 1---72 | Type 5 Best Wire Size | 0 | $263.00 | |
| 351692 | 2---56 | Type 5 Best Wire Size | 1 | $263.00 | |
| 351693 | 2---64 | Type 5 Best Wire Size | 1 | $263.00 | |
| 351694 | 3---48 | Type 5 Best Wire Size | 1 | $263.00 | |
| 351695 | 3---56 | Type 5 Best Wire Size | 1 | $263.00 | |
| 351696 | 4---40 | Type 5 Best Wire Size | 2 | $263.00 | |
| 351697 | 4---48 | Type 5 Best Wire Size | 2 | $263.00 | |
| 351698 | 5---40 | Type 5 Best Wire Size | 2 | $263.00 | |
| 351699 | 5---44 | Type 5 Best Wire Size | 2 | $263.00 | |
| 351700 | 6---32 | Type 5 Best Wire Size | 2 | $263.00 | |
| 351701 | 6---40 | Type 5 Best Wire Size | 2 | $263.00 | |
| 351702 | 8---32 | Type 5 Best Wire Size | 2 | $263.00 | |
| 351703 | 8---36 | Type 5 Best Wire Size | 2 | $263.00 | |
| 351704 | 10---24 | Type 5 Best Wire Size | 3 | $263.00 | |
| 351705 | 10---32 | Type 5 Best Wire Size | 3 | $263.00 | |
| 351706 | 12---24 | Type 5 Best Wire Size | 3 | $263.00 | |
| 351707 | 12---28 | Type 5 Best Wire Size | 3 | $263.00 | |
| 351708 | 1/4---20 | Type 5 Best Wire Size | 3 | $263.00 | |
| 351709 | 1/4---28 | Type 5 Best Wire Size | 3 | $263.00 | |
| 351710 | 5/16---18 | Type 5 Best Wire Size | 3 | $263.00 | |
| 351711 | 5/16---24 | Type 5 Best Wire Size | 3 | $263.00 | |
| 351712 | 3/8---16 | Type 5 Best Wire Size | 4 | $263.00 | |
| 351713 | 3/8---24 | Type 5 Best Wire Size | 4 | $263.00 | |
| 351714 | 7/16---14 | Type 5 Best Wire Size | 4 | $263.00 | |
| 351715 | 7/16---20 | Type 5 Best Wire Size | 4 | $263.00 | |
| 351716 | 1/2---13 | Type 5 Best Wire Size | 4 | $263.00 | |
| 351717 | 1/2---20 | Type 5 Best Wire Size | 4 | $263.00 | |
| 351718 | 9/16---12 | Type 5 Best Wire Size | 5 | $263.00 | |
| 351719 | 9/16---18 | Type 5 Best Wire Size | 5 | $263.00 | |
| 351720 | 5/8---11 | Type 5 Best Wire Size | 5 | $263.00 | |
| 351721 | 5/8---18 | Type 5 Best Wire Size | 5 | $263.00 | |
| 351722 | 3/4---10 | Type 5 Best Wire Size | 5 | $263.00 | |
| 351723 | 3/4---16 | Type 5 Best Wire Size | 5 | $263.00 | |
| 351724 | 7/8---9 | Type 5 Best Wire Size | 6 | $299.00 | |
| 351725 | 7/8---14 | Type 5 Best Wire Size | 6 | $299.00 | |
| 351726 | 1---8 | Type 5 Best Wire Size | 6 | $299.00 | |
| 351727 | 1---2 | Type 5 Best Wire Size | 6 | $299.00 | |
| 351728 | 1---4 | Type 5 Best Wire Size | 6 | $299.00 | |
| 351729 | 1-1/8---7 | Type 5 Best Wire Size | 6 | $299.00 | |
| 351730 | 1-1/8---12 | Type 5 Best Wire Size | 6 | $299.00 | |
| 351731 | 1-1/4---7 | Type 5 Best Wire Size | 7 | $299.00 | |
| 351732 | 1-1/4---12 | Type 5 Best Wire Size | 7 | $299.00 | |
| 351733 | 1-3/8---6 | Type 5 Best Wire Size | 7 | $299.00 | |
| 351734 | 1-3/8---12 | Type 5 Best Wire Size | 7 | $299.00 | |
| 351735 | 1-1/2---6 | Type 5 Best Wire Size | 7 | $299.00 | |
| 351736 | 1-1/2---12 | Type 5 Best Wire Size | 7 | $299.00 | |
| 351959 | M2-x-.4 | Type 3 Full Profile | 1 | $438.00 | |
| 352276 | M2.5-x-.45 | Type 3 Full Profile | 1 | $438.00 | |
| 351943 | M3-x-.5 | Type 3 Full Profile | 2 | $438.00 | |
| 352327 | M3.5-x-.6 | Type 3 Full Profile | 2 | $438.00 | |
| 351944 | M4-x-.7 | Type 3 Full Profile | 2 | $438.00 | |
| 351945 | M5-x-.8 | Type 3 Full Profile | 3 | $438.00 | |
| 351946 | M6-x-1 | Type 3 Full Profile | 3 | $438.00 | |
| 351949 | M8-x-1.25 | Type 3 Full Profile | 4 | $438.00 | |
| 351950 | M10-x-1.25 | Type 3 Full Profile | 4 | $438.00 | |
| 351951 | M10-x-1.5 | Type 3 Full Profile | 4 | $438.00 | |
| 352328 | M12-x-1.25 | Type 3 Full Profile | 4 | $438.00 | |
| 351953 | M12-x-1.75 | Type 3 Full Profile | 4 | $438.00 | |
| 351954 | M14-x-1.5 | Type 3 Full Profile | 5 | $438.00 | |
| 351955 | M14-x-2 | Type 3 Full Profile | 5 | $438.00 | |
| 352109 | M16-x-2 | Type 3 Full Profile | 5 | $438.00 | |
| 352329 | M20-x-1.5 | Type 3 Full Profile | 6 | $452.00 | |
| 352331 | M22-x-1.5 | Type 3 Full Profile | 6 | $452.00 | |
| 351957 | M24-x-3 | Type 3 Full Profile | 6 | $452.00 | |
| 357105 | M3.5-x-.6 | Type 4 Cone and Vee | 2 | $379.00 | |
| 357106 | M4-x-.7 | Type 4 Cone and Vee | 2 | $379.00 | |
| 357107 | M5-x-.8 | Type 4 Cone and Vee | 3 | $379.00 | |
| 357108 | M6-x-1 | Type 4 Cone and Vee | 3 | $379.00 | |
| 357109 | M8-x-1.25 | Type 4 Cone and Vee | 4 | $379.00 | |
| 357111 | M10-x-1.25 | Type 4 Cone and Vee | 4 | $379.00 | |
| 357110 | M10-x-1.5 | Type 4 Cone and Vee | 4 | $379.00 | |
| 357113 | M12-x-1.25 | Type 4 Cone and Vee | 4 | $379.00 | |
| 357112 | M12-x-1.75 | Type 4 Cone and Vee | 4 | $379.00 | |
| 357115 | M14-x-1.5 | Type 4 Cone and Vee | 5 | $379.00 | |
| 357114 | M14-x-2 | Type 4 Cone and Vee | 5 | $379.00 | |
| 357116 | M16-x-2 | Type 4 Cone and Vee | 5 | $379.00 | |
| 357117 | M20-x-1.5 | Type 4 Cone and Vee | 6 | $429.00 | |
| 357118 | M22-x-1.5 | Type 4 Cone and Vee | 6 | $429.00 | |
| 357119 | M24-x-3 | Type 4 Cone and Vee | 6 | $429.00 | |
| 352274 | M1.6-x-.35 | Type 5 Best Wire Size | 0 | $268.00 | |
| 351942 | M2-x-.4 | Type 5 Best Wire Size | 1 | $268.00 | |
| 352012 | M2.5-x-.45 | Type 5 Best Wire Size | 1 | $268.00 | |
| 352014 | M3-x-.5 | Type 5 Best Wire Size | 2 | $268.00 | |
| 352246 | M3.5-x-.6 | Type 5 Best Wire Size | 2 | $268.00 | |
| 352015 | M4-x-.7 | Type 5 Best Wire Size | 2 | $268.00 | |
| 352016 | M5-x-.8 | Type 5 Best Wire Size | 3 | $268.00 | |
| 352017 | M6-x-1 | Type 5 Best Wire Size | 3 | $268.00 | |
| 352020 | M8-x-1.25 | Type 5 Best Wire Size | 4 | $268.00 | |
| 352023 | M10-x-1.25 | Type 5 Best Wire Size | 4 | $268.00 | |
| 352024 | M10-x-1.5 | Type 5 Best Wire Size | 4 | $268.00 | |
| 352026 | M12-x-1.25 | Type 5 Best Wire Size | 4 | $268.00 | |
| 352028 | M12-x-1.75 | Type 5 Best Wire Size | 4 | $268.00 | |
| 352066 | M14-x-1.5 | Type 5 Best Wire Size | 5 | $268.00 | |
| 352106 | M14-x-2 | Type 5 Best Wire Size | 5 | $268.00 | |
| 352107 | M16-x-2 | Type 5 Best Wire Size | 5 | $268.00 | |
| 352330 | M20-x-1.5 | Type 5 Best Wire Size | 6 | $307.00 | |
| 352332 | M22-x-1.5 | Type 5 Best Wire Size | 6 | $307.00 | |
| 352069 | M24-x-3 | Type 5 Best Wire Size | 6 | $307.00 |
