Static and Impact Test Kit

Static and Impact Test Kit

Static and Impact Test Kit

Regular price $2,110.00 $2,050.00 Sale

Static and Impact Test Kit

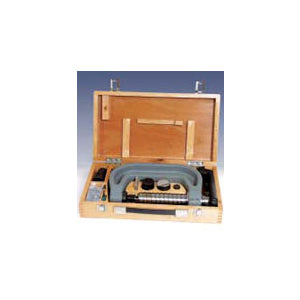

The Pin Brinell Static and Impact Test Kit - Useful for testing smaller parts, smaller diameter rounds, and unsupported parts. *Tests parts up to 6" in diameter. *Accuracy to +/- 1% of load applied . Complete with C clamping vise for static test including large flat, small flat and vee anvils, indenter holder, rubber indenter boot, regular indenter (for HB100-450), test block (nominal HB200), 7X Brinell scope, pin ejector, Allen wrench, 250 calibrated shear pins with chart, hardness conversion chart and custom fitted carry case. Additional parts for impact testing: impact cylinder and handle for impact cylinder.

Features:
Less operator influence on test results- Onlyone optical measurement needs to be made. Consistent load regardless ofoperator technique. Can be as accurate as bench brinell testing
Easier to use- Each pin works in the entirehardness range HB100-730. Easier to test in confined areas. Only oneimpression needs to be measured. The Impact model is smaller and easier touse on large parts. The Static C-clamp model is easier to use on small orthin parts
Test impressions can be re-measured without retesting
Faster operation- One impression - one measurement.No additional computation required
Portable and inexpensive to use- So portablethe Impact model fits in your pocket. Costs much less to purchase. Loweroperation cost
Accuracy equivalent to bench model Brinell testers
Impact model requires no clamping
Fewer moving parts
Small and lightweight
No messy oil
No need for recalibration

partWCPST
