Reversible Trilocks - 2 1/4-16 - Steel - X - DOUBLE END

Reversible Trilocks - 2 1/4-16 - Steel - X - DOUBLE END

Reversible Trilocks - 2 1/4-16 - Steel - X - DOUBLE END

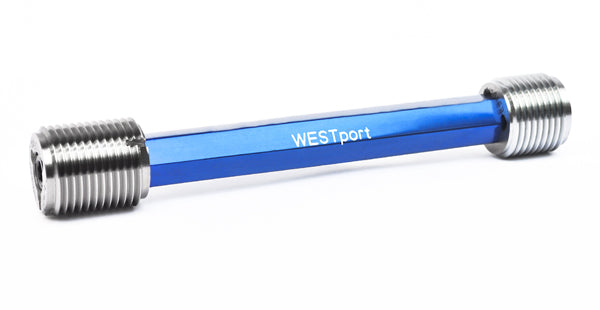

Reversible Trilocks Double End - Class X Tolerance
Part#RTLSDE-10
classX
memberDOUBLE-END
size 2-1/4-16
materialSteel
Email Express Quote


  • Checks the size of internal threads to ensure the threads are within its designed tolerance limits
  • Reversible gage members provides two gages for the price of one
  • Best suited for large size thread plug gages, 1 1/2 inches and larger
  • Class X Tolerance
  • GO and/or NO GO plug members
  • ASME/ANSI B1. 2 compliant
  • Chip groove is provided on the Go member for ease of identification and clearing obstructions
  • Precision hand lapped to provide optimum finish and superior accuracy
  • Manufactured to the high end of the ANSI specifications to provide maximum wearability
  • Final inspection of gages is completed in an environmentally controlled ISO 17025 laboratory
  • Available in steel and chrome
  • Free NIST certificate of accuracy

partRTLSDE-10
classX
memberDOUBLE-END
size 2-1/4-16
materialSteel
