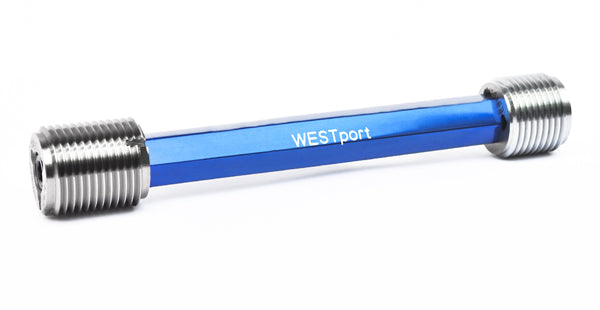

Reversible Trilocks - 2 1/2-12 - Chrome - X - DOUBLE END
- Checks the size of internal threads to ensure the threads are within its designed tolerance limits
- Reversible gage members provides two gages for the price of one
- Best suited for large size thread plug gages, 1 1/2 inches and larger
- Class X Tolerance
- GO and/or NO GO plug members
- ASME/ANSI B1. 2 compliant
- Chip groove is provided on the Go member for ease of identification and clearing obstructions
- Precision hand lapped to provide optimum finish and superior accuracy
- Manufactured to the high end of the ANSI specifications to provide maximum wearability
- Final inspection of gages is completed in an environmentally controlled ISO 17025 laboratory
- Available in steel and chrome
- Free NIST certificate of accuracy
| part | RTLCDE-11 |
| class | X |
| member | DOUBLE-END |
| size | 2-1/2-12 |
| material | Chrome |
