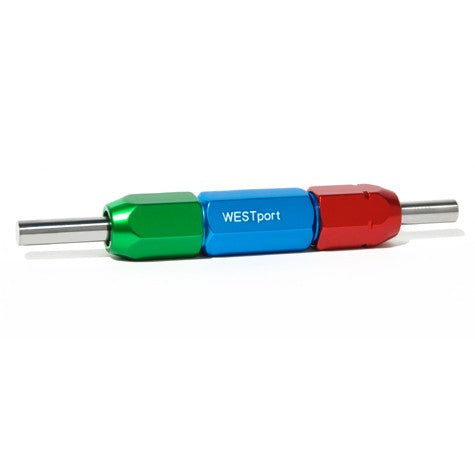

Reversible Thread Plug Gage - Inch - 1/4-32 - Inch - Steel - DOUBLE END - X
Reversible thread plug gages are used to check the size of internal threads to ensure the threads are within its designed tolerance limits. The reversible plug gage features that when one end becomes worn or damaged, the gage member can be reversed providing exceptional value, essentially two gage members for the price of one.
- Checks the size of internal threads to ensure the threads are within its designed tolerance limits
- Reversible gage members provides two gages for the price of one
- Class X Tolerance
- Class 2B or 3B for inch
- Class 6H for metric
- GO and/or NO GO plug members
- ASME/ANSI B1. 2 and ANSI/ASME B1.16M compliant
- Precision hand lapped to provide superior accuracy and optimum finish
- Manufactured to the high end of the ANSI specifications to provide maximum wearability
- Final inspection of gages is completed in an environmentally controlled ISO 17025 laboratory
- Available in steel and chrome
- Free NIST certificate of accuracy
| part | RTSDE-23 |
| member | DOUBLE-END |
| size | 1/4-32 |
| Measure | Inch |
| material | Steel |
| Tolerance | X |
