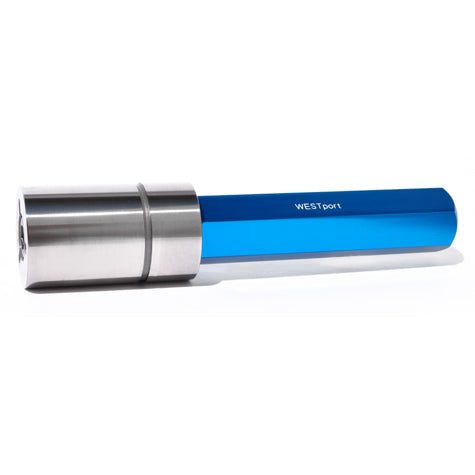

Progressive Trilock Plug Gages - Metric - Chrome - Y - 89.15 - 101.85 - GO / NOGO - 79.4 - GO - 54.0 ; NOGO - 22.2
- Checks the GO and NOGO inspection of a hole with one insertion of the gage
- Single end gage having GO and NO GO members stepped on a single gage
- Parts can be inspected quickly with a progressive plug gage
- Progressive trilock plug gages are available in Class XX, X, Y and Z
- Precision hand lapped to a 3 micro inch finish to provide superior accuracy and optimum finish
- Manufactured to the high end of the ANSI specifications to provide maximum wearability
- Final inspection of gages is completed in an environmentally controlled ISO 17025 laboratory
- Designed for size ranges from 1.510" to 4.510" (38.35 mm - 114.55 mm)
- Progressive trilock plug gages are available in steel and chrome
- Free NIST certificate of accuracy
| part | PTRCM-Y05 |
| class | Y |
| member | GO-/-NOGO |
| Size Range | 89.151 - 101.8 |
| Measure | Metric |
| material | Chrome |
| ADG length | 79.4 |
| member Size | GO - 54.0 ; NOGO - 22. |
