Progressive Trilock Plug Gages - Metric - Chrome - XX - 101.85 - 114.55 - GO / NOGO - 79.4 - GO - 54.0 ; NOGO - 22.2

Progressive Trilock Plug Gages - Metric - Chrome - XX - 101.85 - 114.55 - GO / NOGO - 79.4 - GO - 54.0 ; NOGO - 22.2

Progressive Trilock Plug Gages - Metric - Chrome - XX - 101.85 - 114.55 - GO / NOGO - 79.4 - GO - 54.0 ; NOGO - 22.2

Regular price $718.00 $650.00 Sale

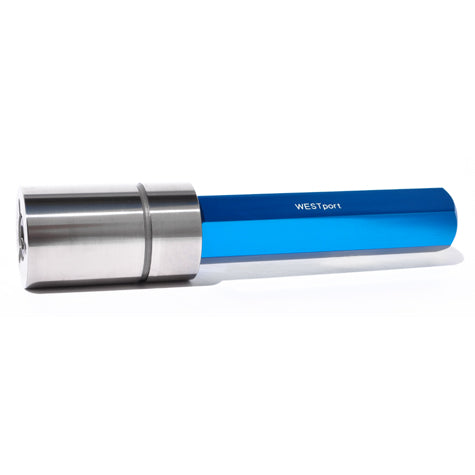

Progressive Trilock Plug Gages
Part#PTRCM-XX06
classXX
memberGO-/-NOGO
Size Range101.851 - 114.
MeasureMetric
materialChrome
ADG length79.4
member SizeGO - 54.0 ; NOGO - 22.
Email Express Quote

*Please choose GO or NOGO Member


  • Checks the GO and NOGO inspection of a hole with one insertion of the gage
  • Single end gage having GO and NO GO members stepped on a single gage
  • Parts can be inspected quickly with a progressive plug gage
  • Progressive trilock plug gages are available in Class XX, X, Y and Z
  • Precision hand lapped to a 3 micro inch finish to provide superior accuracy and optimum finish
  • Manufactured to the high end of the ANSI specifications to provide maximum wearability
  • Final inspection of gages is completed in an environmentally controlled ISO 17025 laboratory
  • Designed for size ranges from 1.510" to 4.510" (38.35 mm - 114.55 mm)
  • Progressive trilock plug gages are available in steel and chrome
  • Free NIST certificate of accuracy

partPTRCM-XX06
classXX
memberGO-/-NOGO
Size Range101.851 - 114.
MeasureMetric
materialChrome
ADG length79.4
member SizeGO - 54.0 ; NOGO - 22.
