Progressive Trilock Plug Gages - Inch - Chrome - XX - 3.510-4.010 - GO / NOGO - 3 1/8 - GO - 2 1/8 ; NOGO - 7/8

Progressive Trilock Plug Gages - Inch - Chrome - XX - 3.510-4.010 - GO / NOGO - 3 1/8 - GO - 2 1/8 ; NOGO - 7/8

Progressive Trilock Plug Gages - Inch - Chrome - XX - 3.510-4.010 - GO / NOGO - 3 1/8 - GO - 2 1/8 ; NOGO - 7/8

Regular price $631.00 $571.00 Sale

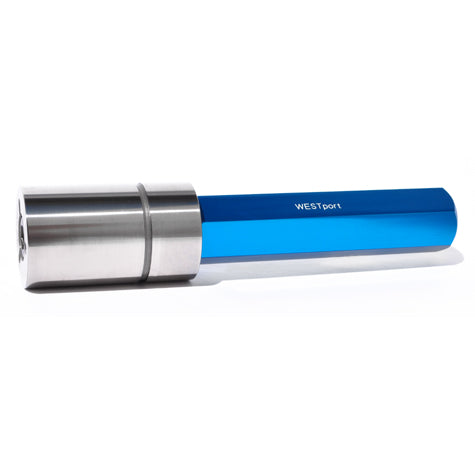

Progressive Trilock Plug Gages
Part#PTRCI-XX05
classXX
memberGO-/-NOGO
Size Range3.5101-4.010
MeasureInch
materialChrome
ADG length3-1/8
member Size NOGO - 7/
Email Express Quote

*Please choose GO or NOGO Member


  • Checks the GO and NOGO inspection of a hole with one insertion of the gage
  • Single end gage having GO and NO GO members stepped on a single gage
  • Parts can be inspected quickly with a progressive plug gage
  • Progressive trilock plug gages are available in Class XX, X, Y and Z
  • Precision hand lapped to a 3 micro inch finish to provide superior accuracy and optimum finish
  • Manufactured to the high end of the ANSI specifications to provide maximum wearability
  • Final inspection of gages is completed in an environmentally controlled ISO 17025 laboratory
  • Designed for size ranges from 1.510" to 4.510" (38.35 mm - 114.55 mm)
  • Progressive trilock plug gages are available in steel and chrome
  • Free NIST certificate of accuracy

partPTRCI-XX05
classXX
memberGO-/-NOGO
Size Range3.5101-4.010
MeasureInch
materialChrome
ADG length3-1/8
member Size NOGO - 7/
