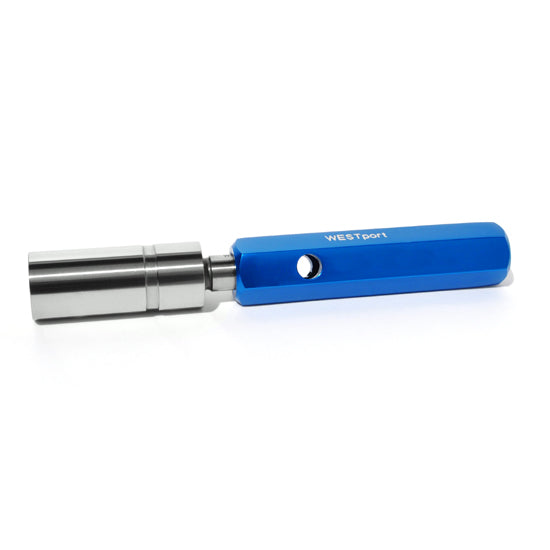

Progressive Taperlock Plug Gages - Metric - Steel - XX - 28.831-38.35 - GO / NOGO - 60.3 - GO - 38.1mm ; NOGO - 19.1m
Progressive Taperlock Plug Gages - Metric - Steel - XX - 28.831-38.35 - GO / NOGO - 60.3 - GO - 38.1mm ; NOGO - 19.1m
Regular price
$163.00
$147.00
Sale
Progressive Taperlock Plug Gages
Part# | PTLSM-XX07 |
class | XX |
member | GO-/-NOGO |
Size Range | 28.831-38.35 |
Measure | Metric |
material | Steel |
ADG length | 60.3 |
member Size | NOGO - 1 |
- Checks the GO and NOGO inspection of a hole with one insertion of the gage
- Single end gage having GO and NO GO members stepped on a single gage
- Parts can be inspected quickly
- Progressive taperlock plug gages are available in Class XX, X, Y and Z
- Precision hand lapped to a 3 micro inch finish to provide superior accuracy and optimum finish
- Manufactured to the high end of the ANSI specifications to provide maximum wearability
- Final inspection of gages is completed in an environmentally controlled ISO 17025 laboratory
- Designed for size ranges from .105" to 1.510" (2.67 mm - 38.35 mm)
- Progressive taperlock plug gages are available in steel and chrome
- Free NIST certificate of accuracy
part | PTLSM-XX07 |
class | XX |
member | GO-/-NOGO |
Size Range | 28.831-38.35 |
Measure | Metric |
material | Steel |
ADG length | 60.3 |
member Size | NOGO - 1 |
